GROUND MILLHOG® 1/2″ I.D. to 2-1/4″ O.D.

Ground MILLHOG®
Overall range .5in i.d. to 2.25in o.d. (12.7mm - 57.15mm)
Available with pneumatic, electric or battery powered motors

  The Ground MILLHOG® is ideal for tube beveling during boiler outages and can end prep all boiler tube materials. The critical width dimension is only 1.500in wide for accessing single tubes in a boiler tube waterwall and it can be equipped with a Membrane Removal Head for removing membrane from boiler tubes from .875in […]

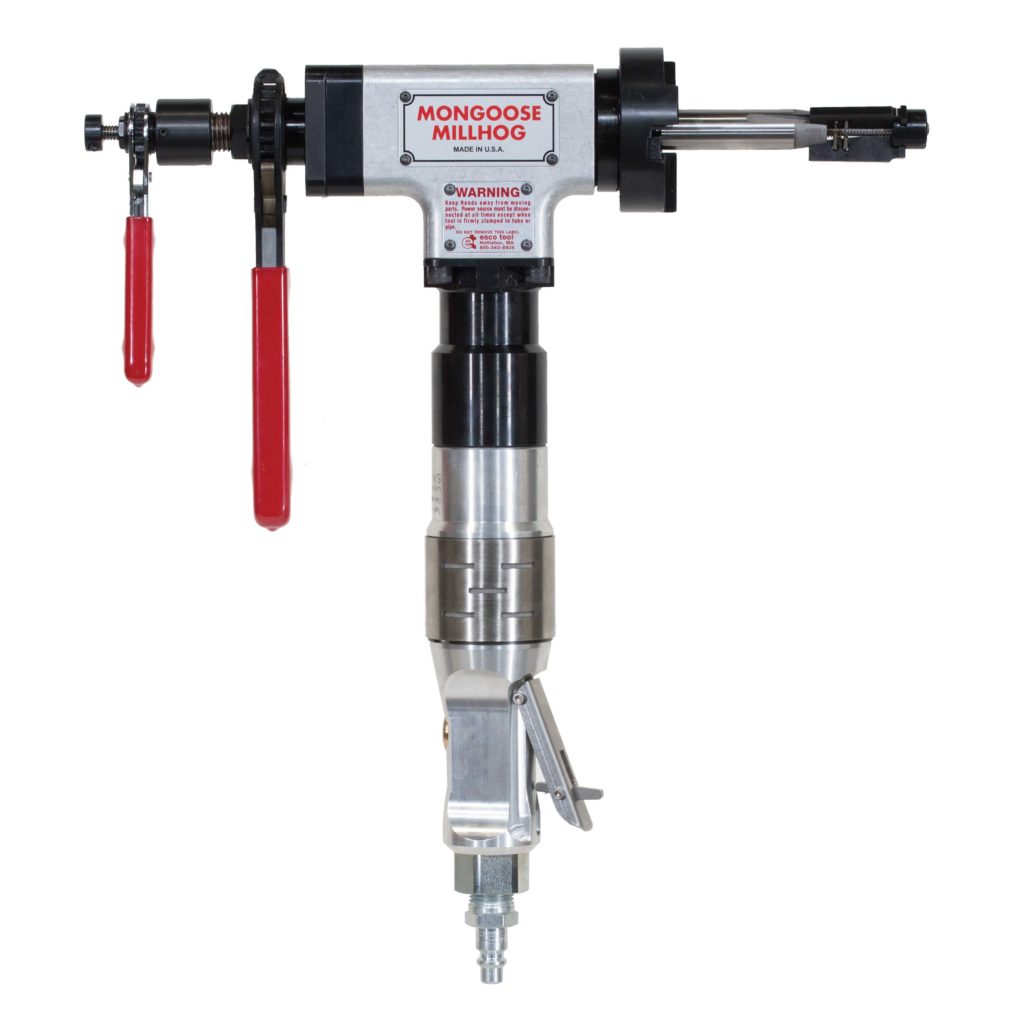

MONGOOSE MILLHOG STANDARD MODEL 5/8″ I.D. to 3″ O.D.

Powerful new motor keeps cutter blades running cool.

The Mongoose is ideal for beveling all boiler tube alloys and is only 2.250in wide for accessing single tubes in a boiler tube waterwall. It can also be equipped with a boiler tube membrane removal head that removes membrane from between boiler tubes or a boiler tube overlay removal head that removes membrane as well as […]

C-HOG MILLHOG O.D. CLAMP TUBE BEVELING MACHINE UP TO 3″ O.D.

C-Hog Profile croped 2

The C-Hog is a “C” shaped pipe and tube beveling tool that firmly attaches to the o.d. using a large solid clamp that minimizes chatter and vibration. This allows the tool’s cutting blade to get under the material, pull a thick chip and end prep the hardest alloys quickly.Designed for maximum comfort, efficiency, safety and […]

TUBE WEASEL MILLHOG STANDARD 3/4″ I.D. to 3″ O.D.

Tube Weasel Web web

The Tube Weasel beveling tool is ideal for end prepping all boiler tube materials and is only 3in wide for accessing single tubes in a boiler tube waterwall (Dutchman). The rugged gear drive is the same one we use in the Wart MILLHOG® and driven by a 2/3hp motor for efficient shop and field use. […]

WART MILLHOG BOILER TUBE BEVELER 3/4″ I.D. to 4-1/2″ O.D.

Wart shown with 2-58in wide Cutterhead for single tube repair on boiler tube water wall

The Wart I.D. Clamping beveling tool is ideal for scarfing all boiler tube materials and is only 2.625in wide for accessing single tubes in a boiler tube waterwall. The powerful 1.25hp motor, coupled to its heavy duty gear case is the backbone of its ability to satisfy a wide variety of applications and has made […]

MINI MILLHOG PIPE BEVELING MACHINE – 1-1/4″ I.D. to 6-5/8″ O.D.

Mini MILLHOG 1-1/4in I.D. to 6 5/8in O.D. available with a pneumatic or electric motor.

The Mini MILLHOG® pipe beveling machine delivers a lot of punch in a small light package that is easy to handle. The standard range is 1.800in I.D. to 6.625in O.D. and can be increased with the optional 1.250in Mandrel. It is available with a rugged 1.25hp pneumatic motor or 1800 watt electric motor that connect to a large driven […]

PREPZILLA MILLHOG® PIPE BEVELING MACHINE 1.575″ I.D. to 8-5/8″ O.D.

Only eight sts of clamps to cover the entire range.

Typekit Config The PrepZilla’s MILLHOG® powerful 2hp pneumatic or 1800 watt electric motor and tough gear reduction create a perfect combination of speed and torque. Both the pneumatic and electric drives deliver plenty of power and can perform any angle of end prep on all types of pipe and tube alloy including P-91 and Super Duplex. Eight […]

COMMANDER MILLHOG PIPE BEVELING TOOL 3-3/4″ I.D. to 14″ O.D.

Commander cropped for web

The Commander MILLHOG® pipe beveling tool is an excellent choice for end prepping all types of pipe alloy in the shop or on the jobsite. Oversize dual opposed tapered roller bearings combined with its sturdy gear drive give it the stability to perform compound end preps with formed tool bits on pipe wall thickness in […]

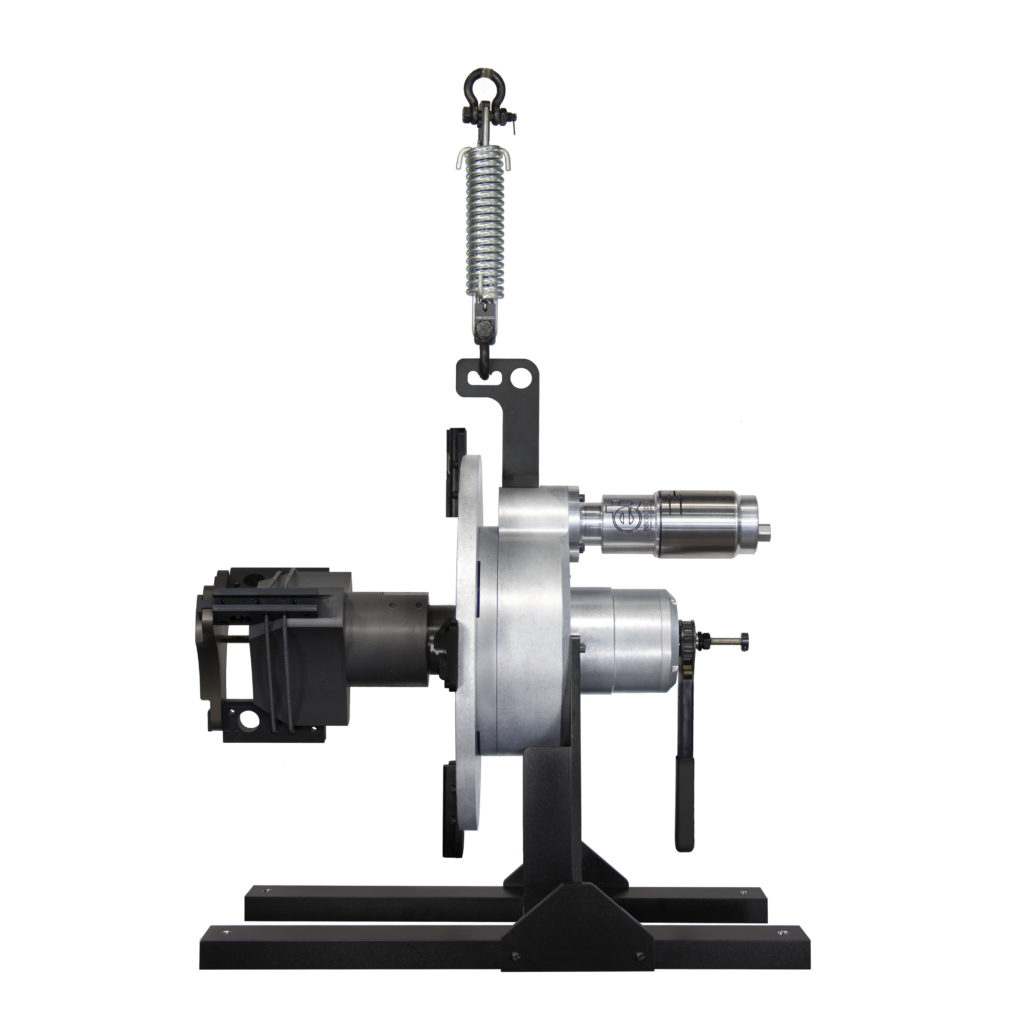

DICTATOR MILLHOG® PIPE BEVELING TOOL 4-1/2″ I.D. to 18″ O.D.

DICTATOR Wide Clamp Merged 8 copy

The Dictator MILLHOG® bevels pipe at any angle on wall thickness in excess of 1.75in using formed Cutter Blades. Like all Millhogs the Dictator runs smooth and is made to last. The Gear Head housing is made of aircraft quality aluminum and contains a huge driven gear that is supported by two oversized tapered roller […]

TERMINATOR MILLHOG® PIPE BEVELING MACHINE 8-5/8″ I.D. to 36″ O.D.

Terminator JPEG_1 (1)

The “Terminator” MILLHOG® is a powerful, easy to use ID clamping beveling machine capable of performing precision end preps on pipe of all alloys including Super Duplex and has a working range of 8-5/8” ID to 36” OD pipe.A powerful 5 h.p. pneumatic motor or available hydraulic motor provide smooth quite operation and are easily […]

HHB-5000 HIGH SPEED END PREP BEVELING TOOL .450″ I.D. to 2-1/4″ O.D.

Esco HHB 5000 copy

The 1-1/4hp HHB-5000 straight drive High Speed Hand Held Beveler produces beveled tube ends in seconds on a wide variety of tube and pipe from .450in I.D. to 2.250in O.D. that are ready to be welded. Set-up is quick and no clamping is necessary, the I.D. Locating Pilot quickly aligns the tool and its Inserts […]

HHB-10000 HIGH SPEED END PREP BEVELING TOOL .450″ I.D. to 4″ O.D.

HHB-5000RA Kit Sized For jpg

The 3hp HHB-10000 straight drive high speed hand held tube and pipe beveler produces beveled tube ends in seconds on a wide variety of tube and pipe from .450in I.D. to 4in O.D. that are ready to be welded. Set-up is quick and no clamping is necessary, the I.D. Locating Pilot quickly aligns the tool […]

FH-200 FIN REMOVAL TOOL 1-1/4″ I.D. to 3″ O.D.

FIN HOG WEB copy

The Fin Removal Tool removes 4in of spiral fin from the tube O.D. in just a couple of minutes. The important things to note when ordering are the tube O.D. and the direction of the fin rotation. Think of it as a bolt, which way would a nut thread on, left handed or right handed? […]

Air Powered Saw APS-438 Standard Saw with 5ft Track

APS on Boiler tube panel_0

Quick set-up and fast straight cuts with no HAZ are what MILLHOG® Air Powered Saw Kits are all about and this kit is equipped to do it well during water tube boiler outages when replacing tube panels. The APS-200A Air Powered Saw Kit includes all that’s needed to cut boiler tube water wall panels. Its […]

Air Powered Saw APS-438 Low Profile Saw with 5ft Track

14126 LP SAW ON WATERWALL NB jpg_0

APS-438LP requires only 7.500in clearance and is a popular choice during boiler outages when cutting pendant tubes and waterwall tubes with limited access. The kit includes all that’s needed and is easy to use. The five foot Track is easily mounted and relocated along the cut line with three reusable Weld Tabs. The 3/4″ air […]

Air Powered Saw APS-438 with Trolley

Quick Clamp APS-438 Saw

Quick set-up and fast straight cuts with no HAZ are what MILLHOG® Air Powered Saw Kits are about and this kit is equipped to do it well on pipe from 6in to 60in. The APS-200C Kit includes a Pipe Trolley that attaches to the wide selection of available WrapTracks and the Air Powered Saw is […]

Air Powered Saw APS-438 Low Radial Clearance

LTC horizontal jpg

Quick set-up and fast straight cuts with no HAZ are what MILLHOG® Air Powered Saw Kits are about and this one is equipped to do it well on pipe from 6in to 60in. on pipe with space restrictions. The APS-LRC Low Radial Clearance Air Powered Saw Kit utilizes a Pipe Trolley and Air Powered Saw […]

Air Powered Saw APS-438 SAW WITH 6FT FLEX TRACK

APS FLEX TRACK copy

Quick set-up and fast straight cuts with no HAZ are what MILLHOG® Air Powered Saw Kits are all about and this kit is equipped to do it well on warped boiler tube panels, contoured and serpentine structures.

Rolling Motors and Tube Expanders

Lever Throttle, Throttle and Trigger Rolling Motors jpg copy

MILLHOG® Rolling Motors and Tube Expanders for fabricating and maintaining boilers, heat exchangers and condensers. MILLHOG® Rolling Motor Features Quickly, automatically and accurately control tube expansion Precise, consistent tube wall reduction Tight tube joints Torque Control helps prevent over/under expansion Pneumatically powered Right angle models available for tight, restricted areas Many models available for rent […]

125CSTEOU – ORIFICE UNIONS

Orifice Union Picture_0

For Precise regulation of process flow, specific pressure drop and low pressure blanking applications. Orifice Unions are available in Carbon or Stainless Steel in sizes from .25in to 2in and with the choice of Threaded or Socket Weld Ends. Orifice Plates are made of 316 Stainless Steel can be furnished blank or drilled, reamed and […]

HHB 5000 Right Angle .450″ I.D. to 2-1/4″ O.D.

Pilots

The 1.5hp HHB-5000 RA Right Angle High Speed Hand Held Beveler produces beveled tube ends in seconds on a wide variety of tube and pipe from .450in I.D. to 2.250in O.D. that are ready to be welded. Set-up is quick and no clamping is necessary, the I.D. Locating Pilot quickly aligns the tool and its […]

HHB 10,000 .450″ I.D. to 4″ O.D.

The 3hp HHB-10000 RA Right Angle High Speed Hand Held Beveler produces beveled tube ends in seconds on a wide variety of tube and pipe from .450in I.D. to 4in O.D. that are ready to be welded. Set-up is quick and no clamping is necessary, the I.D. Locating Pilot quickly aligns the tool and its […]
