.45″ I.D. – 2.25″ O.D.
11.4mm I.D. – 57.2mm O.D.
MILLHOG SERIES:
High Speed HHB-5000

HHB-5000

Red-MILLHOG_Transp-MILL-(1)

I.D. GUIDED, HIGH-SPEED
TUBE & PIPE BEVELING MACHINE

.45” I.D. - 2.25” O.D.
11.4mm I.D. - 57.2mm O.D.

HHB-5000 Millhog

0.45” I.D. - 2.25” O.D.
11.4mm I.D. - 57.2mm O.D.

Straight
Right Angle
Straight

Right Angle

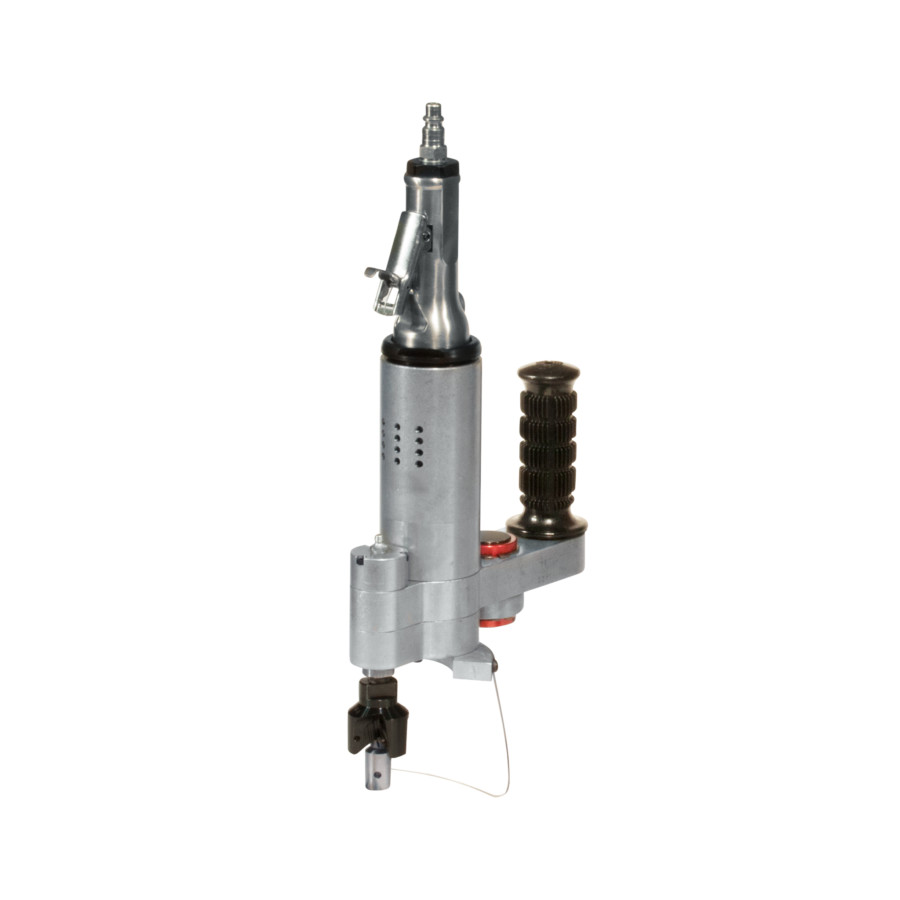

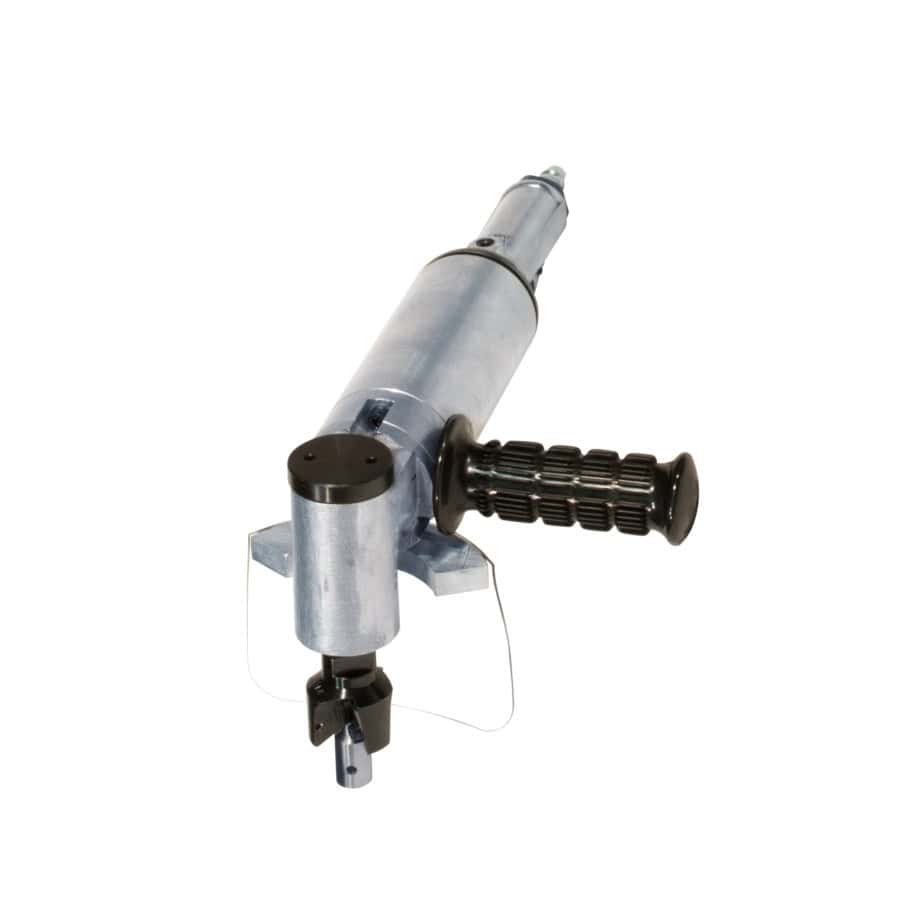

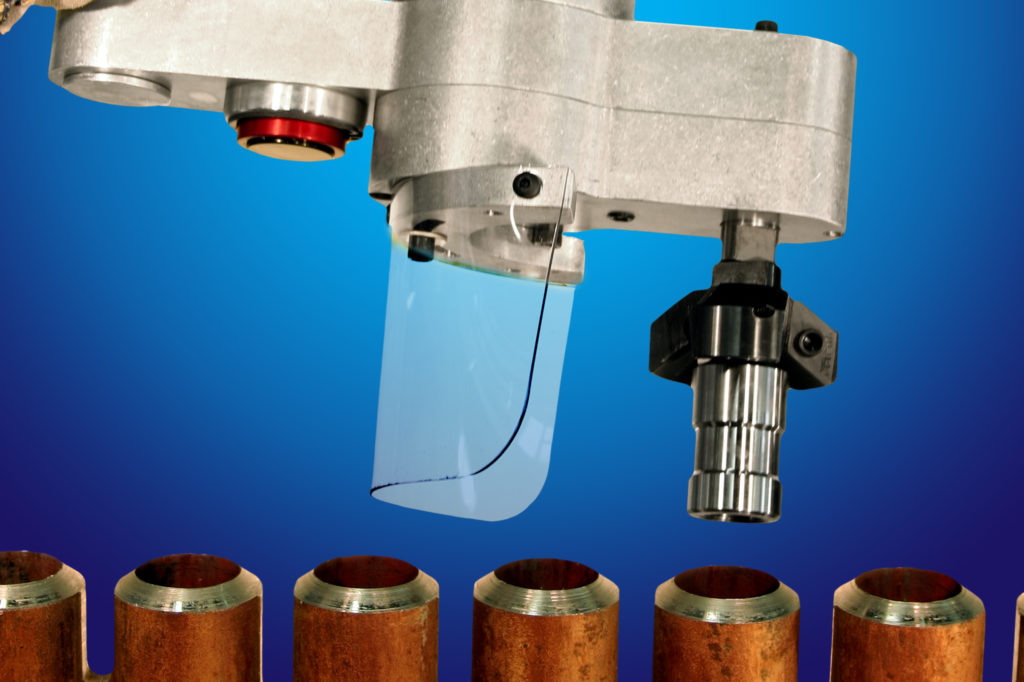

HHB-5000 MILLHOG

MILLHOG High speed tube bevelers feature a pilot locating system that automatically centers the tool on the tube. Simple to operate, just insert the pilot into the I.D., squeeze the throttle and finish your end prep completely in as fast as 3 seconds. The high speed cutting action creates no reaction torque, even if the tool is stalled. Straight models can be hand-held or used with the track chassis and post assembly. With this option bevel height is controlled with the adjustable depth stop and ensures all bevels are exactly the same height, saving valuable fit-up time. Right angle models are ideal for applications with height restrictions.

Available Kits

Standard

HHB-5000 MILLHOG Standard Kit #: 50-200

(1) High speed air motor
(1) Offset gear drive or right angle gear drive (specify)
(1) Chip shield
(1) Chip guard bracket
(1) 1/2" hose w/ filter, oiler & 3/8" coupler
(1) Carrying case
(1) Operating and maintenance inst.

Rental

Rental tool kits are setup and packaged to meet your specific job/application. This makes it so your tool is ready to go and only has parts necessary for your job, avoiding confusion and minimizing shipping costs.

  • Features
  • Specs
  • Accessories
  • Photos
  • Videos
  • Resources

FEATURES

  • Bevels tubes in seconds
  • Hand held or track mountable with adjustable depth stop ensures uniform beveled tube ends
  • Pilot automatically locates and centers tool on pipe or tube I.D.
  • No clamping and no torque reaction to operator
  • Cutter blades have multiple cutting edges and require no fluids
  • Straight and right angle models
  • Tooling is interchangeable with all high speed models (including HHB-10000)
  • Fast, accurate and easy to use
  • Field proven, tough and boilermaker approved

SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range 0.45" I.D. - 2.25" O.D.
Blade Series HHB Inserts
Min. Width 1.5"
Straight Right Angle
1.5 hp 1.5 hp
90 psi 90 psi
50 cfm 50 cfm
Cutterhead Speed 5,000 rpm 5,000 rpm
Working Weight 9 lbs 8 lbs
Shipping Weight 40 lbs 40 lbs
Shipping Dimensions 27" x 18" x 7" 27" x 18" x 7"
METRIC
Working Range 11.4mm I.D. - 57.2mm O.D.
Blade Series HHB Inserts
Min. Width 38.1mm
Pneumatic Right Angle
1119 W 1119 W
6.2 bar 6.2 bar
1416 Lt/min 1416 Lt/min
Cutterhead Speed 5,000 rpm 5,000 rpm
Working Weight 4.1 kgs 3.6 kgs
Shipping Weight 18.1 kgs 18.1 kgs
Shipping Dimensions 666mm x 457mm x 177mm 666mm x 457mm x 177mm

ACCESSORIES

Track Post
Track Post

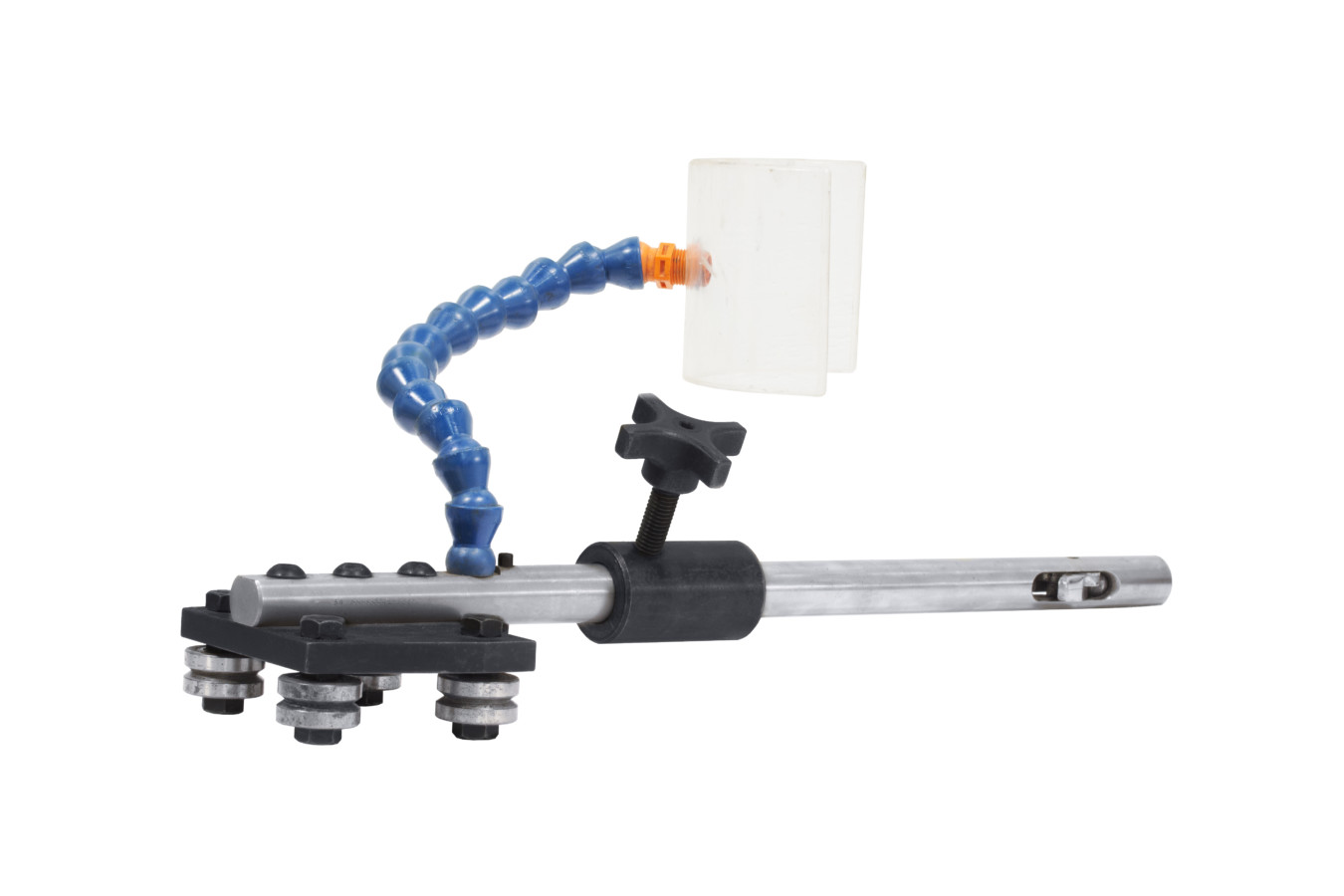

Track Chassis and Post Assembly Part #: 1050-83

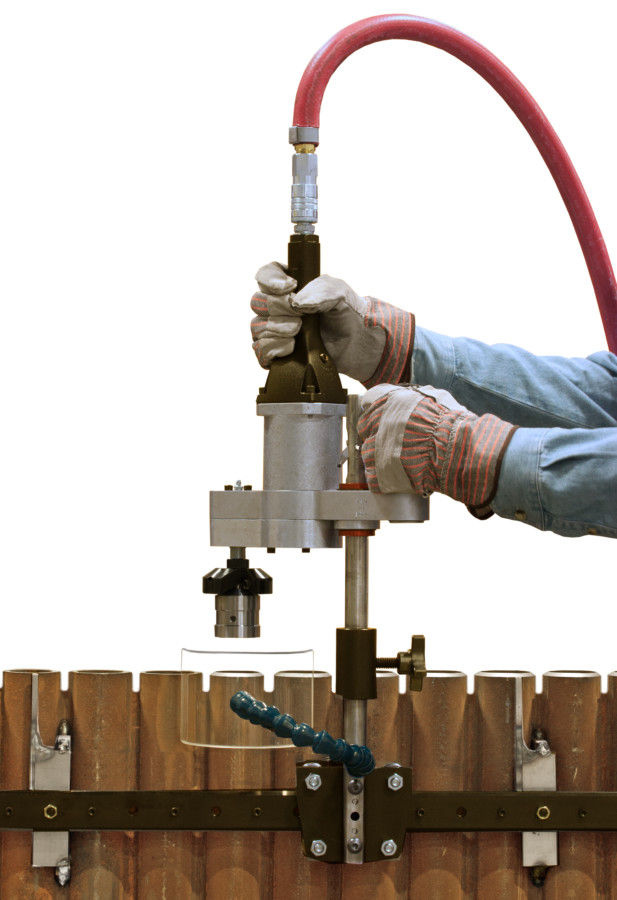

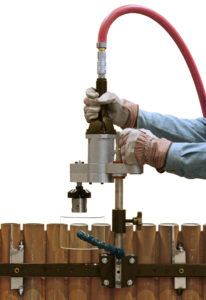

The Track Chassis and Post Assembly allows the HHB-5000 and the HHB-10000 to ride along the saw track that is used for cutting panels and membrane. This accessory features a wing-lock system to keep the tool safely secured to the post, while still allowing for necessary movement as well an adjustable chip guard to keep chips away from the operator. Track Chassis and Post Assemblies are most commonly used in conjunction with the saw, so tracks are not included with this kit.

Includes

(1) Track chassis and post assembly complete

Photos

RESOURCES

Charts

CUTTERHEAD CHART - HHB-5000 MILLHOG
Cutterhead Part # Insert Size Max Tube O.D. Min Tube I.D. Cutterhead Size
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
1050-01 0.5 12.7 1.25 31.8 0.45 11.4 1.6 40.64
1050-02 0.5 12.7 1.5 38.1 0.7 17.8 1.85 47
1050-03 0.625 15.9 1.75 44.5 0.7 17.8 2.1 53.34
1050-04 0.625 15.9 2.0 50.8 0.95 24.1 2.35 59.69
1050-05 0.625 15.9 2.25 57.2 1.2 30.5 2.6 66.04

Links

Inserts

Documents

Brochure
