1.125″ O.D. – 3.25″ O.D.
28.6mm O.D. – 82.6mm O.D.
HOG TIE SERIES



HOG TIE LOGO

TUBE ALIGNMENT CLAMPS

1.125” O.D. - 3.25” O.D.
28.6mm O.D. - 82.6mm O.D.

HOG TIE

1.125” O.D. - 3.25” O.D.
28.6mm O.D. - 82.6mm O.D.

Single Tube
Double Tube
Single Tube

Double Tube

HOG TIE

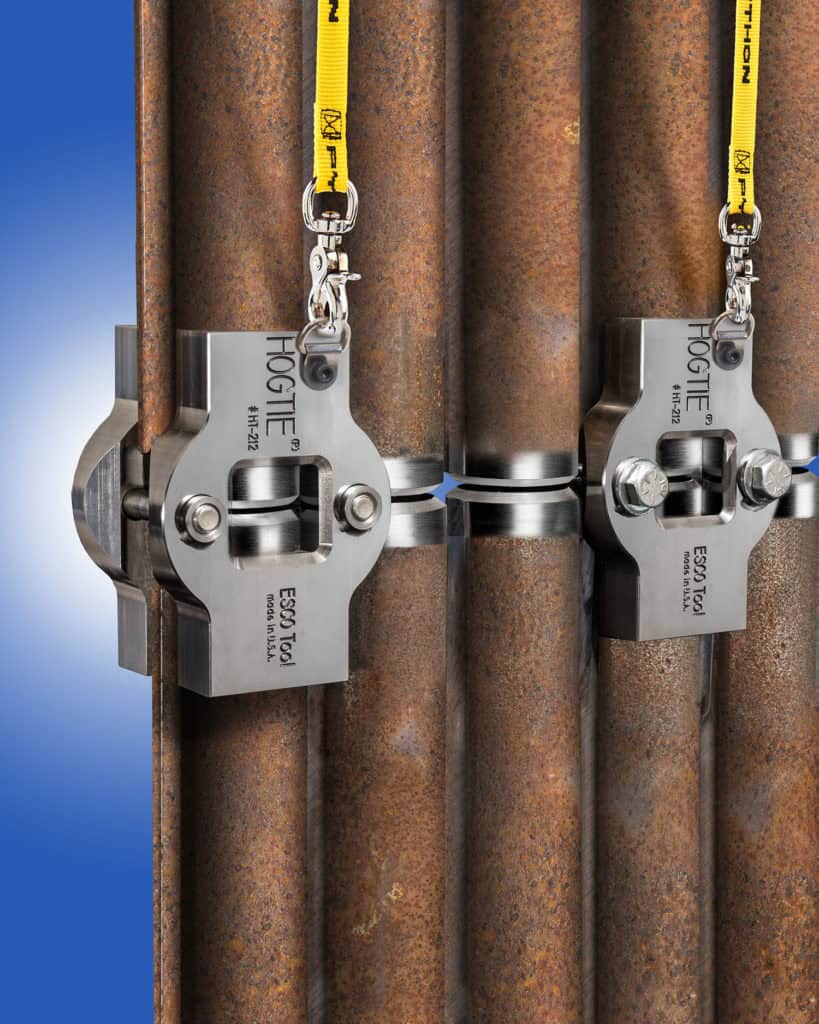

The Hog Tie boiler tube joint alignment tool speeds the welding process for boiler tube waterwall panel replacement by quickly and accurately aligning new boiler tube ends with existing  tubes in preparation for creating welded tube joints. Accurate tube alignment helps to make a better welded tube joint and reduces the risk of tube joint failure due to inaccurate alignment which saves time and money on costly boiler shut-down and re-work.

Available Kits

Standard

HOG TIE standard kit #: HTK-...

(see chart for size options and kit numbers)

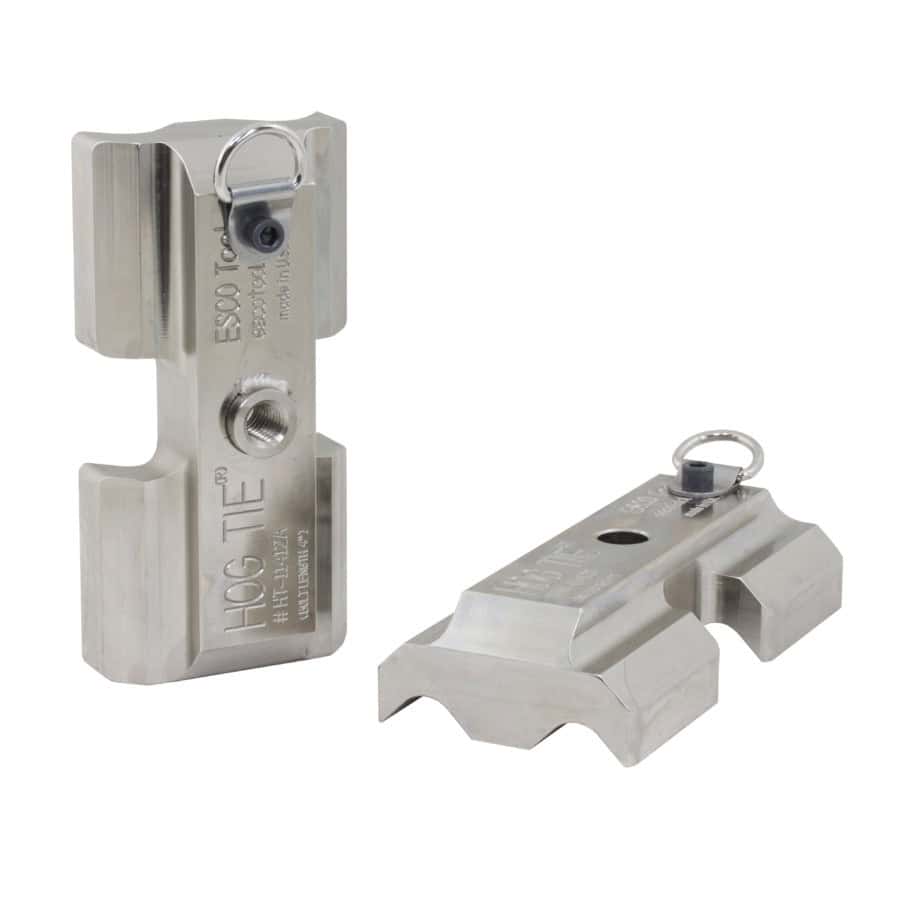

(1) Clamp half with threaded hole
(1) Clamp half with through hole
(1) Safety Lanyard
(1) Operating and maintenance inst.

Note:

Single Tube (double bolt) Hog Tie options add:
(4) Bolt with washer and cap (2 spare)
(2) Threaded Inserts (spare)

Double Tube (single bolt) Hog Tie options add:
(2) Bolt with washer and cap (1 spare)
(1) Threaded Insert (spare)

Standard with Impact

HOG TIE standard kit with Impact Driver #: HTKI-...

(See chart for size options and kit numbers)

(1) Clamp half with threaded hole
(1) Clamp half with through hole
(1) Safety Lanyard
(1) Operating and maintenance inst.
(1) 1/2" / 12.7mm drive impact tool
(1) 7/8" impact socket

Note:

Single Tube (double bolt) Hog Tie options add:
(4) Bolt with washer and cap (2 spare)
(2) Threaded Inserts (spare)

Double Tube (single bolt) Hog Tie options add:
(2) Bolt with washer and cap (1 spare)
(1) Threaded Insert (spare)

Rental

Rental kits for the Hog Ties are as the appear in the above options.

  • Key Features
  • Specifications
  • Gallery
  • Product Resources

FEATURES

  • Align tube ends quickly for tube joint tack welding
  • Ideal for waterwall, economizer, header, crossover, superheat, reheat, and generating tubes
  • Speeds boiler tube waterwall welding process
  • Reduces the risk of costly tube joint failure due to misalignment
  • Safety Lanyard easily connects clamp halves for fall protection
  • Made of high strength precision machined steel for long service
  • Replaceable threaded inserts
  • Available kits come with everything needed

SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range 1.125" O.D. to 3.25" (see chart for sizes)
Bolt head size 7/8"
Shipping Weight (1 set) 12 lbs
Shipping Weight (2 sets) 22 lbs
Shipping Weight w/ Impact 18 lbs
Shipping Dimensions 20" x 11" x 4"
METRIC
Working Range 28.6mm O.D. to 82.6mm (see chart for sizes)
Bolt head size 7/8"
Shipping Weight (1 set) 5.4 lbs
Shipping Weight (2 sets) 10.0 lbs
Shipping Weight w/ Impact 8.2 lbs
Shipping Dimensions 508mm x 279mm x 102mm

GALLERY

Videos

Hog Tie Demo

Waterwall Replacement

RESOURCES

Charts

Size Chart
Type Hog Tie Kit # Tube O.D. (in) Tube O.D. (mm) Membrane Note
Double Tube (Single Bolt) HTK-11812 1.125 28.6 0.5" / 12.7mm membrane
HTK-11412 1.250 31.75
HTK-13812 1.375 34.9
HTK-11212 1.500 38.1
Single Tube (Double Bolt) HTK-134 1.750 44.5 Minimum 0.5" / 12.7mm membrane
HTK-200 2.000 50.8
HTK-214 2.250 57.2
HTK-238 2.375 60.3
HTK-212 2.500 63.5
HTK-234 2.750 69.9
HTK-300 3.000 76.2
HTK-314 3.250 82.6
