FLANGE FACER | FLANGE HOG SERIES 110 | 1.0″ I.D. – 14.0″ O.D. 25.4MM I.D. – 355.6MM O.D.

110

FLANGEHOG LOGO Red

I.D. CLAMPING
MANUAL FLANGE FACER

1.0” I.D. - 14.0” O.D.
25.4mm I.D. - 355.6mm O.D.

FLANGE FACER | FLANGE HOG SERIES 110

1.0" I.D. - 14.0" O.D.
25.4mm I.D. - 355.6mm O.D.

Manual
Manual

See More Tools

THE FLANGE HOG 110 FLANGE FACER

The FLANGE HOG 110 is rugged, compact and ideal for quickly reconditioning rusty, scarred or worn flange gasket seats to like-new condition in minutes. This easy to operate flange facing tool is perfect for re-facing raised-face and flat-faced flanges on site or in a fabrication/repair shop. The FLANGE HOG 110 has a clamping range from 0.9" / 22.9mm to 10.3" / 261.6mm and can machine flanges with a reach up to 14" / 355.6mm O.D. The ESCO proprietary clamping system is simple to configure and designed for fast set up with accurate alignment. Cutting bits are double sided, long-lasting, and specially formed to cut through a wide variety of material including carbon steel, stainless steel, alloyed steel, aluminum and cast iron. Each tool kit comes ready to use in a sturdy carrying case that keeps everything conveniently organized and readily accessible.

Available Kits

Complete

FLANGE HOG 110 Complete Kit #: FL-110

(1) Housing, gear drive, feed assy (stock finish)
(1) Small wedge with Draw Rod and Actuator
(1) Large wedge with Draw Rod and Actuator
(1) Insert Holder, straight
(1) Insert Holder, double pocket
(10) Insert, 1/4"
(4) Insert screw
(6) Spring, 12" long
(6) Spring
(3) Clamp rib sets G-04 - G-06
(8) Clamp Rib sets H-01 - H-08
(1) Tool Post assembly
(1) Dial Indicator - Mag back
(1) Carrying case
(1) Operating and maintenance inst.

Rental

Rental tool kits are setup and packaged to meet your specific job/application. This makes it so your tool is ready to go and only has parts necessary for your job, avoiding confusion and minimizing shipping costs.

  • Features
  • Specs
  • Accessories
  • Photos
  • Videos
  • Resources

FEATURES OF THE FLANGE HOG SERIES 110 FLANGE FACING TOOL

  • Manually operated, no electrical, hydraulic, or air lines necessary
  • Smooth swing operation produces perfectly precise phonographic finish
  • Accurately mounts to the flange I.D. in seconds
  • Feeds available for both smooth and stock finish in accordance with ASME B-16.5 standards
  • Made of high strength precision machined materials
  • Sturdy storage/transport case for managing all components
  • Strong hardware that makes setup fast
  • Kit comes ready to use

FLANGE FACER SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range .9" I.D. - 14" O.D.
Stock Finish 250 - 500 μin
Smooth Finish (Optional) 125 - 250 μin
Drive Type Manual
Housing Width 5.3"
Housing Length 9.4"
Working Weight 15.4 lbs
Shipping Weight 42 lbs
Shipping Dimensions 20.5" x 9" x 17"
METRIC
Working Range 22.9mm I.D. - 355.6mm O.D.
Stock Finish 6.3 - 12.5 μm
Smooth Finish (Optional) 3.2 - 6.3 μm
Drive Type Manual
Housing Width 134.6mm
Housing Length 238.8mm
Working Weight 7kg
Shipping Weight 19.1 kg
Shipping Dimensions 521mm x 229mm x 432mm

ACCESSORIES

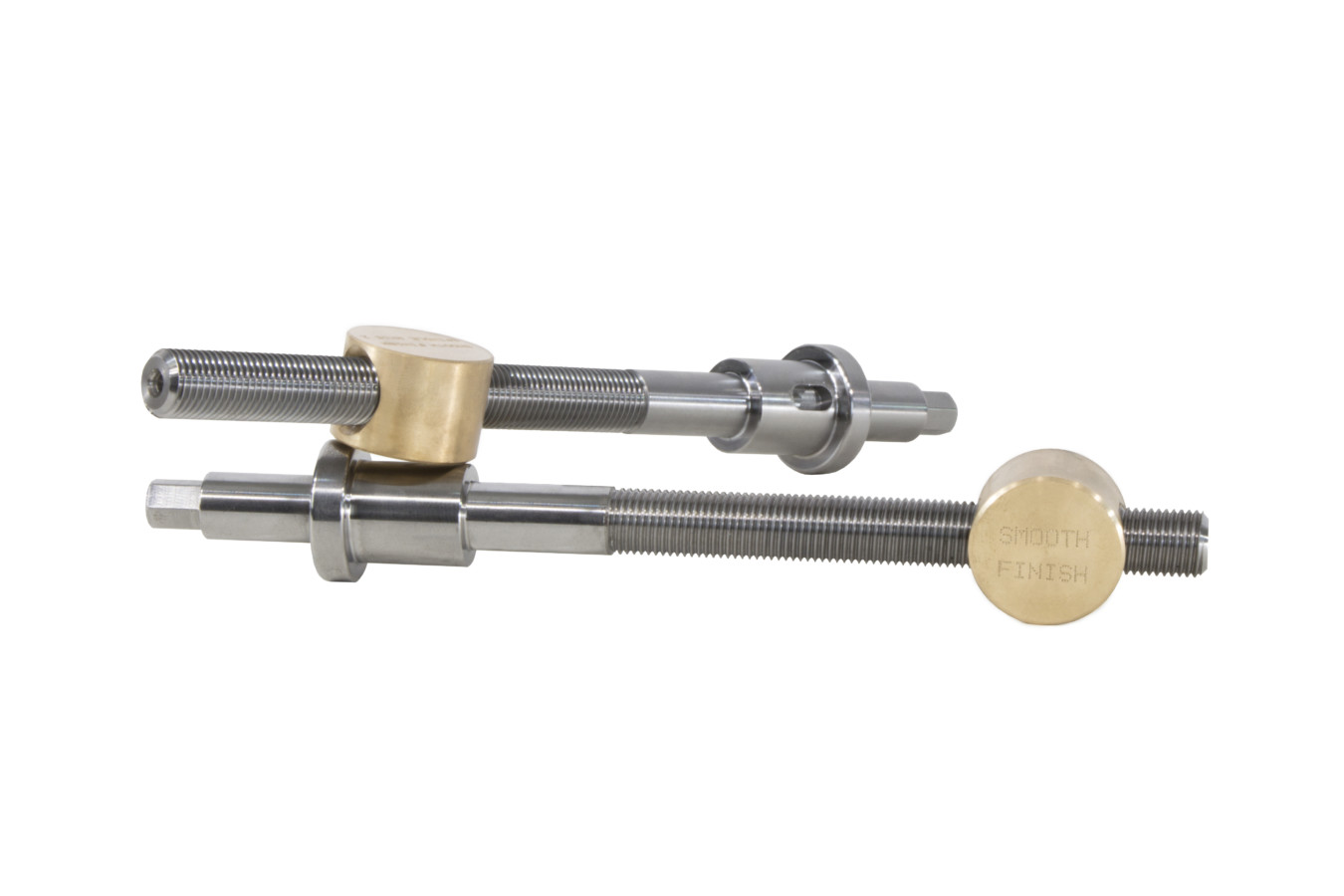

Smooth Feed
Smooth Feed

Smooth Feed Part #: FL-27 & FL-29

The Flange Hog 110 comes standard with a stock-finish feed shaft and nut but can be switched out for a smooth-finish feed. This smooth-finish will still appear to show machining marks but will face an average roughness of 125 - 250 μin / 3.2 - 6.3 μm.

Includes

(1) Smooth Shaft
(1) Smooth Nut

Photos

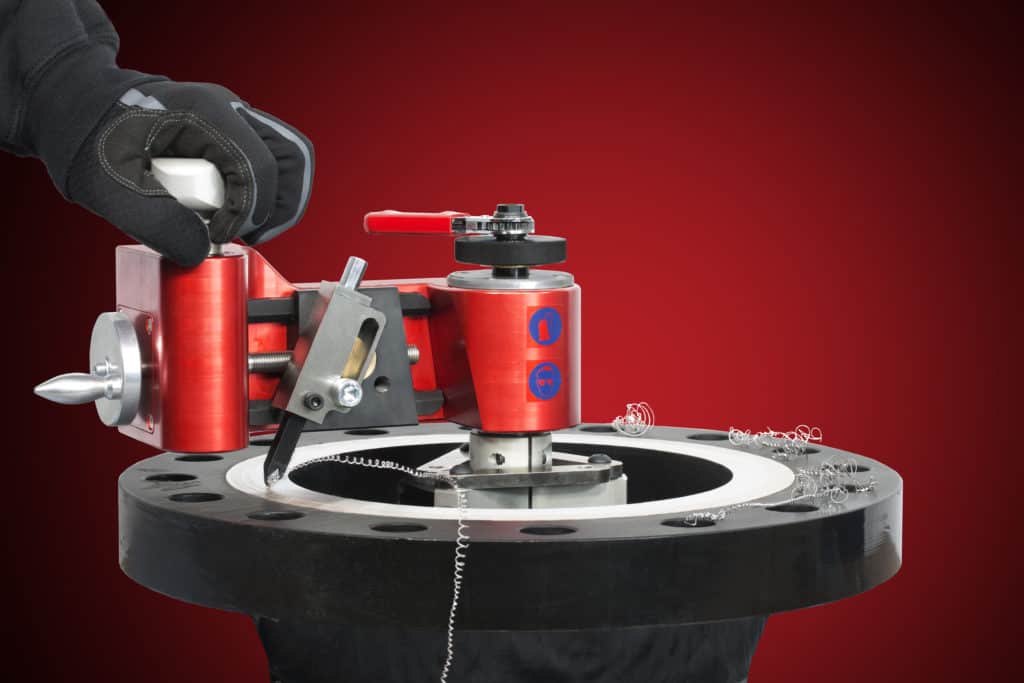

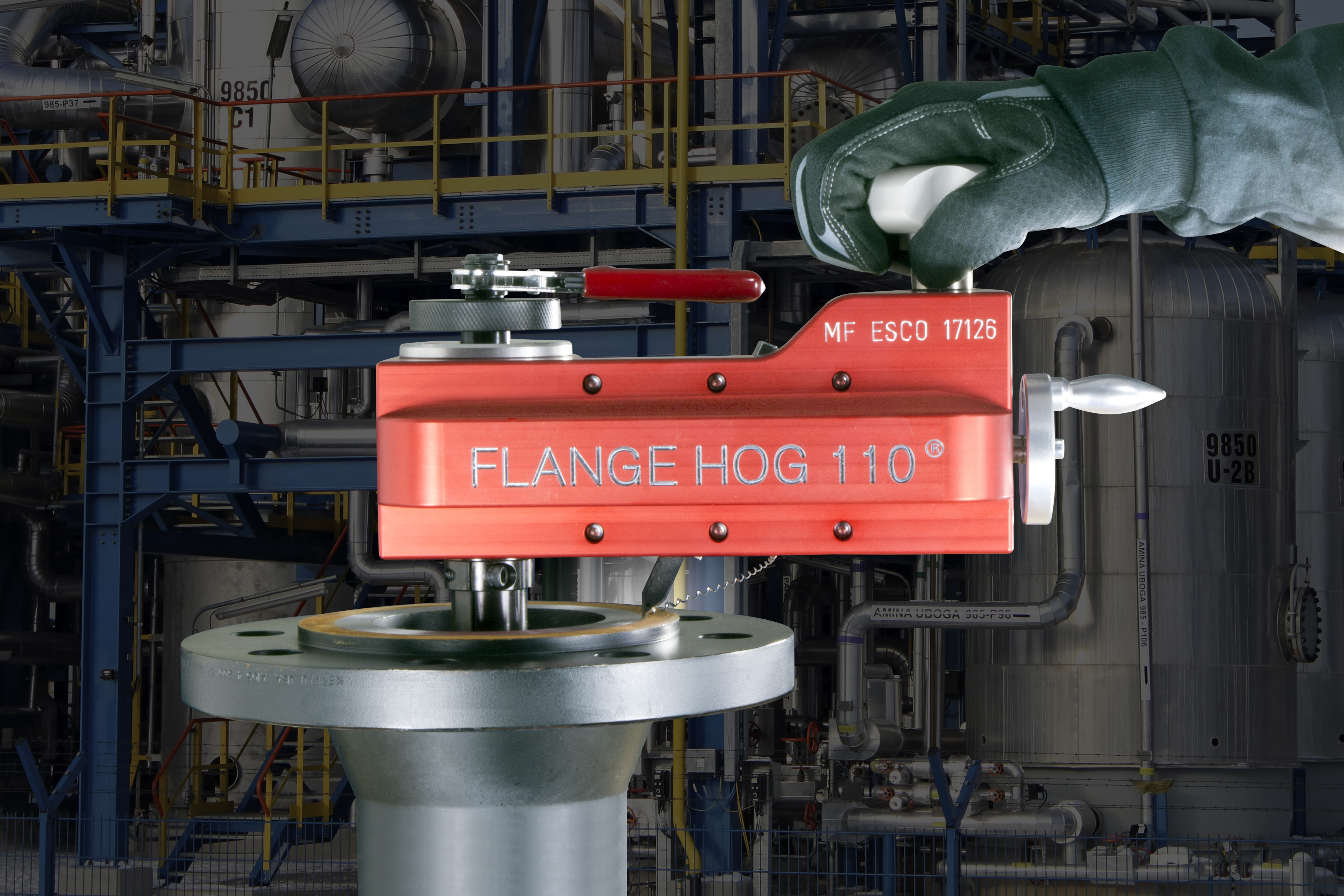

Flange facer, flange facing, re-facing flanges, reconditioning rusty, scarred or worn flange gasket seats

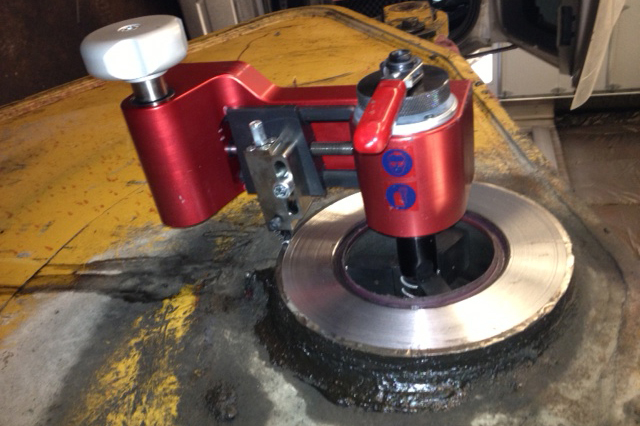

Flange facer, flange facing, re-facing flanges, reconditioning rusty, scarred or worn flange gasket seats

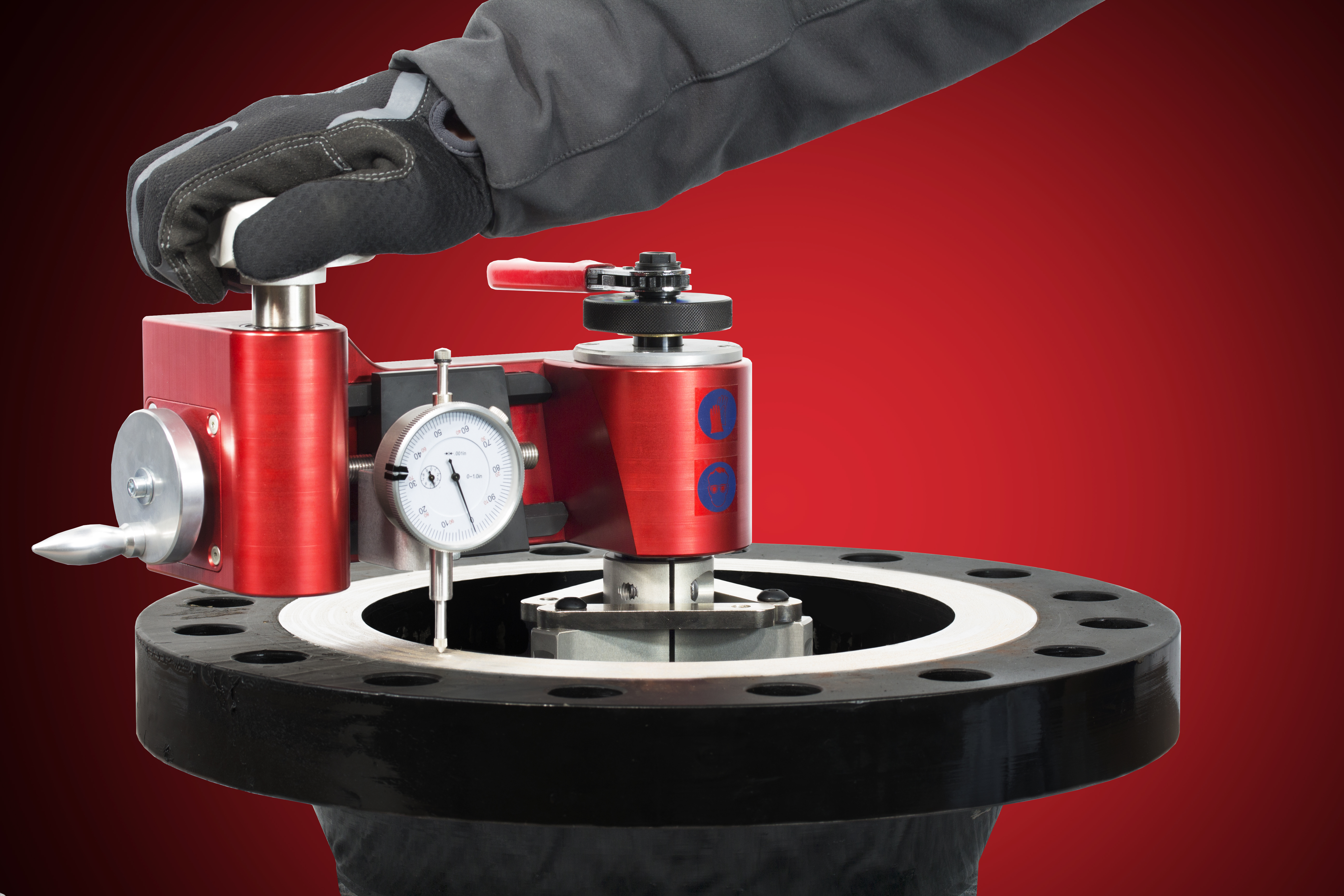

Flange facer, flange facing, re-facing flanges, reconditioning rusty, scarred or worn flange gasket seats

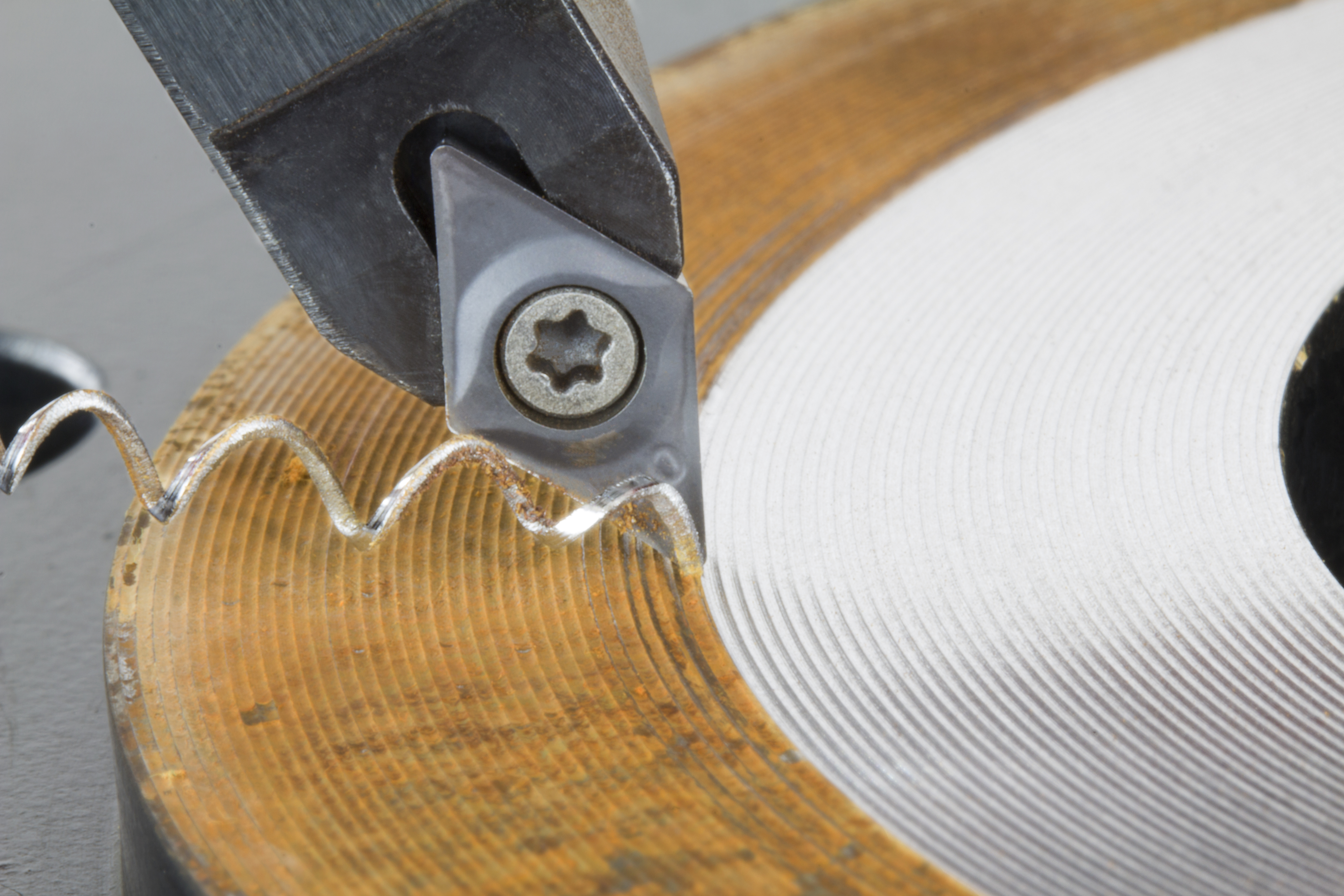

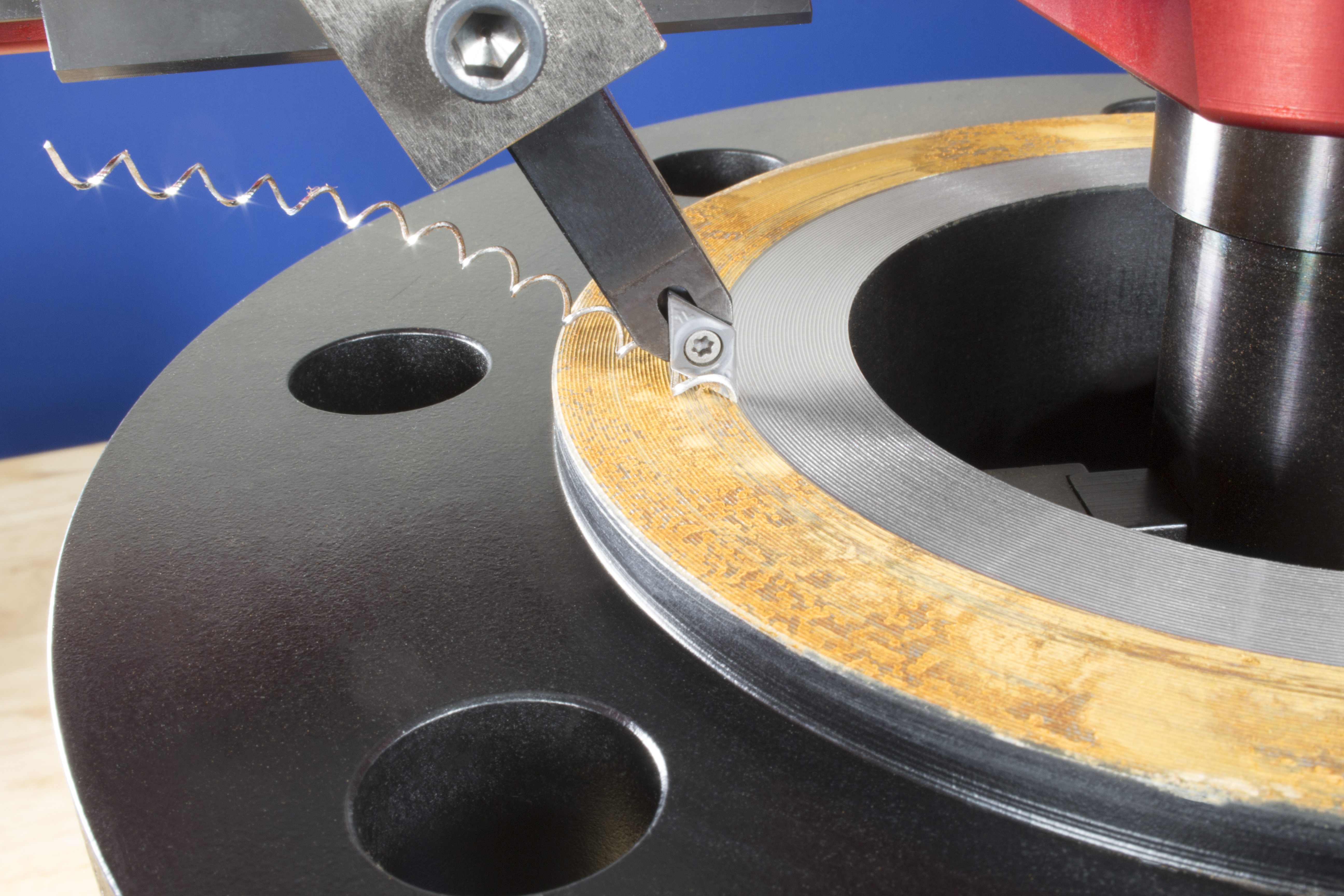

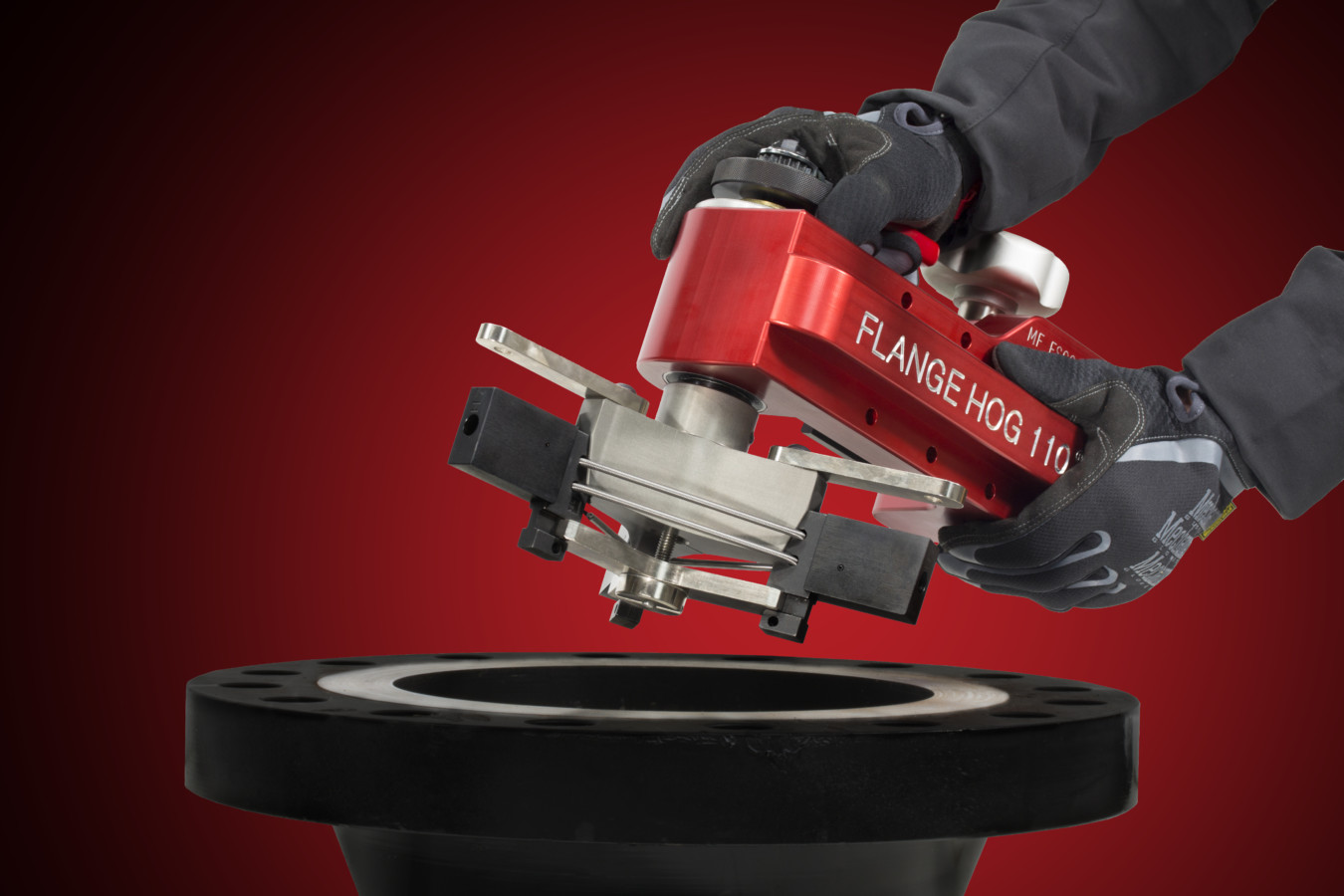

Flange facer, flange facing, re-facing flanges, reconditioning rusty, scarred or worn flange gasket seats

SEE THE FLANGE HOG IN ACTION

Flange Hog Overview

Demonstration 2" and 10" Flanges

RESOURCES

Flange Facing Charts

CLAMP RIB CHART - FLANGE HOG 110
Wedge Clamp Rib Set I.D. Range (in) I.D. Range (mm)
No Wedge G-04 0.90 - 1.09 22.73 - 27.79
G-05 1.02 - 1.22 25.78 - 30.89
G-06 1.12 - 1.34 28.91 - 34.01
Small Wedge H-01 1.32 - 1.63 33.40 - 41.38
H-02 1.52 - 1.94 38.63 - 49.28
H-03 1.83 - 2.26 46.43 - 57.30
H-04 2.15 - 2.58 54.56 - 65.41
H-02 & H-05 2.46 - 2.88 62.59 - 73.23
H-03 & H-05 2.78 - 3.20 70.51 - 81.26
H-04 & h-05 3.09 - 3.51 78.51 - 89.33
H-02 & H-08 3.41 - 3.83 86.49 - 97.36
H-03 & H-08 3.72 - 4.15 94.59 - 105.59
H-04 & H-08 4.04 - 4.47 102.72 - 113.64
H-02 & H-06 4.36 - 4.80 110.85 - 121.82
H-03 & H-06 4.69 - 5.12 119.02 - 130.00
H-04 & H-06 5.01 - 5.44 127.20 - 138.20
Large Wedge H-01 5.30 - 5.57 134.62 - 141.58
H-02 5.40 - 5.90 137.84 - 149.76
H-03 5.72 - 6.22 145.34 - 158.01
H-04 6.05 - 6.55 153.59 - 166.27
H-02 & H-05 6.33 - 6.83 160.76 - 173.38
H-03 & H-05 6.65 - 7.15 168.96 - 181.84
H-04 & h-05 6.98 - 7.48 177.19 - 189.87
H-02 & H-08 7.30 - 7.80 185.37 - 198.01
H-03 & H-08 7.62 - 8.12 193.60 - 206.27
H-04 & H-08 7.95 - 8.45 201.83 - 214.53
H-02 & H-06 8.27 - 8.77 210.06 - 222.73
H-03 & H-06 8.60 - 9.09 218.31 - 230.99
H-04 & H-06 8.92 - 9.42 226.57 - 239.24
H-02 & H-07 9.24 - 9.74 234.75 - 247.42
H-03 & H-07 9.57 - 10.07 243.00 - 255.70
H-04 & H-07 9.89 - 10.39 251.26 - 263.93

Links

Inserts

Documents

Brochure

Esco Tool Company

75 October Hill Rd.
Holliston, MA 01746
United States

Contact Us

INT+1 (508) 429-4441
DOM (800) 343-6926
FAX (508) 429-2811
EMAIL millhog@escotool.com

Catalog Download
