M-Series Blades

Assorted M-Series

M-Series Blades

M-Series blades are designed to fit cutterheads for the Wart, Mini, Prepzilla, Commander, Dictator, Dictator II, and Terminator MILLHOG beveling machines. Blades found on this page are regularly stocked in our warehouse and are TiN coated for extended blade life or Hard Lube coated for superior heat resistance.

CUSTOM BLADE OPTIONS:

If your bevel requires dimensions other than the blades on this page our factory will grind blades to your exact specifications. Custom cutting blades are a common request but can vary in lead time so please contact our factory for clarification.

Bevel Blades

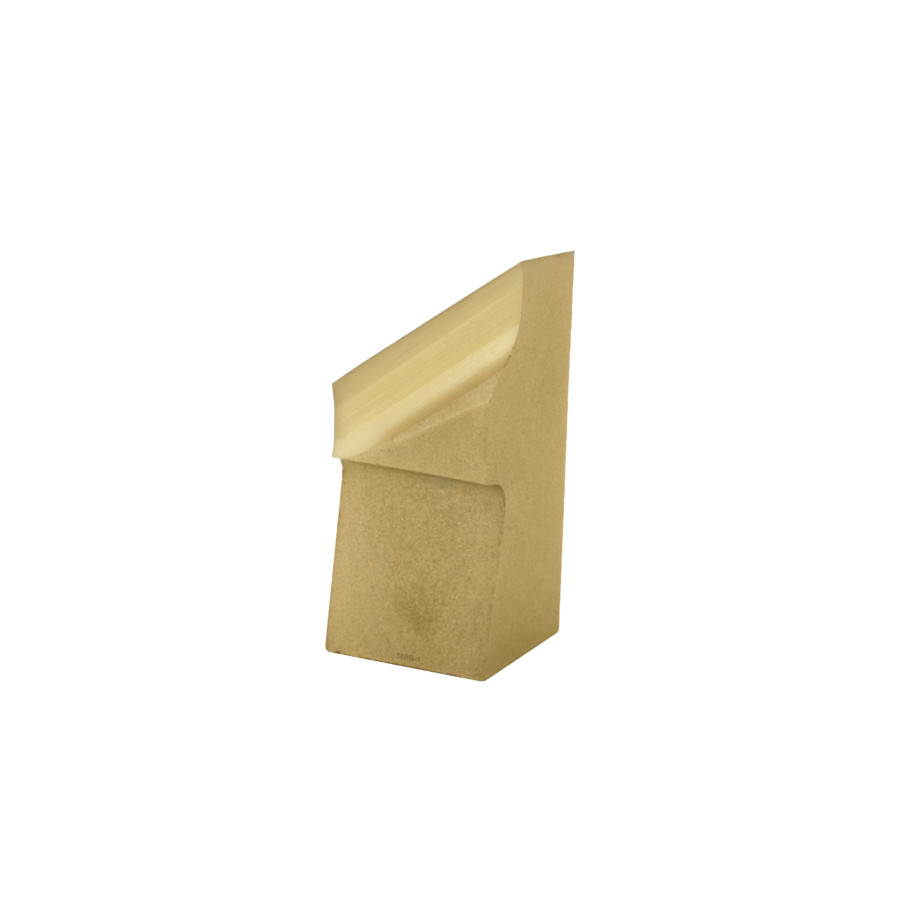

MBB-1
37-1/2° Bevel Blade TiN
1/2” / 12.7mm wide

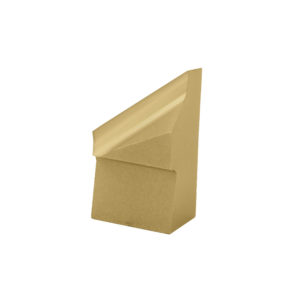

MBB-2
37-1/2° Bevel Blade TiN
3/4" / 19.1mm wide

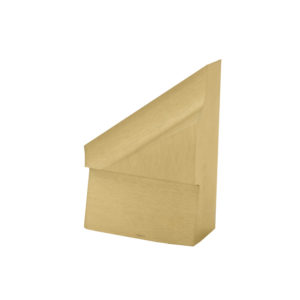

MBB-3
37-1/2° Bevel Blade TiN
1" / 25.4mm wide

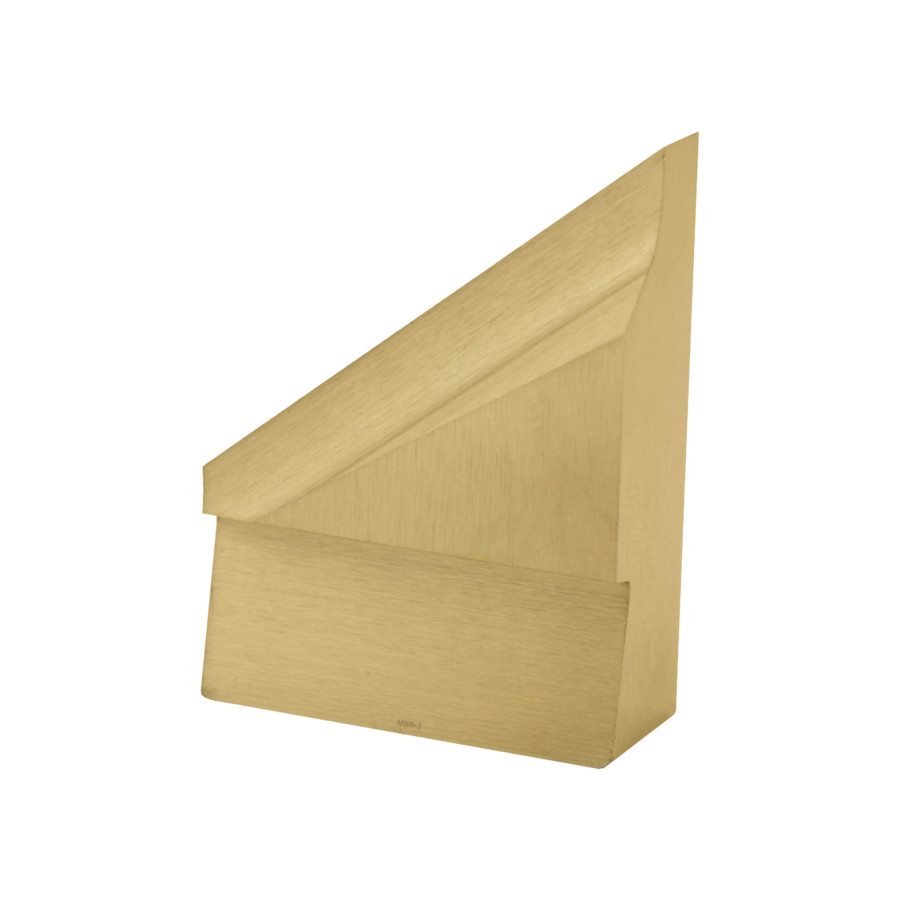

MBB-4
37-1/2° Bevel Blade TiN
1-1/4" / 31.8mm wide

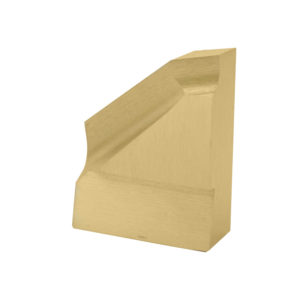

MBB-5
37-1/2° x 10° Compound Bevel Blade TiN
1-1/4" / 31.8mm wide

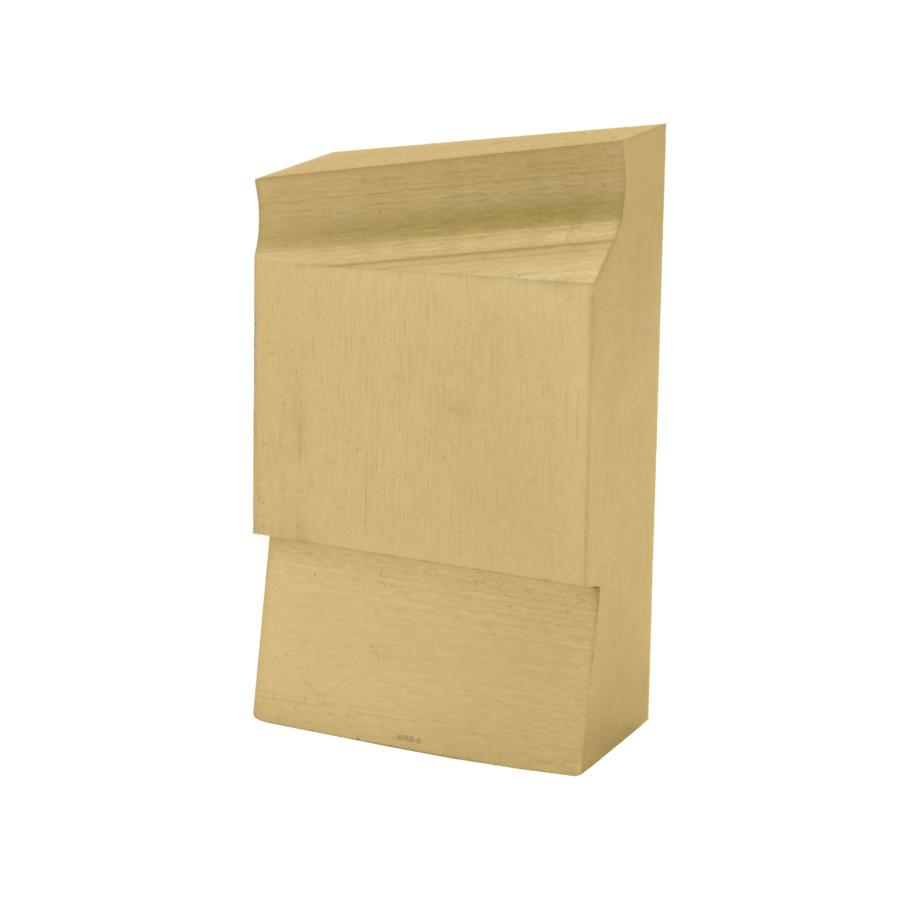

MBB-6
10° Bevel Blade TiN
1" / 25.4mm wide

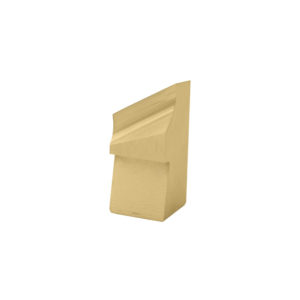

MBB-7
30° Bevel Blade TiN
1/2" /. 12.7mm wide

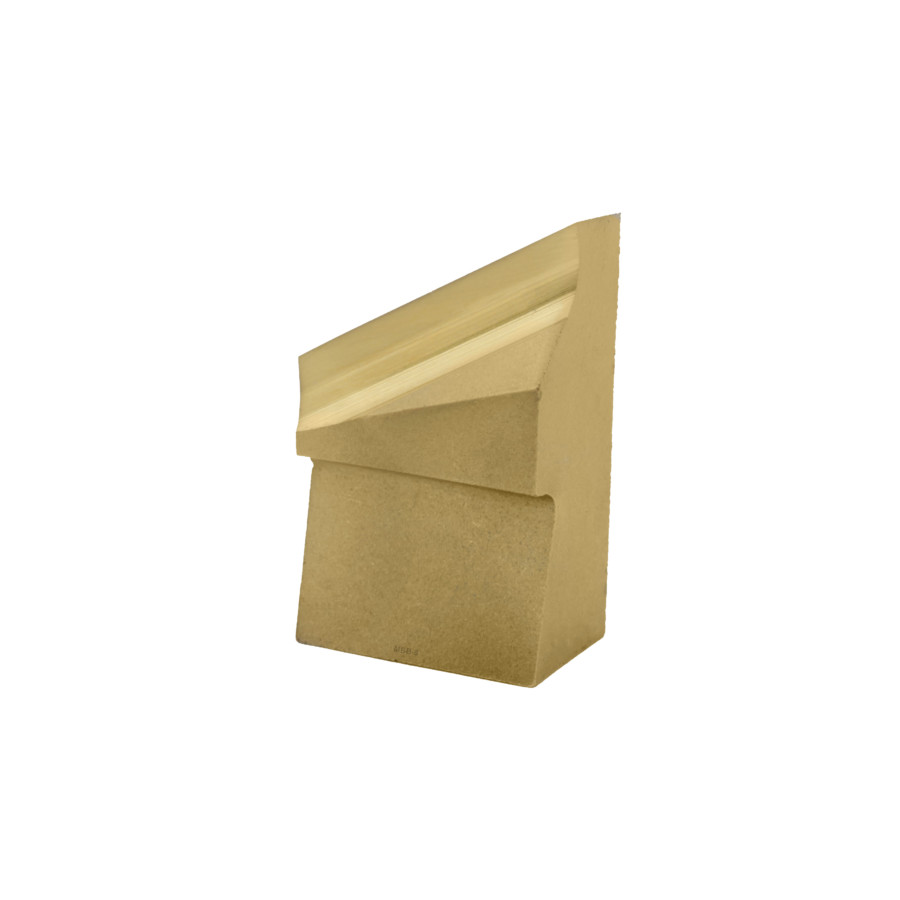

MBB-8
30° Bevel Blade TiN
3/4" / 19.1mm wide

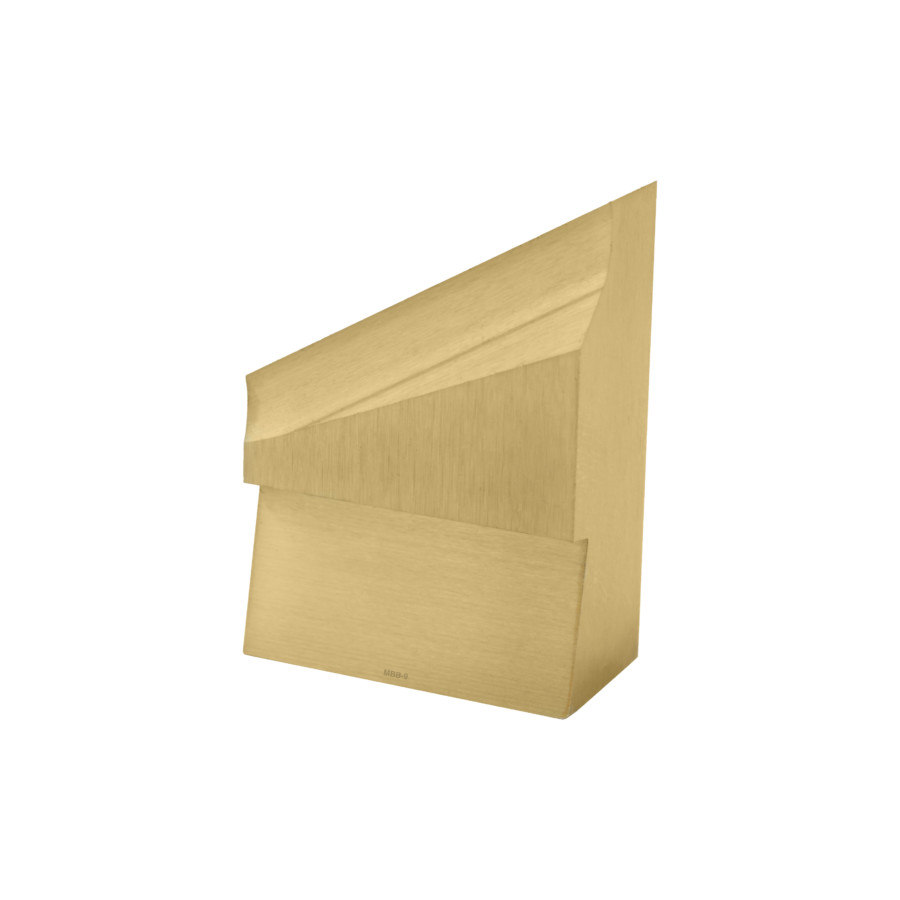

MBB-9
30° Bevel Blade TiN
1" / 12.7mm wide

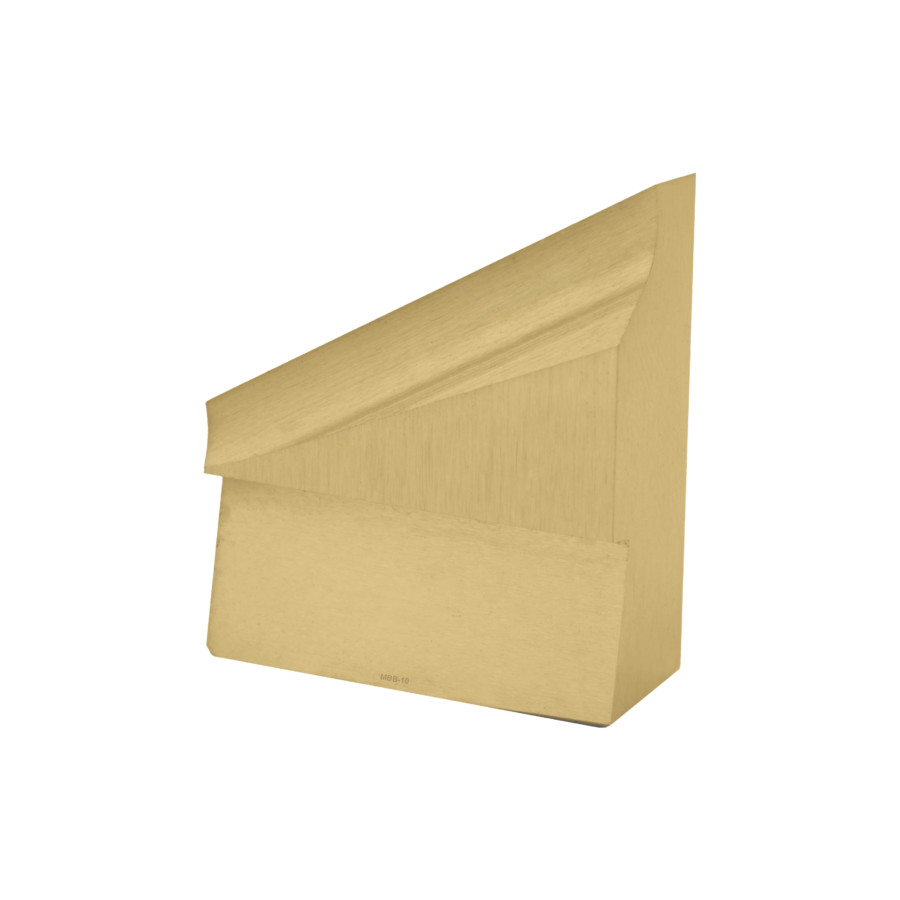

MBB-10
30° Bevel Blade TiN
1-1/4" / 31.8mm wide

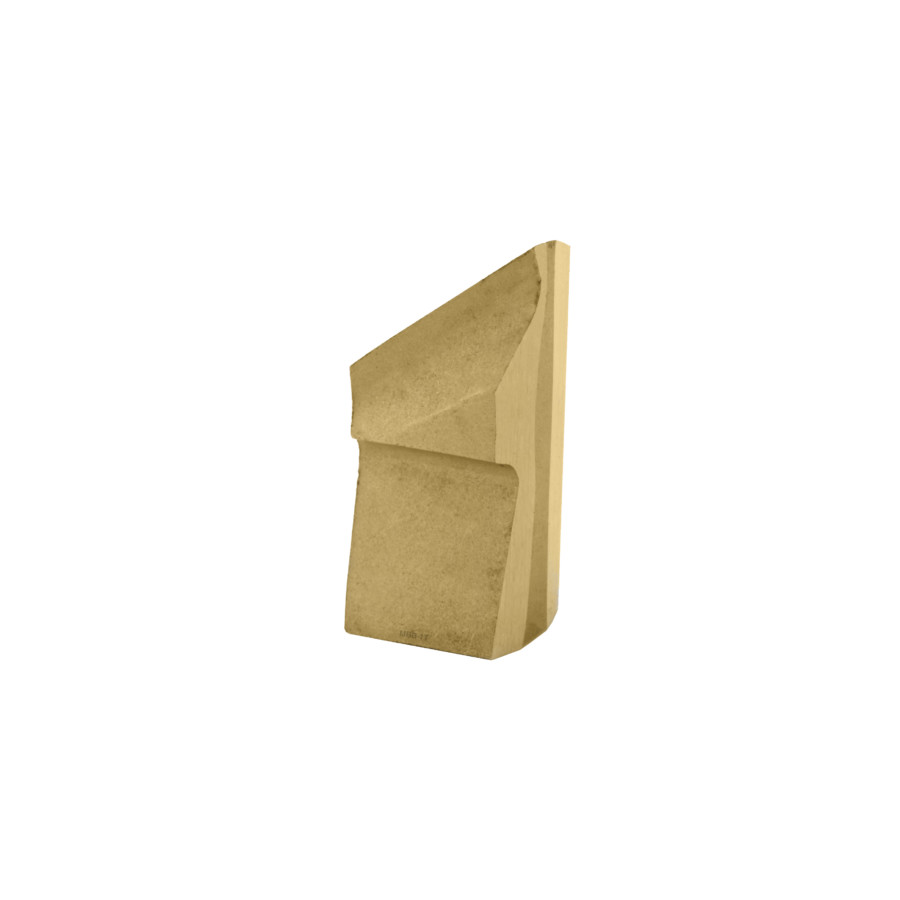

MBB-1T
37-1/2° Bevel Blade TiN
OD Tangent
1/2" / 12.7mm wide

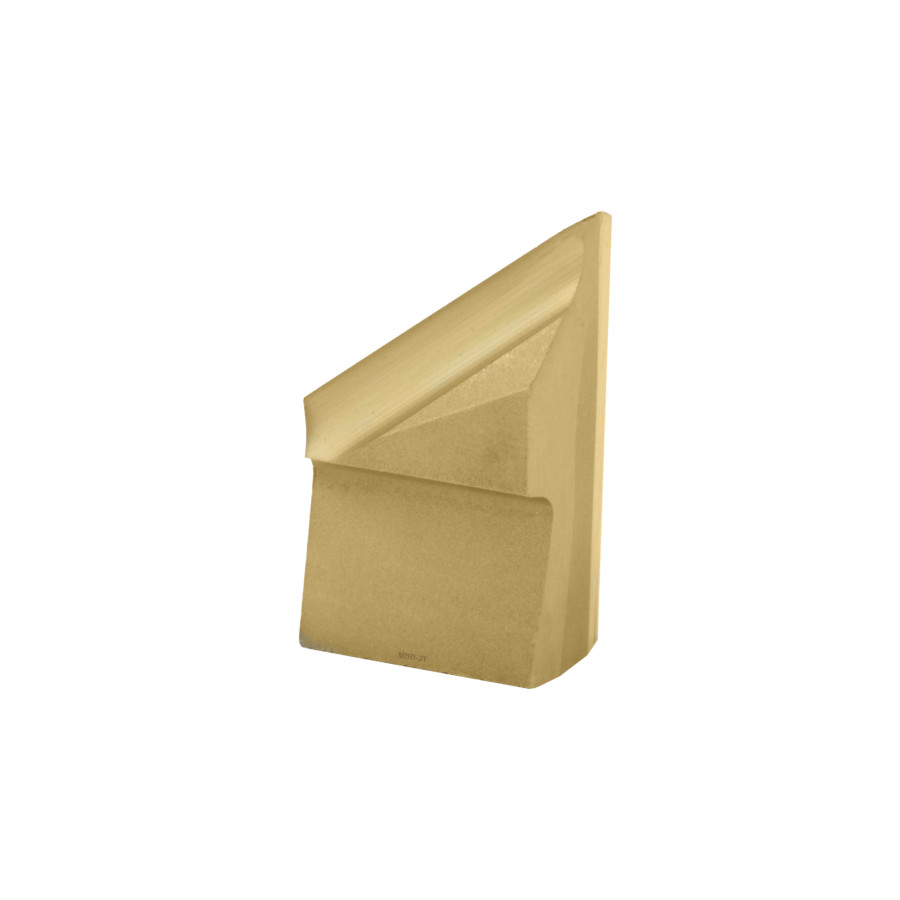

MBB-2T
37-1/2° Bevel Blade TiN
OD Tangent
3/4" / 19.1mm wide

Peel Back Blades

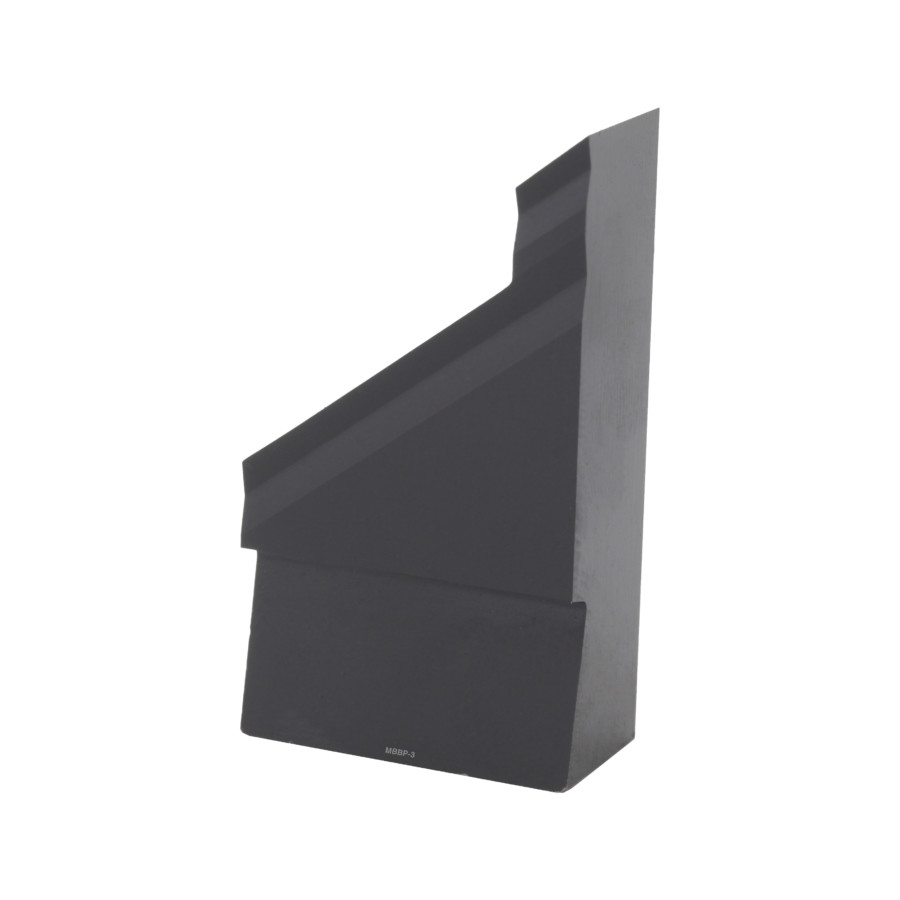

MBBP-3
37-1/2° Peel Back
Blade HL
1/4" / 1.6mm peel back
1" / 25.4mm wide

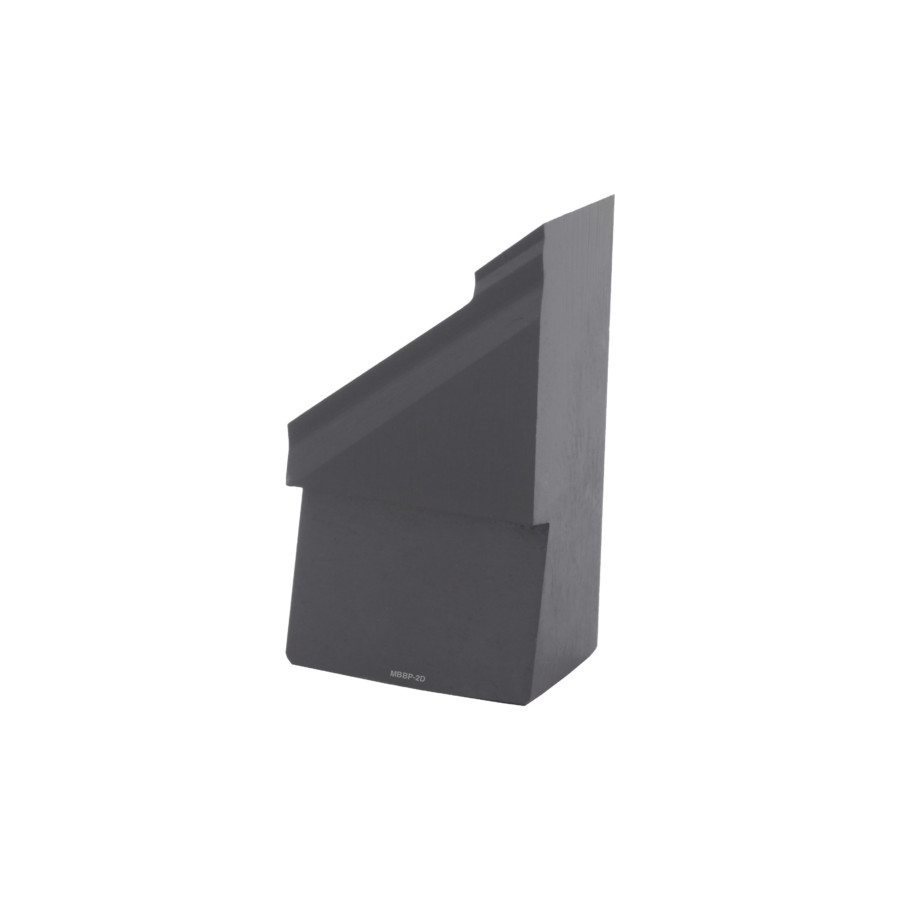

MBBP-2D
37-1/2° Peel Back
Blade HL
1/16" / 1.6mm peel back
1/2" / 12.7mm wide
MBBP-2B
37-1/2° Peel Back
Blade HL
1/8" / 3.2mm peel back
3/4" / 19.1mm wide
MBBP-2A
37-1/2° Peel Back
Blade HL
3/16" / 4.8mm peel back
3/4" / 19.1mm wide

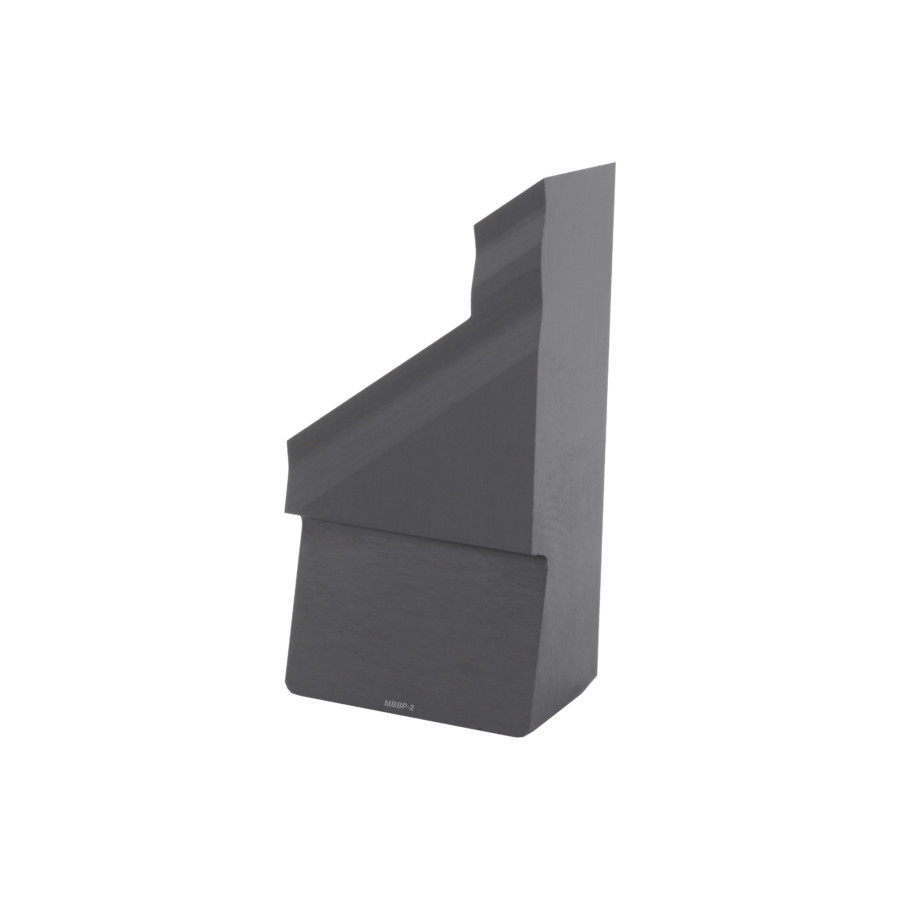

MBBP-2
37-1/2° Peel Back
Blade HL
1/4" / 6.4mm peel back
3/4" / 19.1mm wide

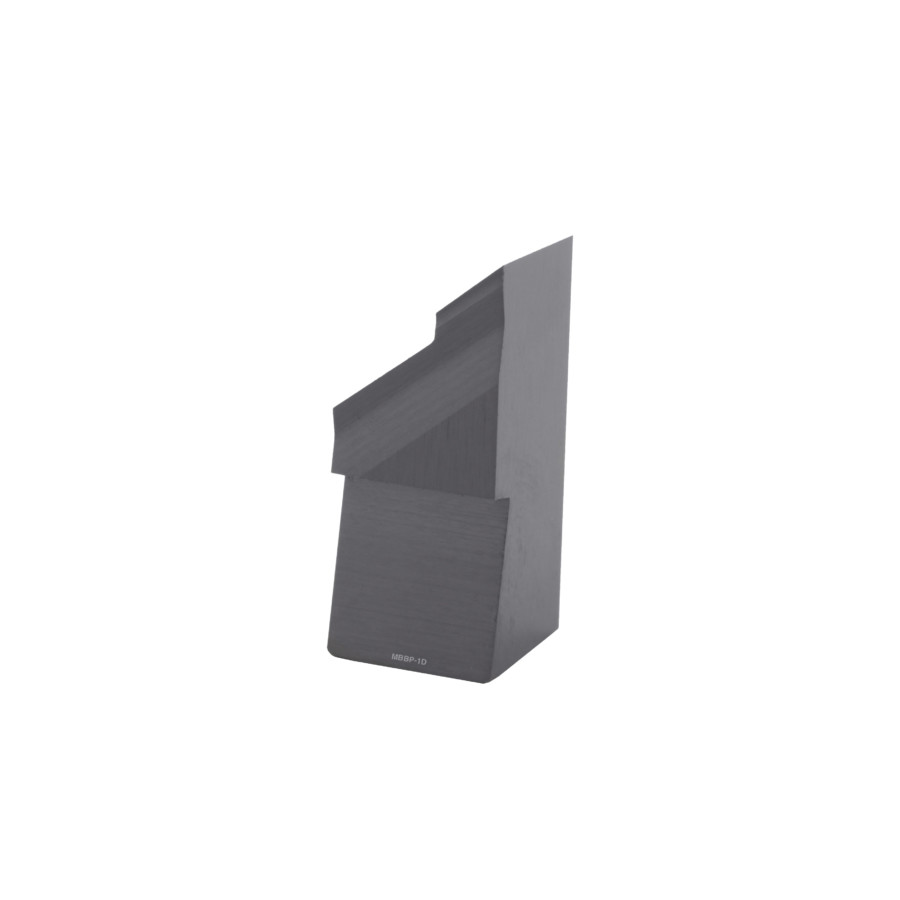

MBBP-1D
37-1/2° Peel Back
Blade HL
1/16" / 1.6mm peel back
1/2" / 12.7mm wide

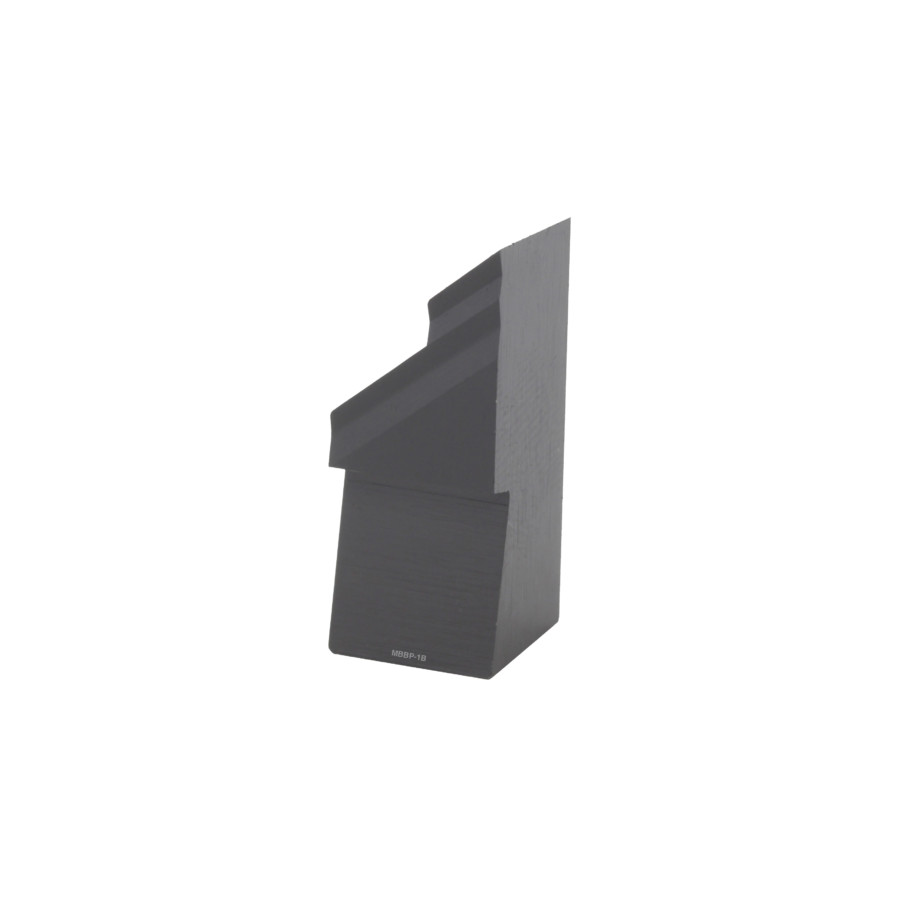

MBBP-1B
37-1/2° Peel Back
Blade HL
1/8" / 3.2mm peel back
1/2" / 12.7mm wide
MBBP-1A
37-1/2° Peel Back
Blade HL
3/16" / 4.8mm peel back
1/2" / 12.7mm wide

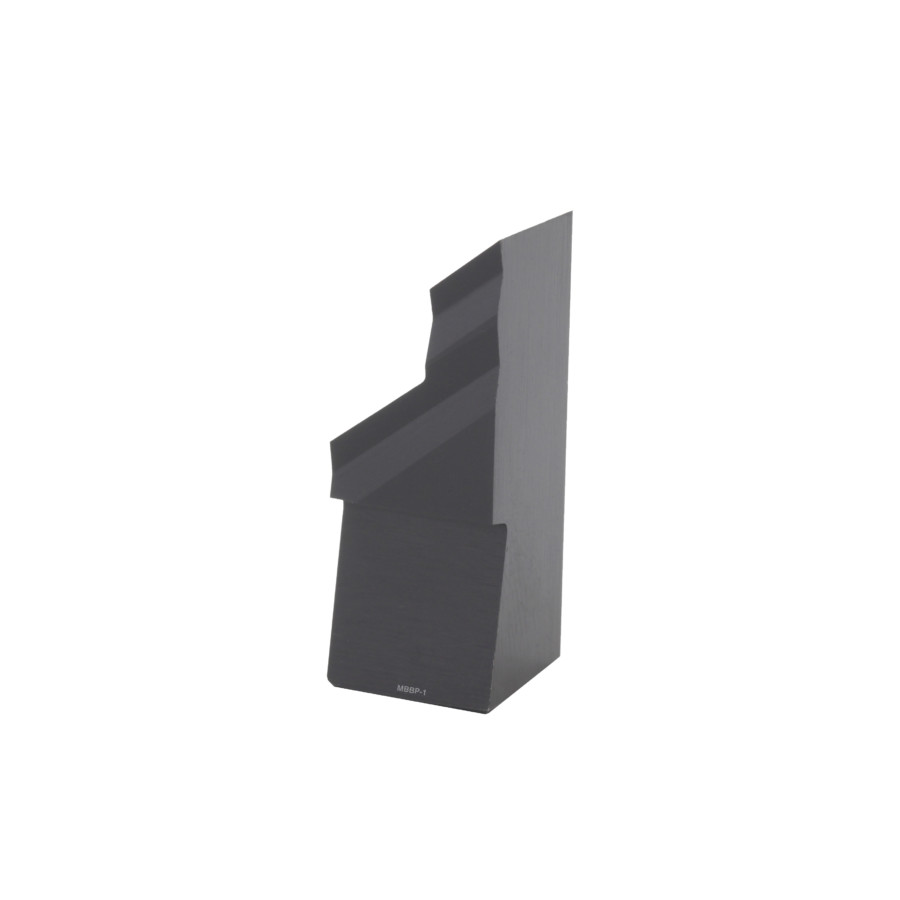

MBBP-1
37-1/2° Peel Back
Blade HL
1/4" / 6.4mm peel back
1/2" / 12.7mm wide

Boring Blades

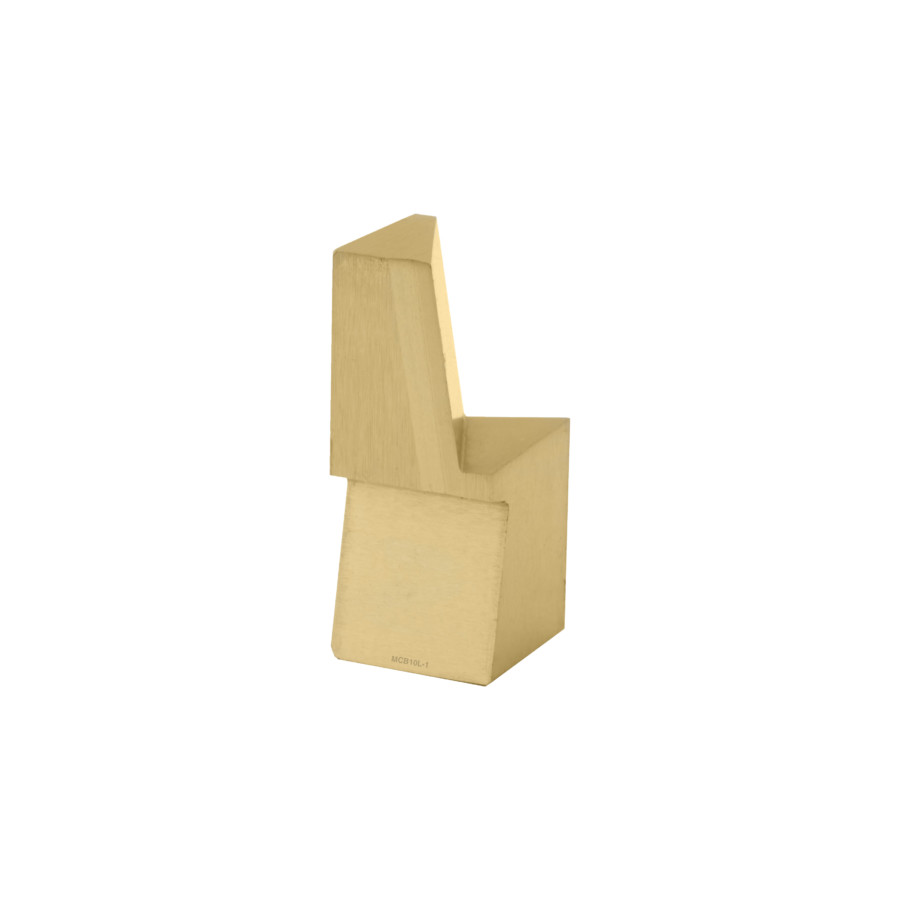

MCB10L-1
10° Boring Blade TiN
1/2" / 12.7mm wide
large ID

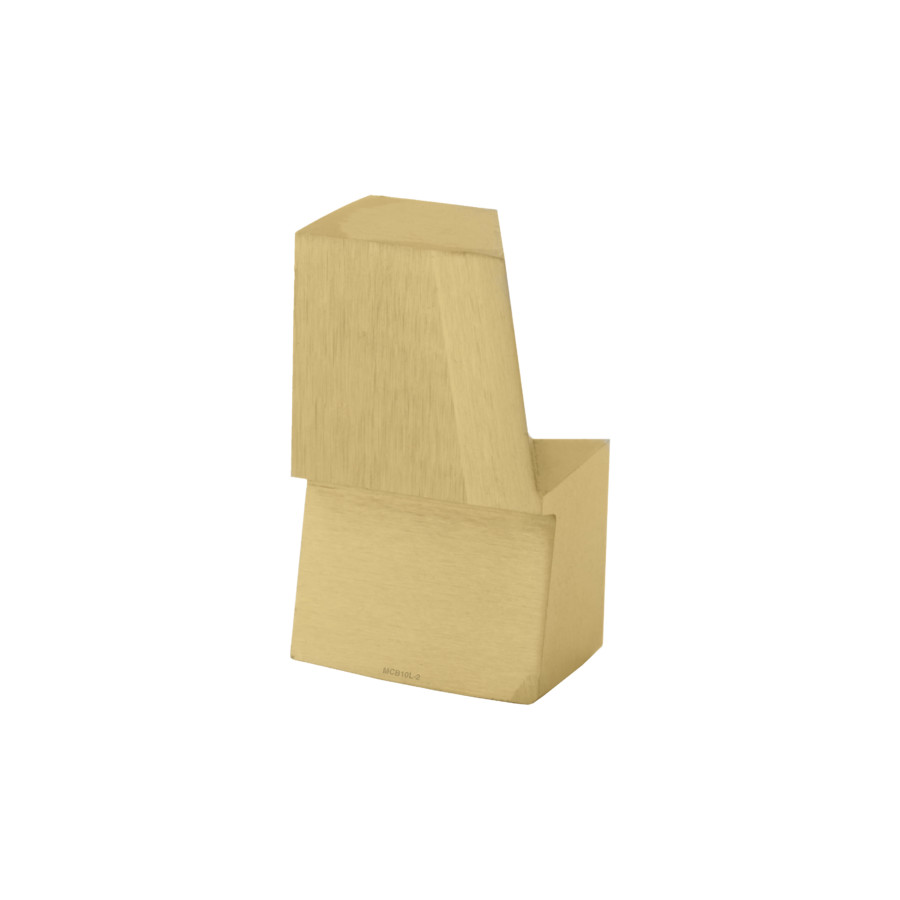

MCB10L-2
10° Boring Blade TiN
3/4" / 19.1mm wide
large ID

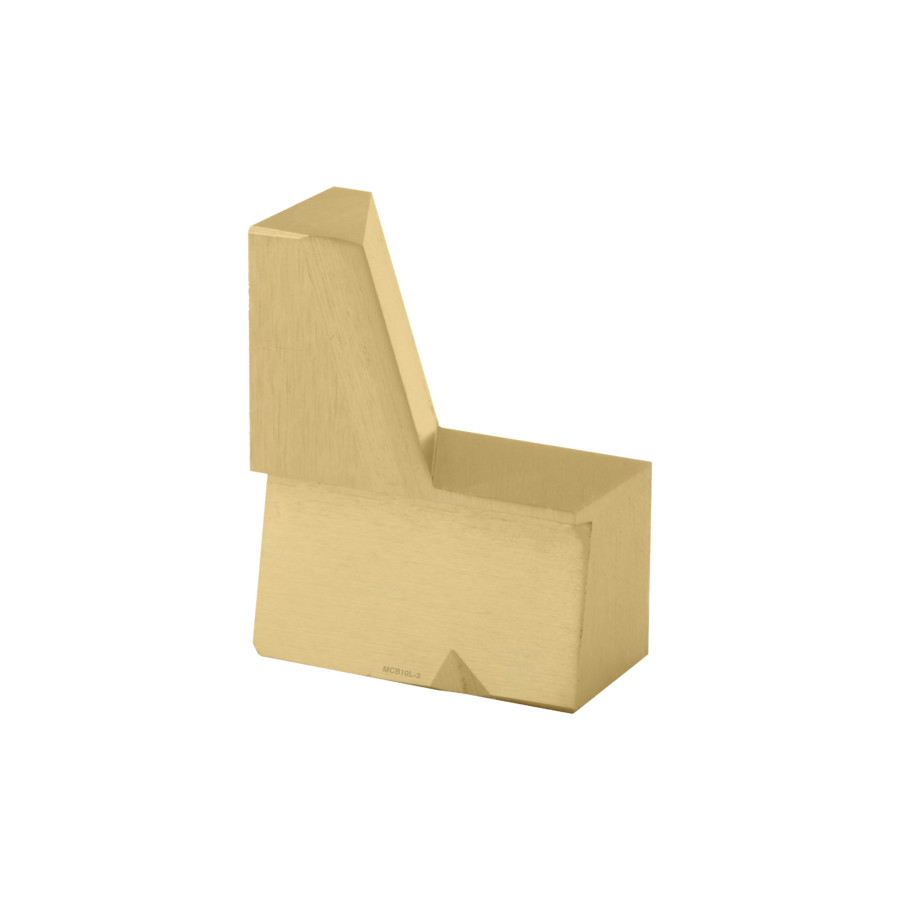

MCB10L-3
10° Boring Blade TiN
1" / 25.4mm wide
large ID

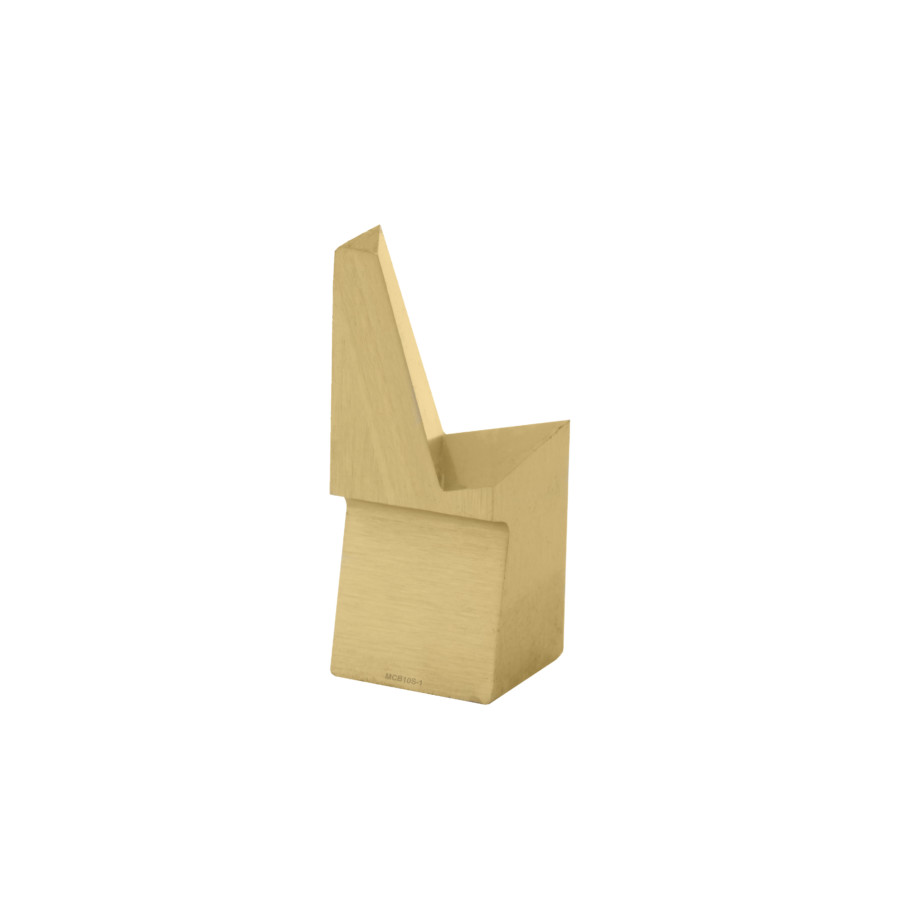

MCB10S-1
10° Boring Blade TiN
1/2" / 12.7mm wide
small ID

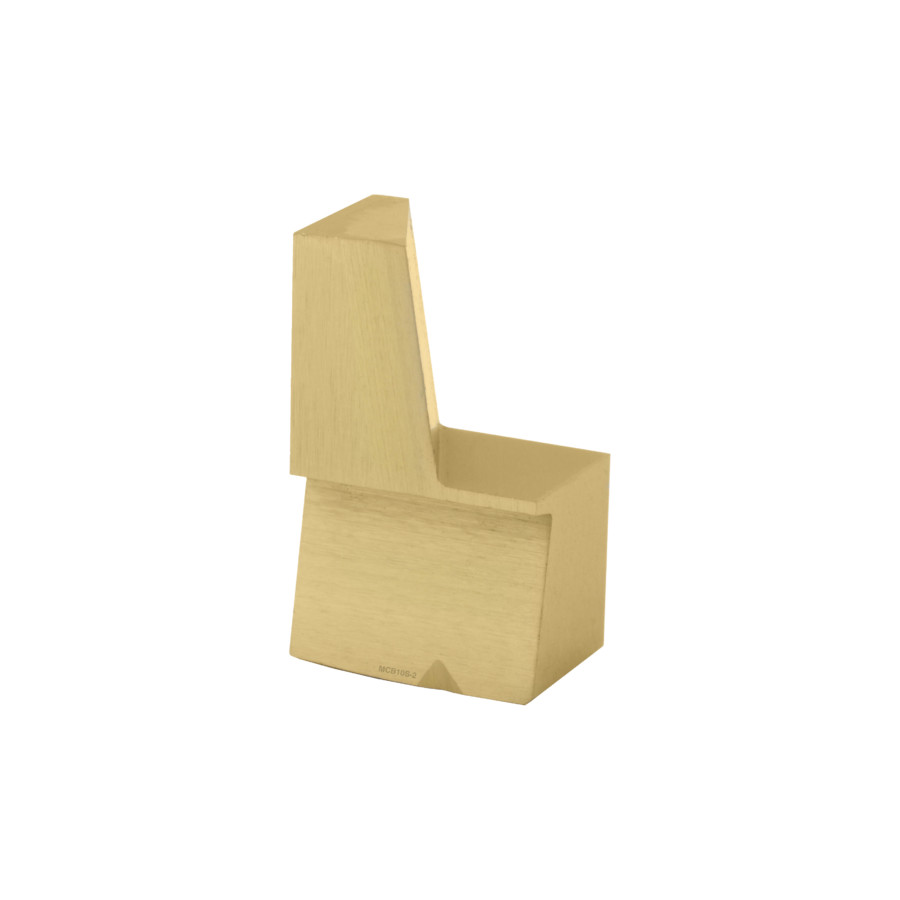

MCB10S-2
10° Boring Blade TiN
3/4" / 19.1mm wide
small ID

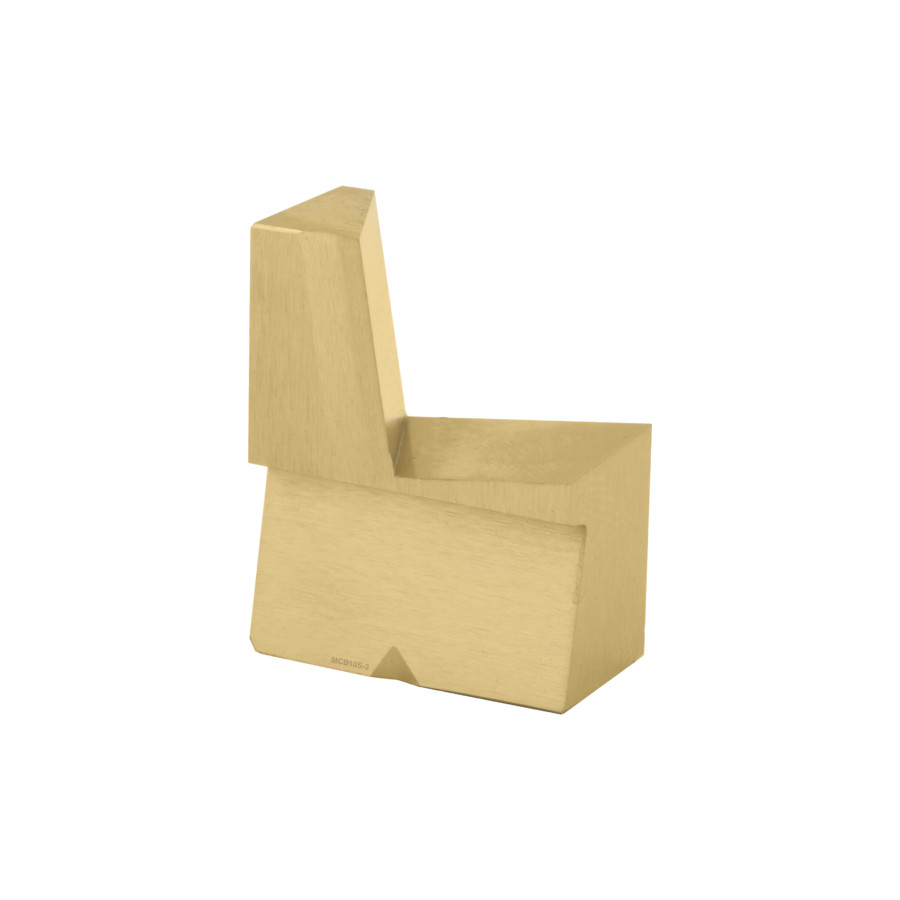

MCB10S-3
10° Boring Blade TiN
1" / 25.4mm wide
small ID

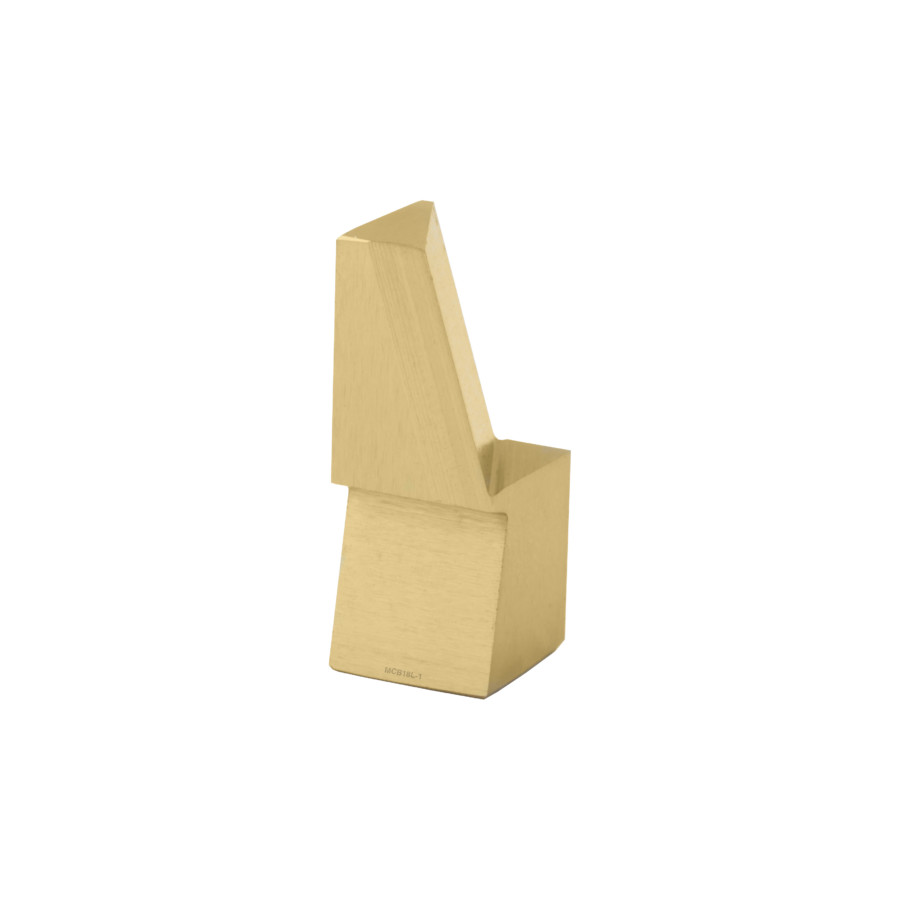

MCB18L-1
18° Boring Blade TiN
1/2" / 12.7mm wide
large ID

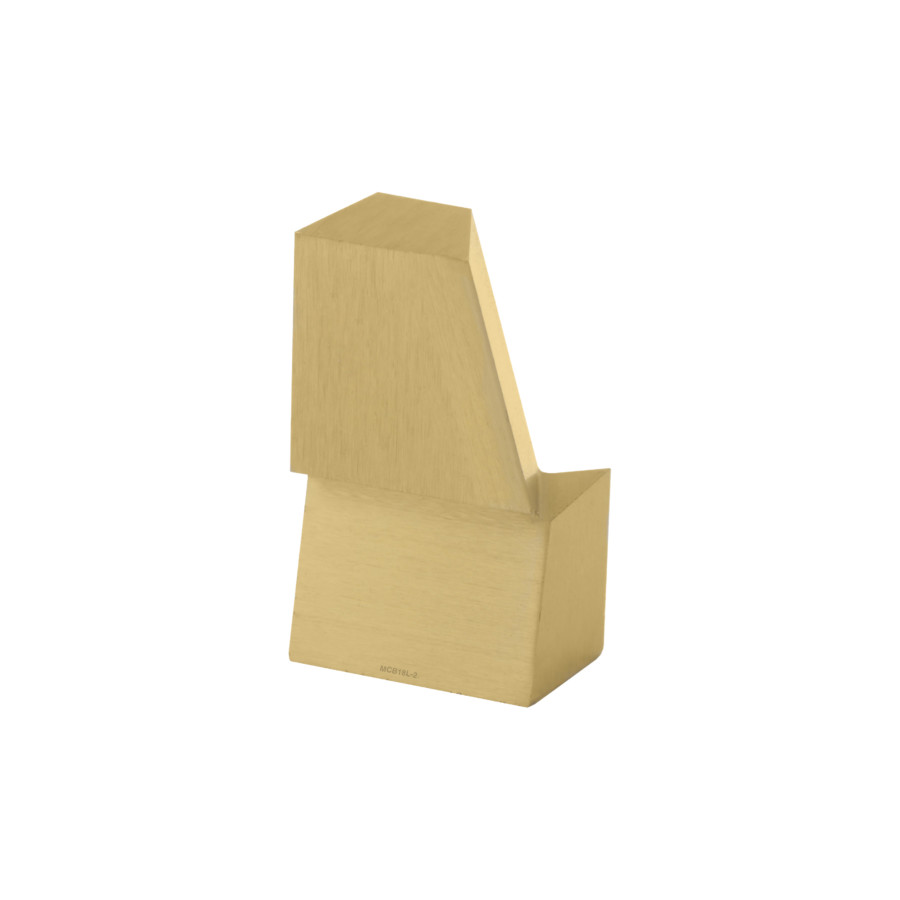

MCB18L-2
18° Boring Blade TiN
3/4" / 19.1mm wide
large ID

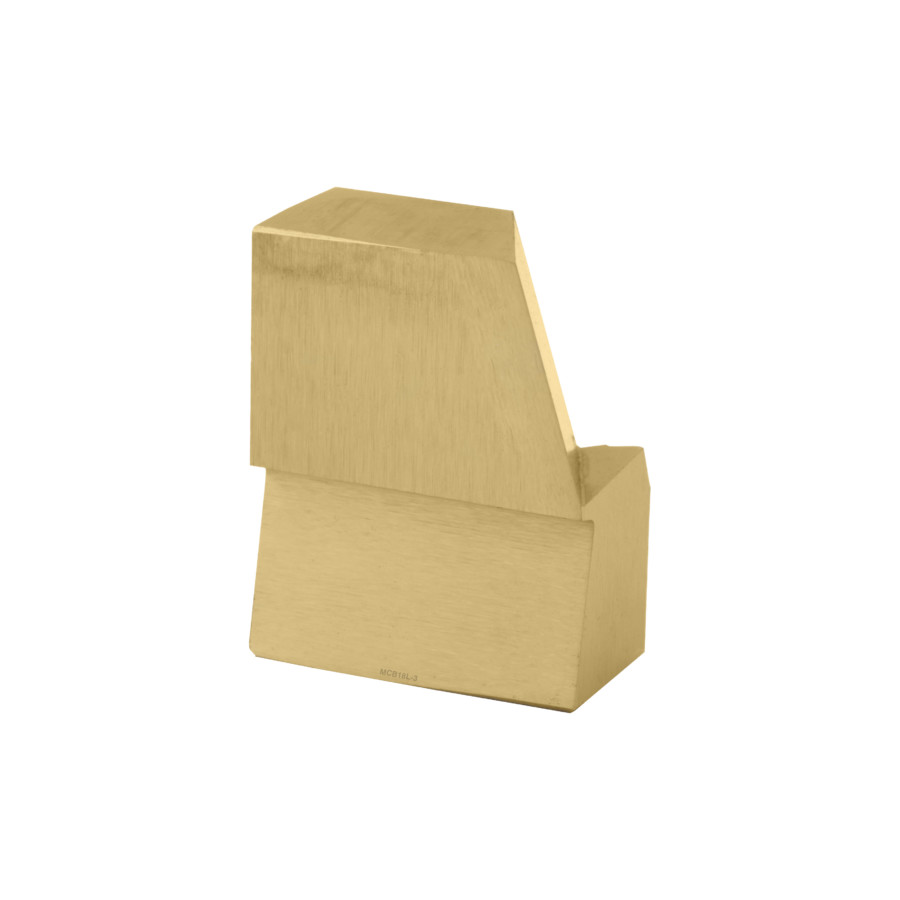

MCB18L-3
18° Boring Blade TiN
1" / 25.4mm wide
large ID

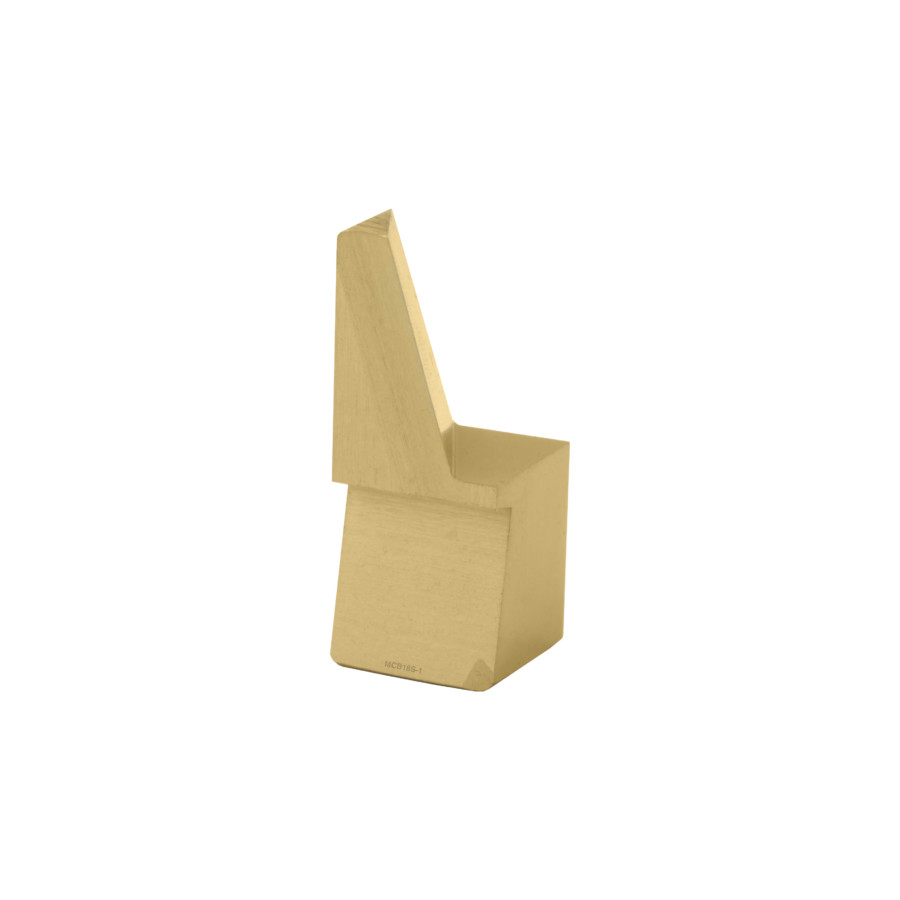

MCB18S-1
18° Boring Blade TiN
1/2" / 12.7mm wide
small ID

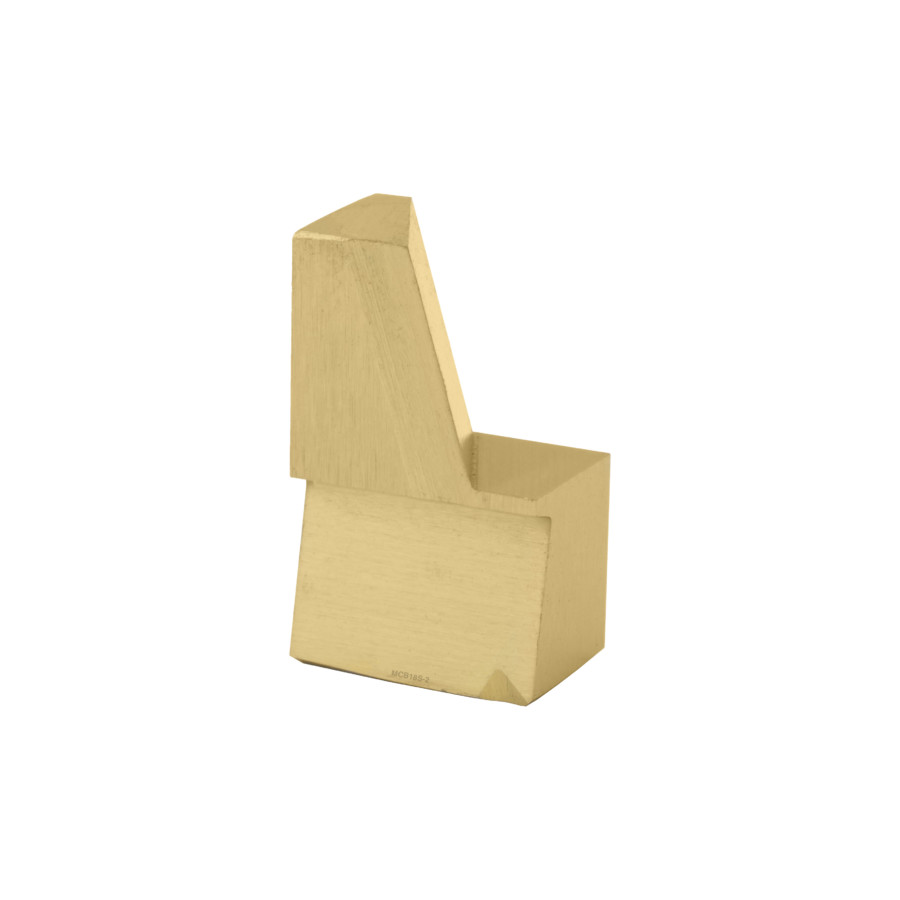

MCB18S-2
18° Boring Blade TiN
3/4" / 19.1mm wide
small ID

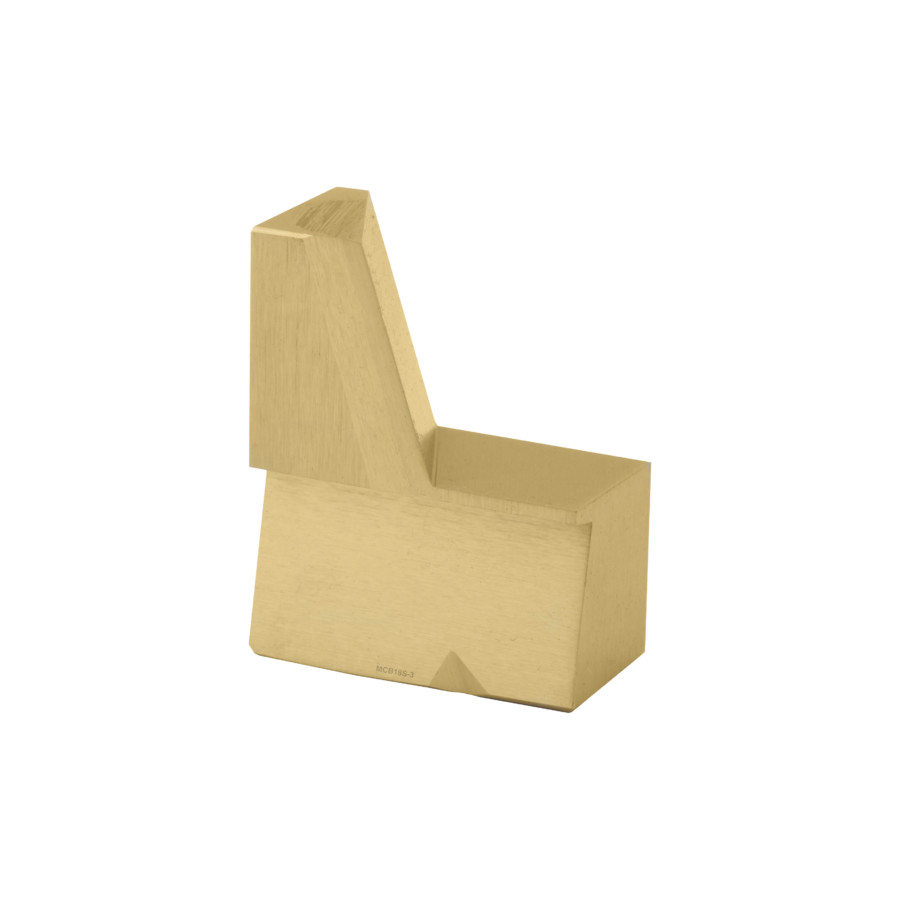

MCB18S-3
18° Boring Blade TiN
1" / 25.4mm wide
small ID

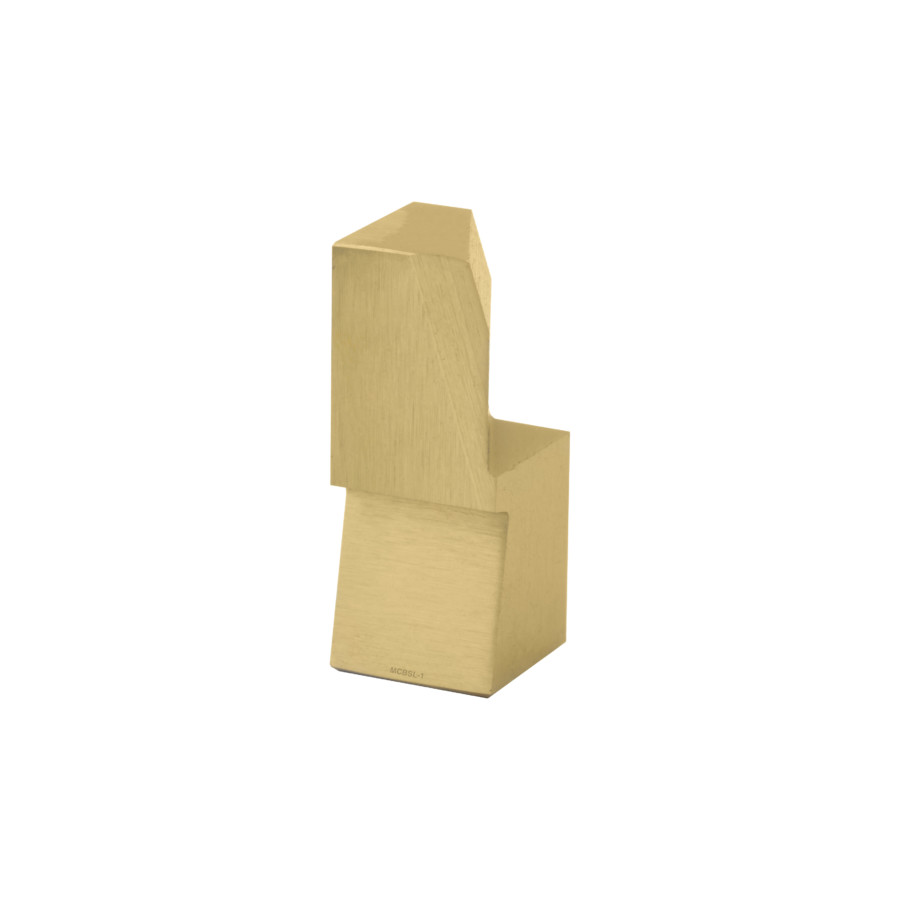

MCBSL-1
Straight Bore 18° Taper
1/2" / 12.7mm wide
3/8" / 9.5mm deep
large ID

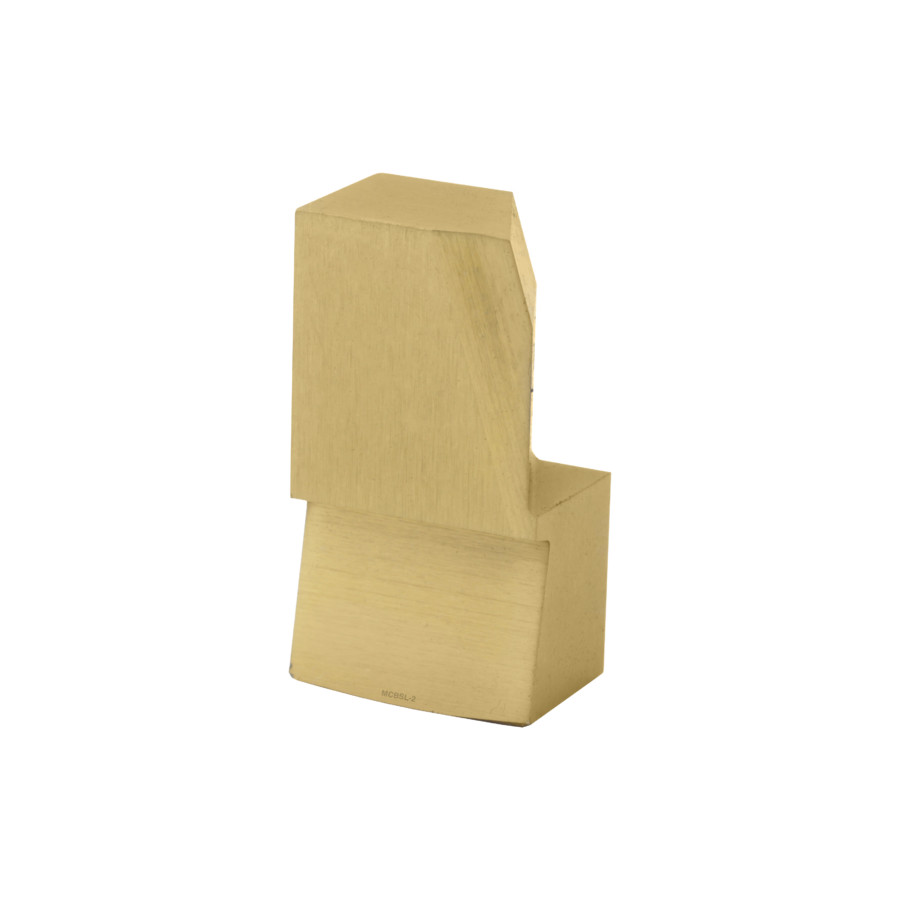

MCBSL-2
Straight Bore 18° Taper
3/4" / 19.1mm wide
3/8" / 9.5mm deep
large ID

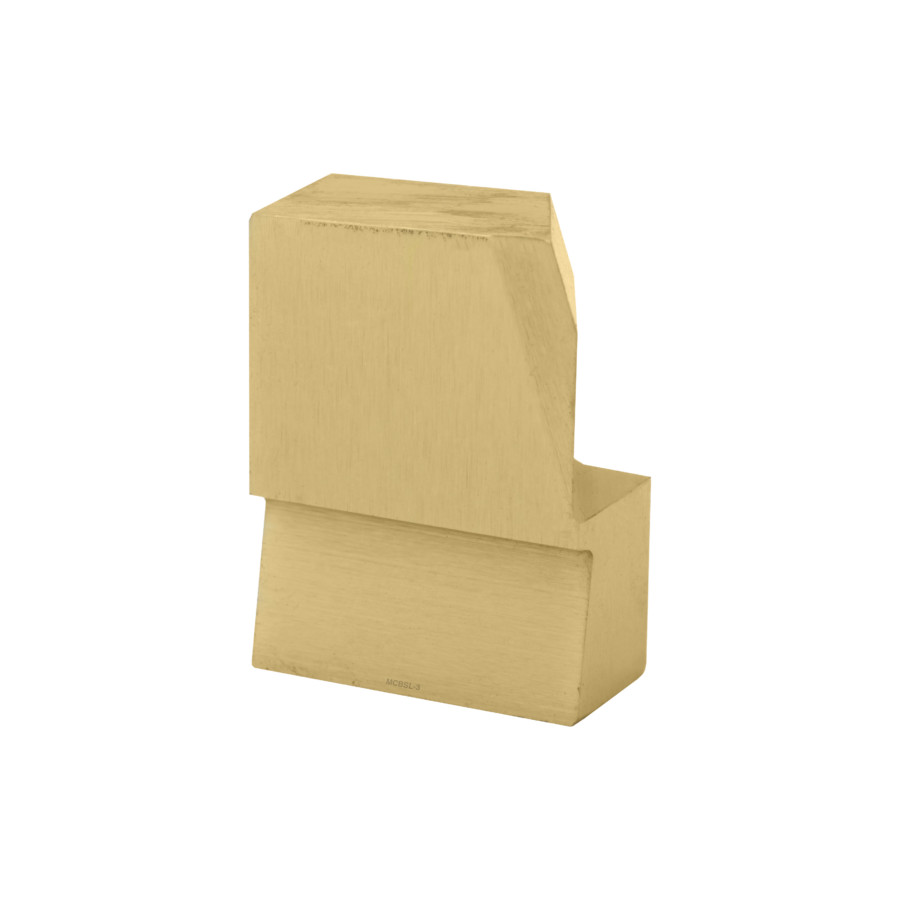

MCBSL-3
Straight Bore 18° Taper
1" / 25.4mm wide
3/8" / 9.5mm deep
large ID

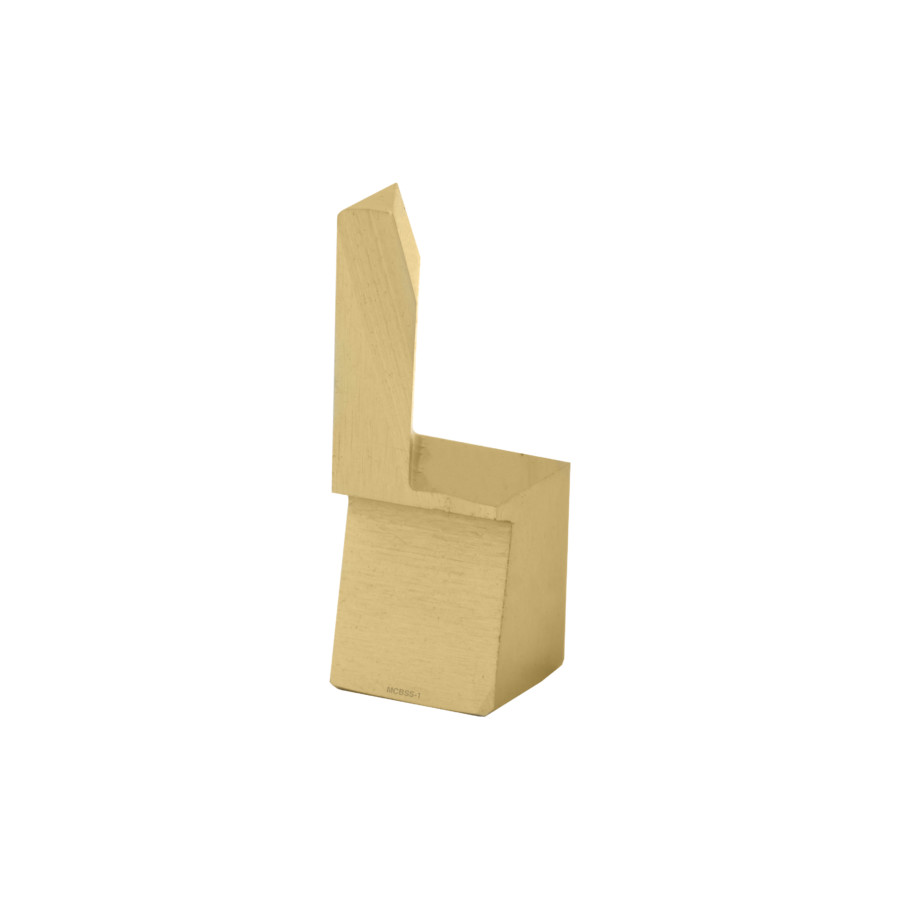

MCBSS-1
Straight Bore 18° Taper
1/2" / 12.7mm wide
3/8" / 9.5mm deep
small ID

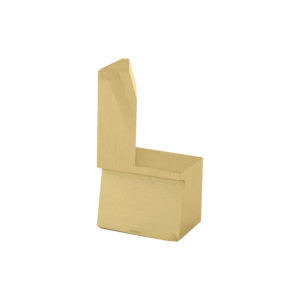

MCBSS-2
Straight Bore 18° Taper
3/4" / 19.1mm wide
3/8" / 9.5mm deep
small ID

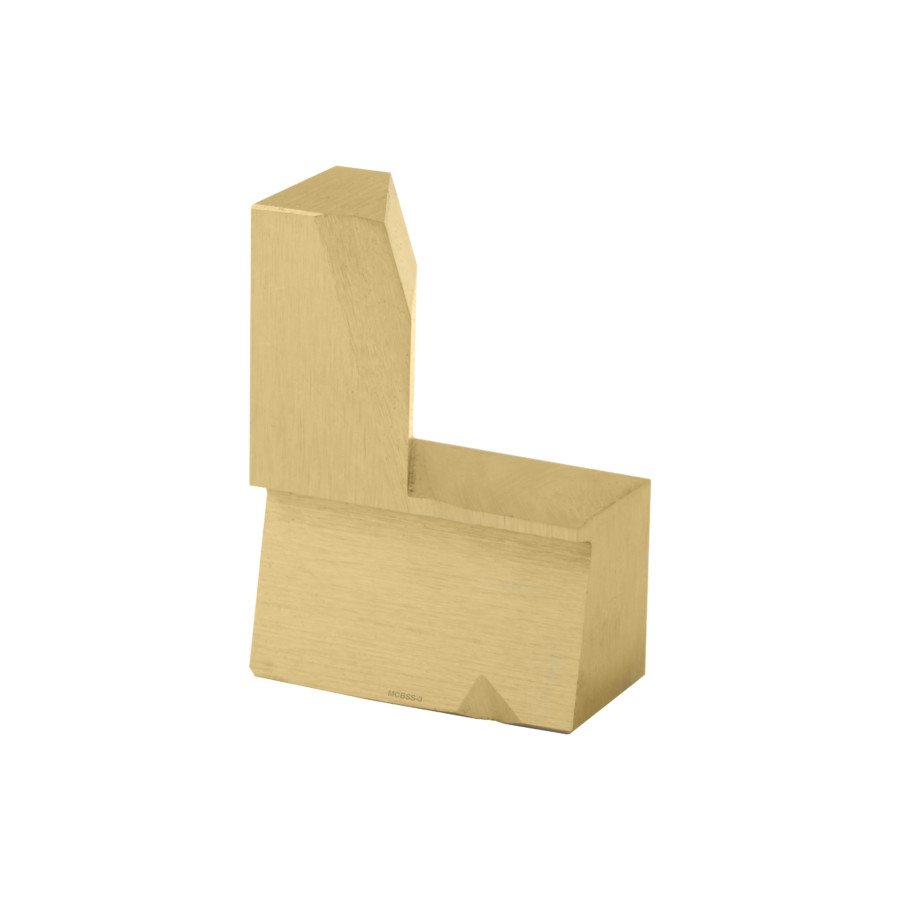

MCBSS-3
Straight Bore 18° Taper
1" / 25.4mm wide
3/8" / 9.5mm deep
small ID

J-Bevel Blades

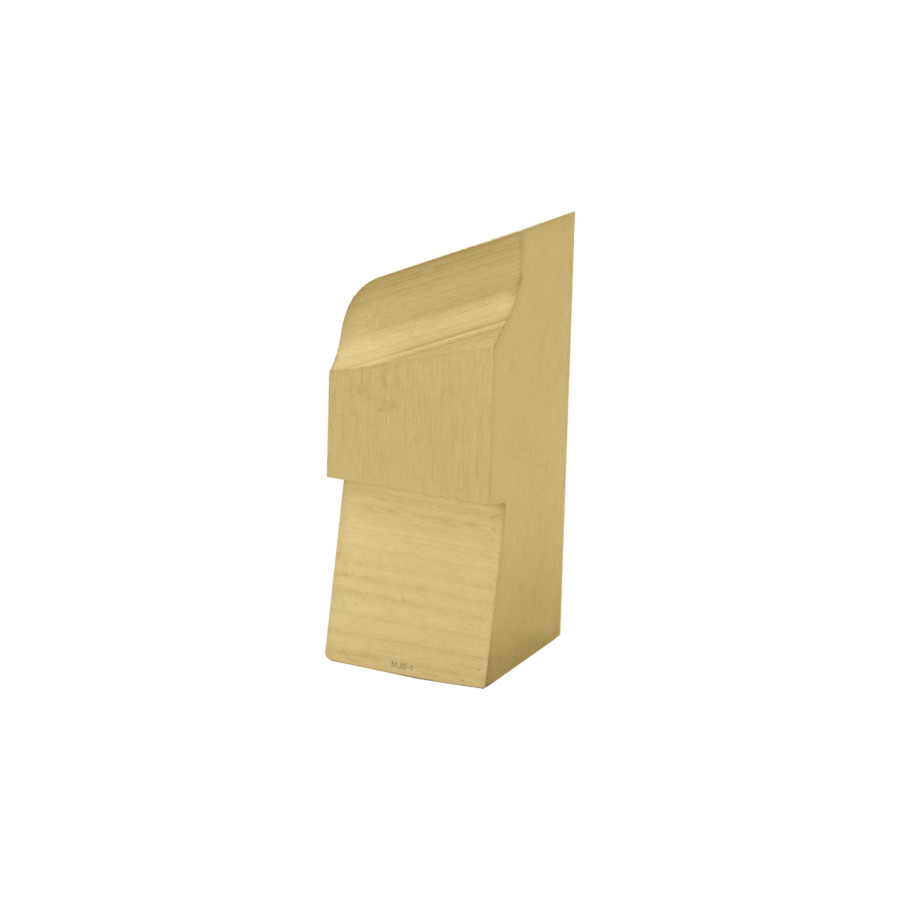

MJB-1
22° J-Prep Blade TiN
3/16" / 4.8mm radius
1/2" / 12.7mm wide

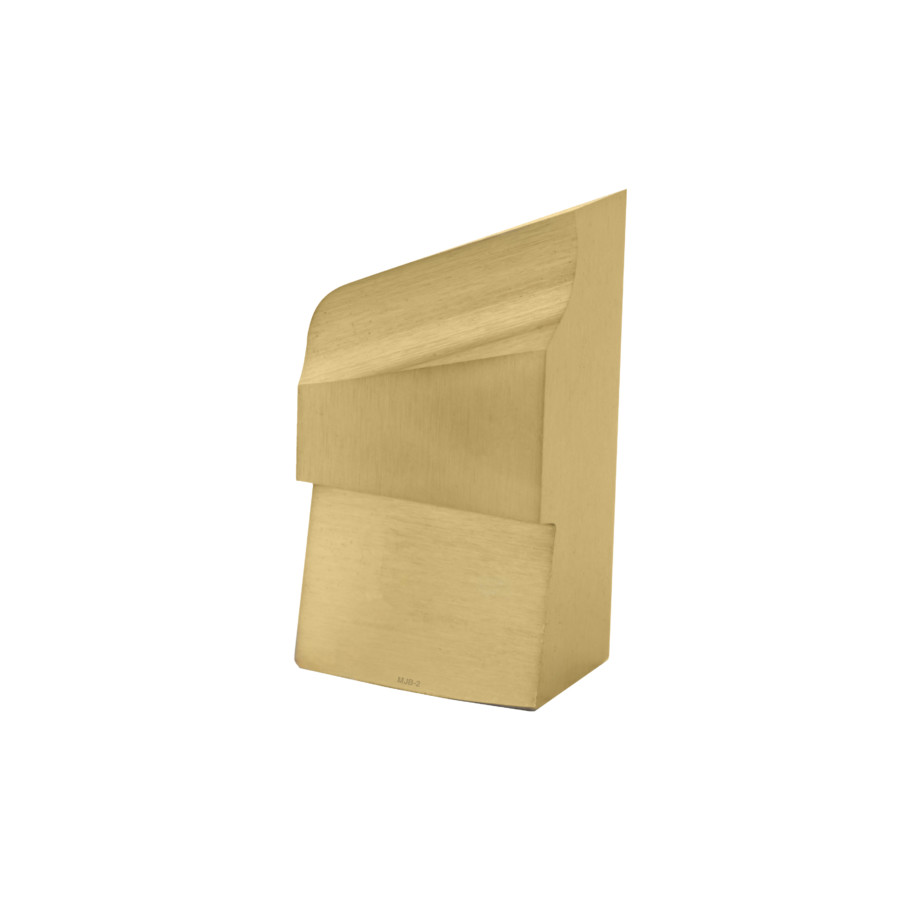

MJB-2
22° J-Prep Blade TiN
3/16" / 4.8mm radius
3/4" / 19.1mm wide

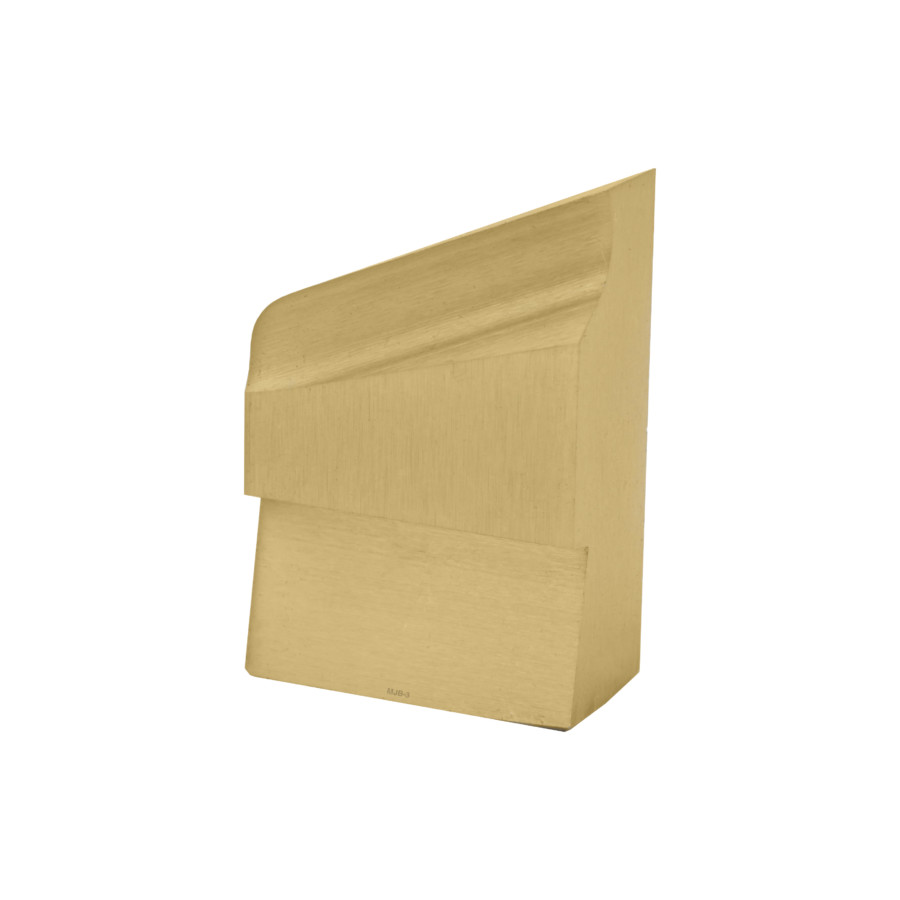

MJB-3
22° J-Prep Blade TiN
3/16" / 4.8mm radius
1" / 25.4mm wide

Facing Blades

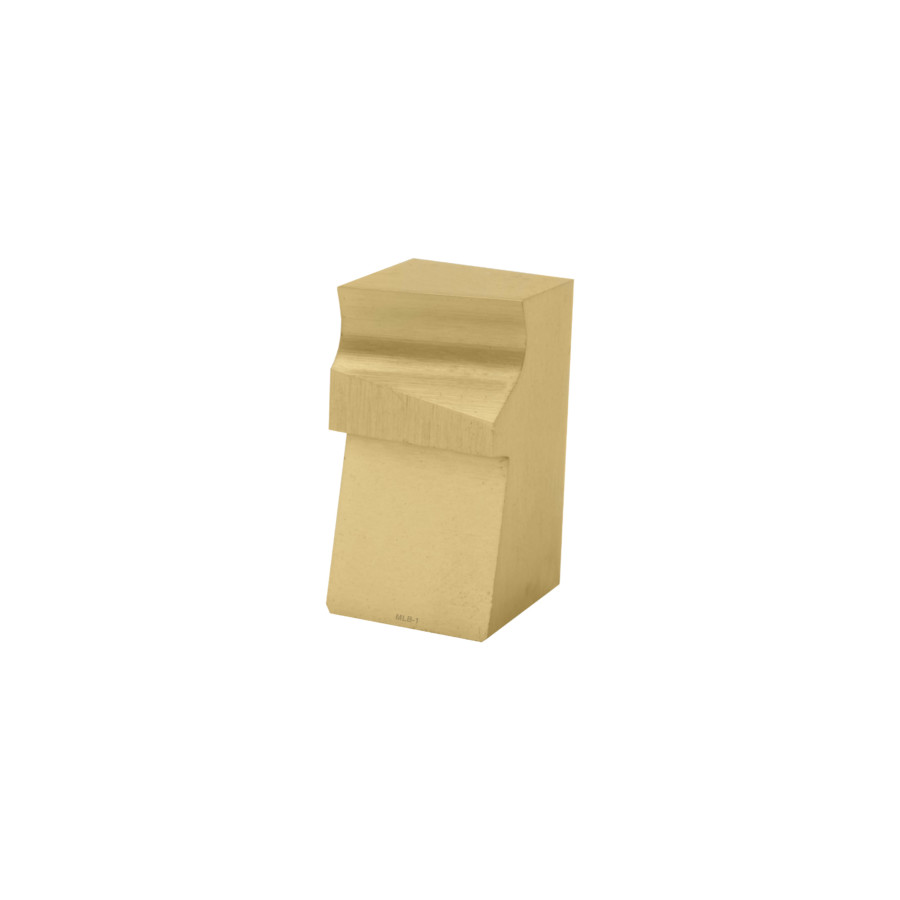

MLB-1
Facing Blade TiN
1/2" / 12.7mm wide

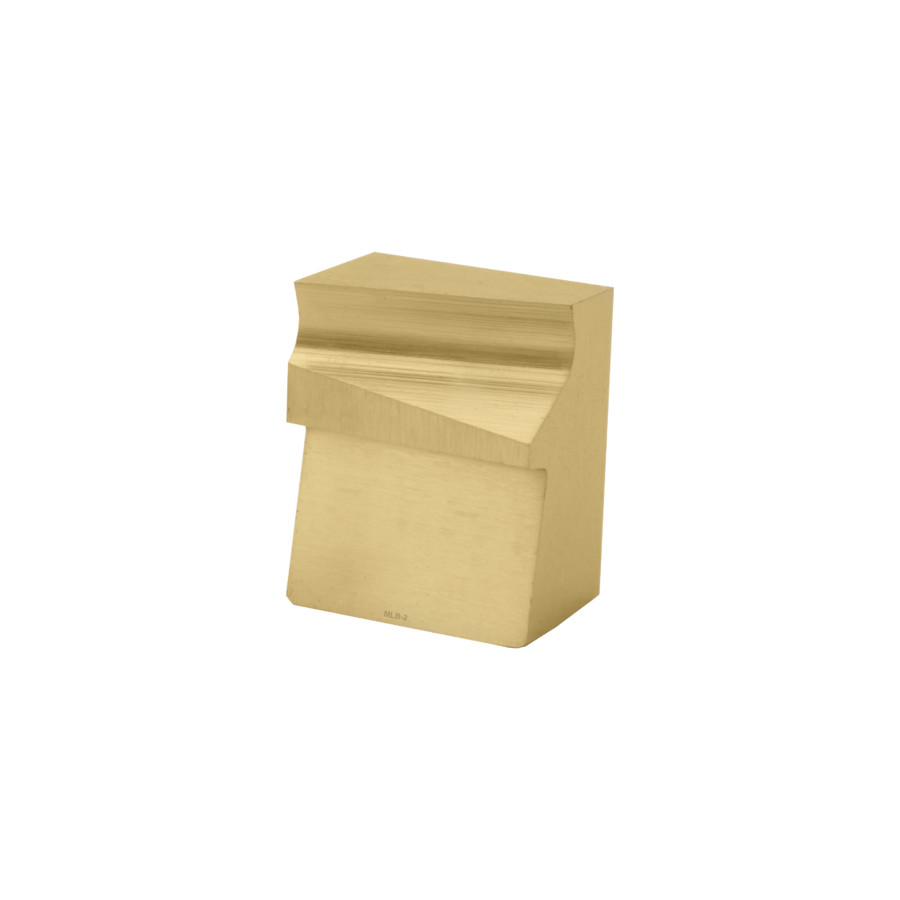

MLB-2
Facing Blade TiN
3/4" / 19.1mm wide

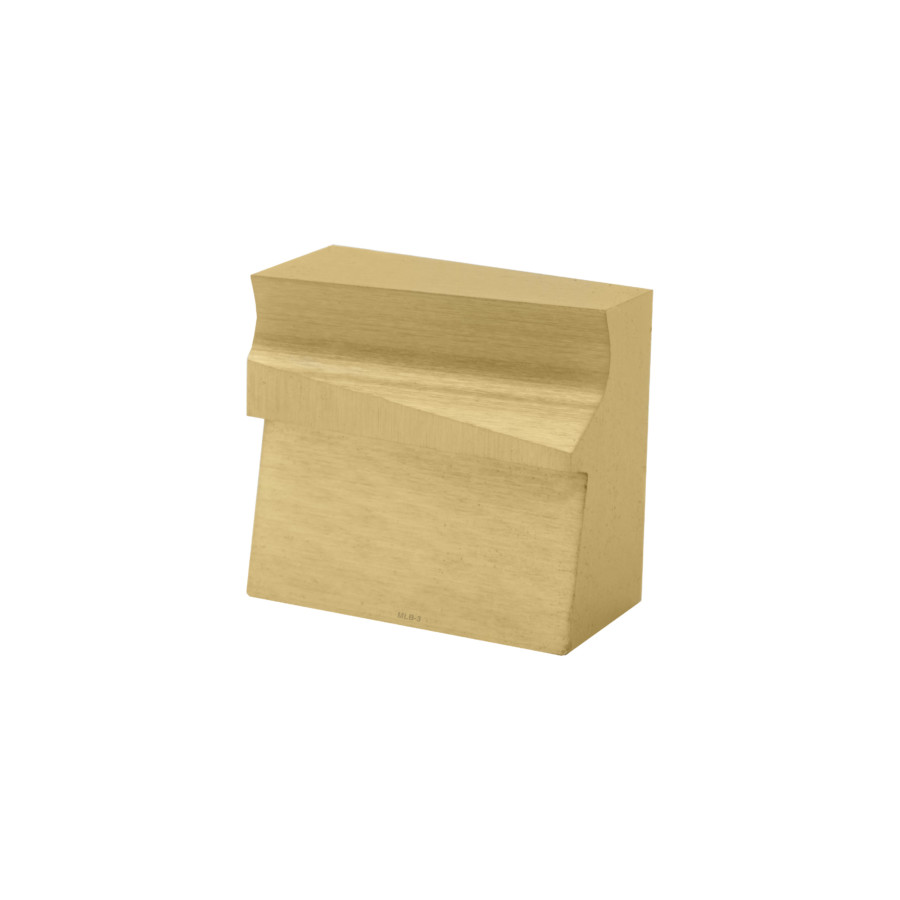

MLB-3
Facing Blade TiN
1" / 25.4mm wide

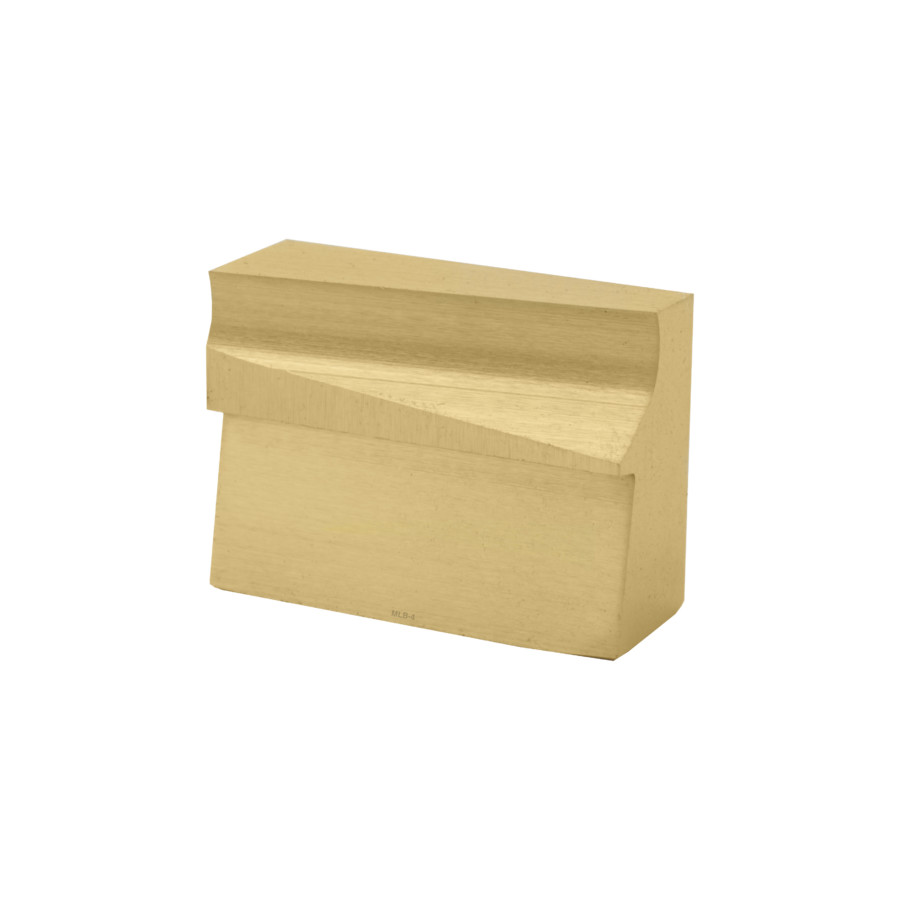

MLB-4
Facing Blade TiN
1-1/4" / 31.8mm wide

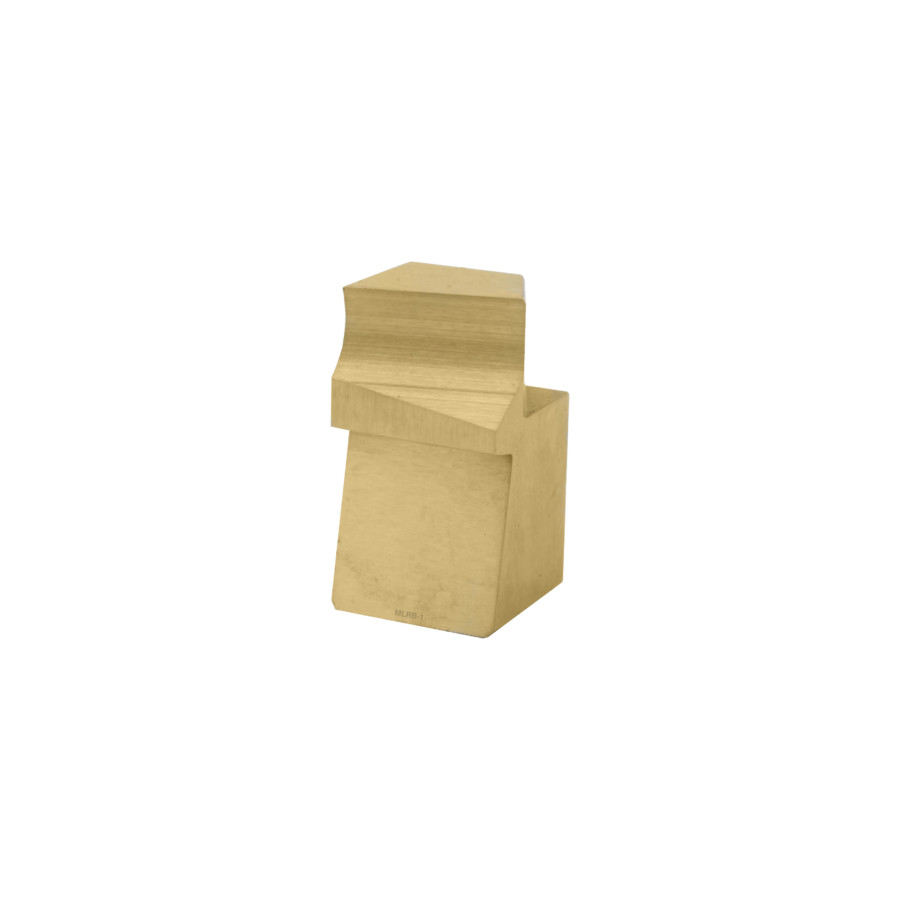

MLRB-1
Facing Blade TiN
OD radius
1/2" / 12.7mm wide

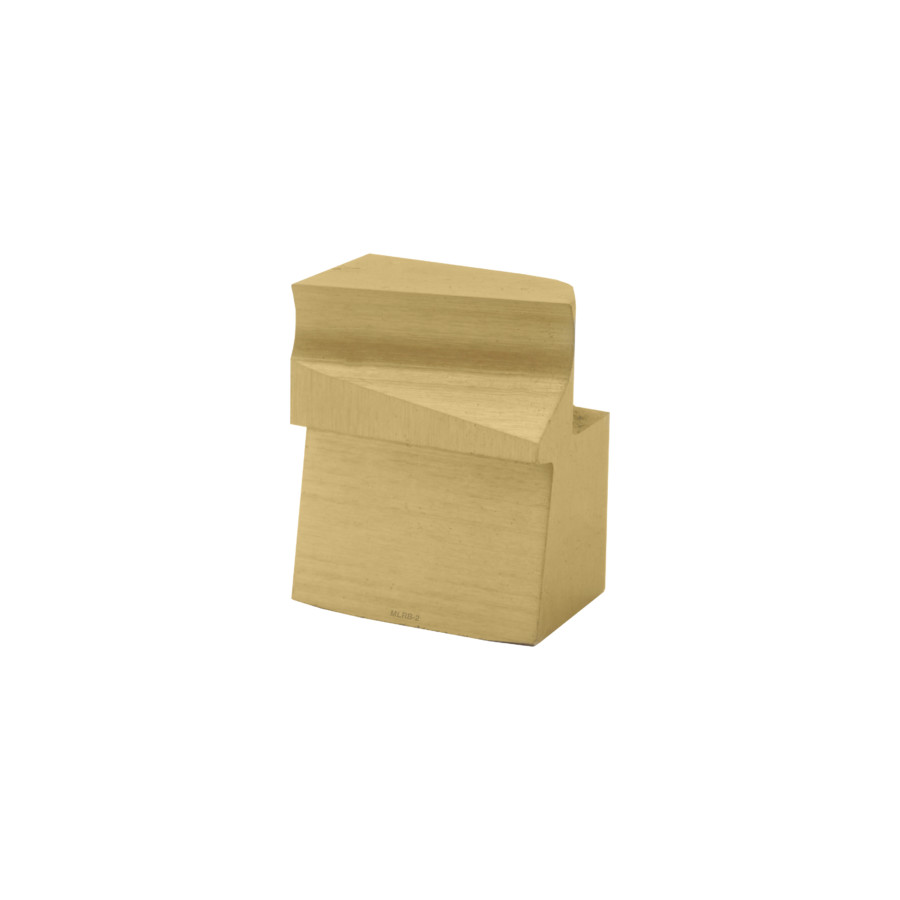

MLRB-2
Facing Blade TiN
OD radius
3/4" / 19.1mm wide

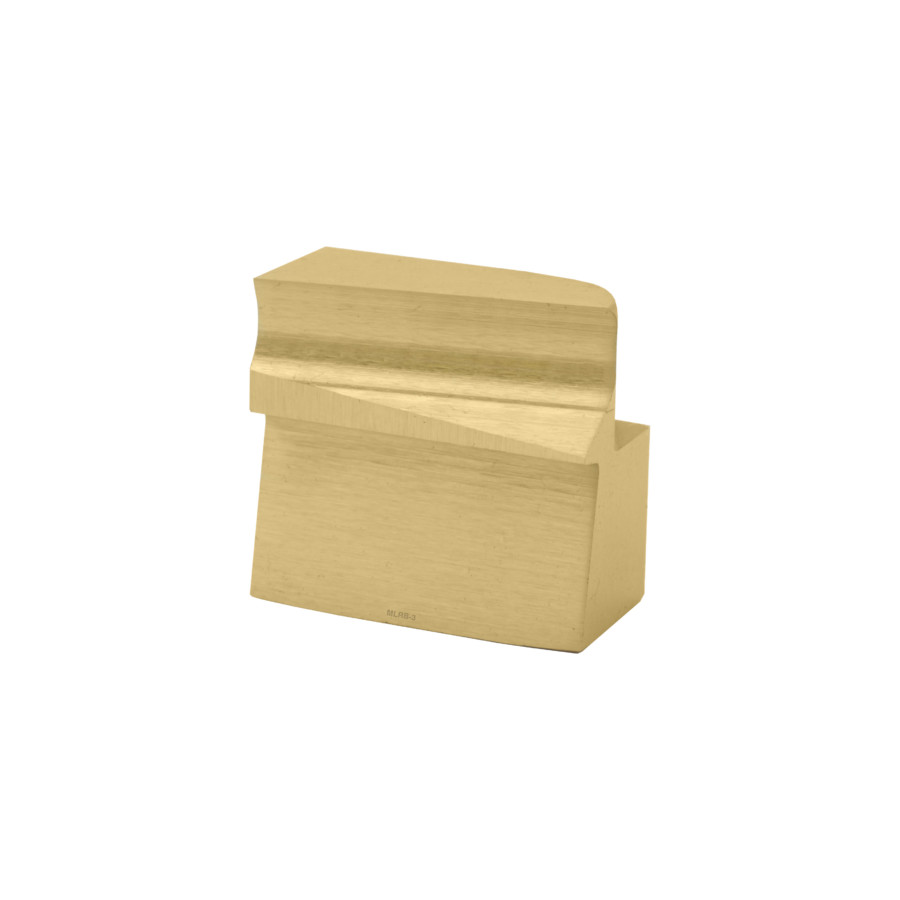

MLRB-3
Facing Blade
OD radius
1" / 25.4mm wide

Reverse Bevel Blades

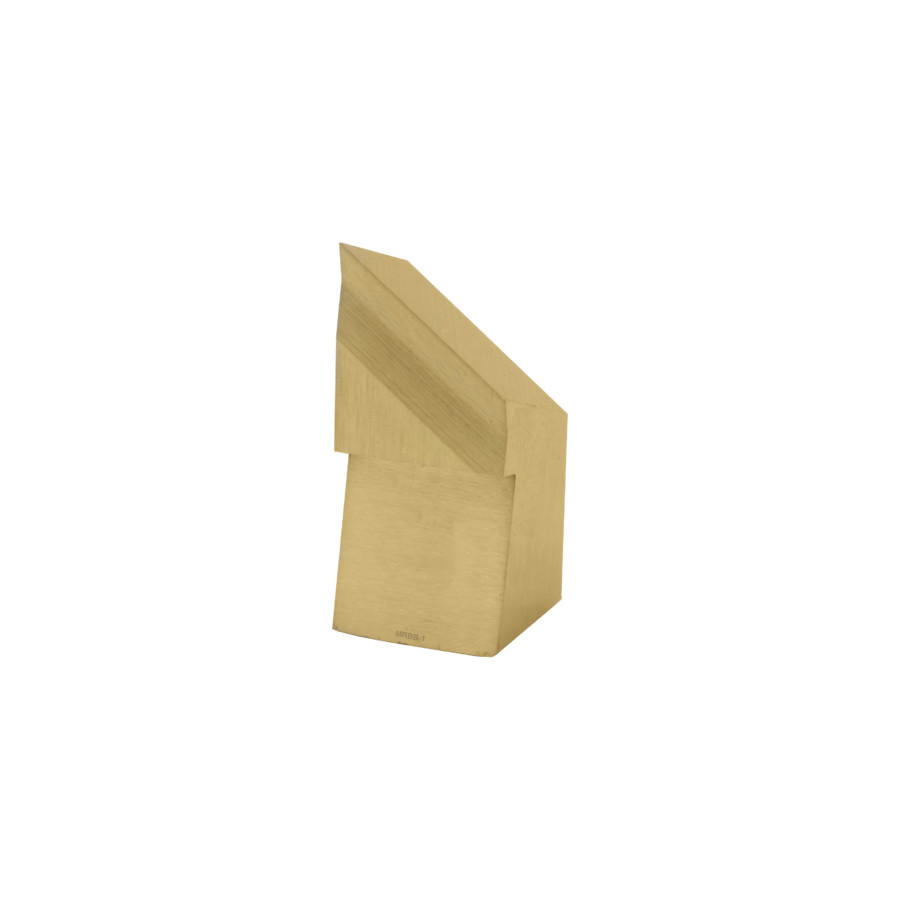

MRBB-1
37-1/2° Reverse Bevel Blade TiN
1/2" / 12.7mm wide

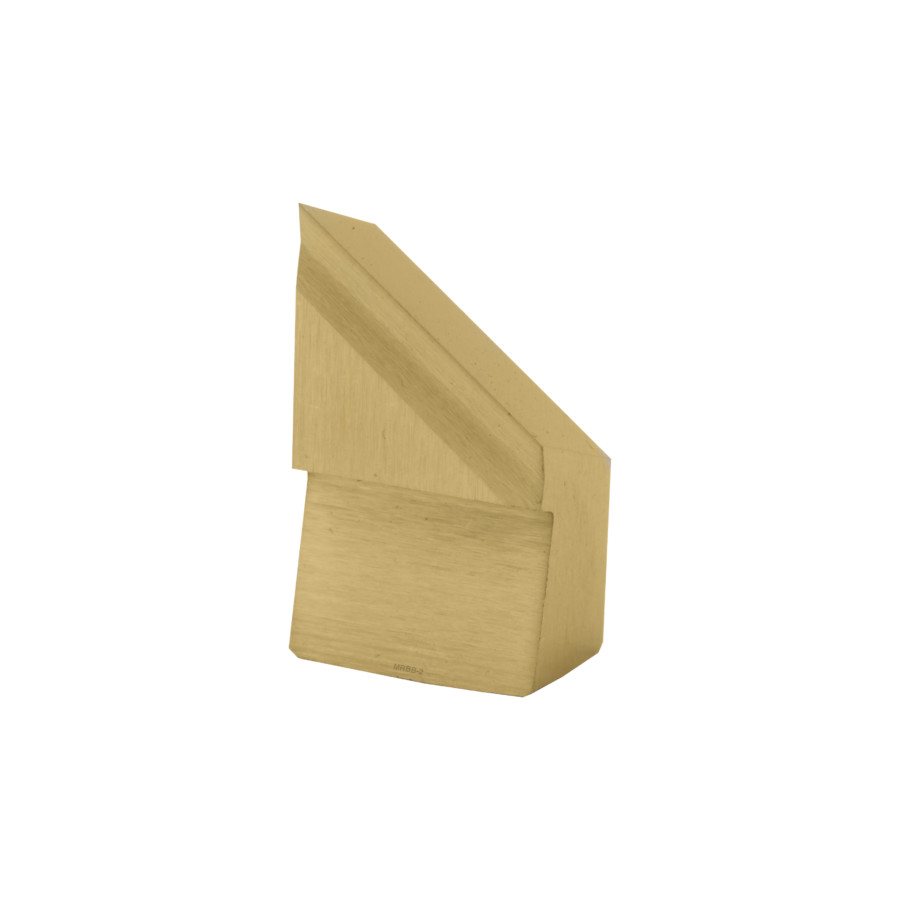

MRBB-2
37-1/2° Reverse Bevel Blade TiN
3/4" / 19.1mm wide

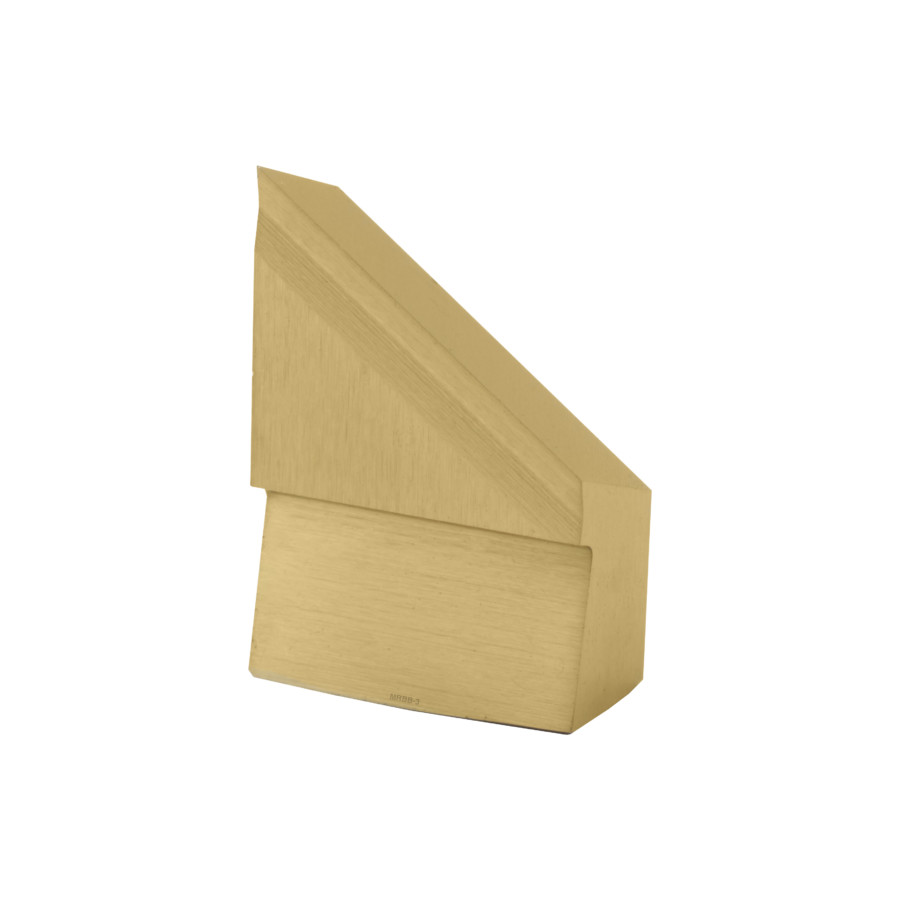

MRBB-3
37-1/2° Reverse Bevel Blade TiN
1" / 25.4mm wide

Tube Stub Removal Blades

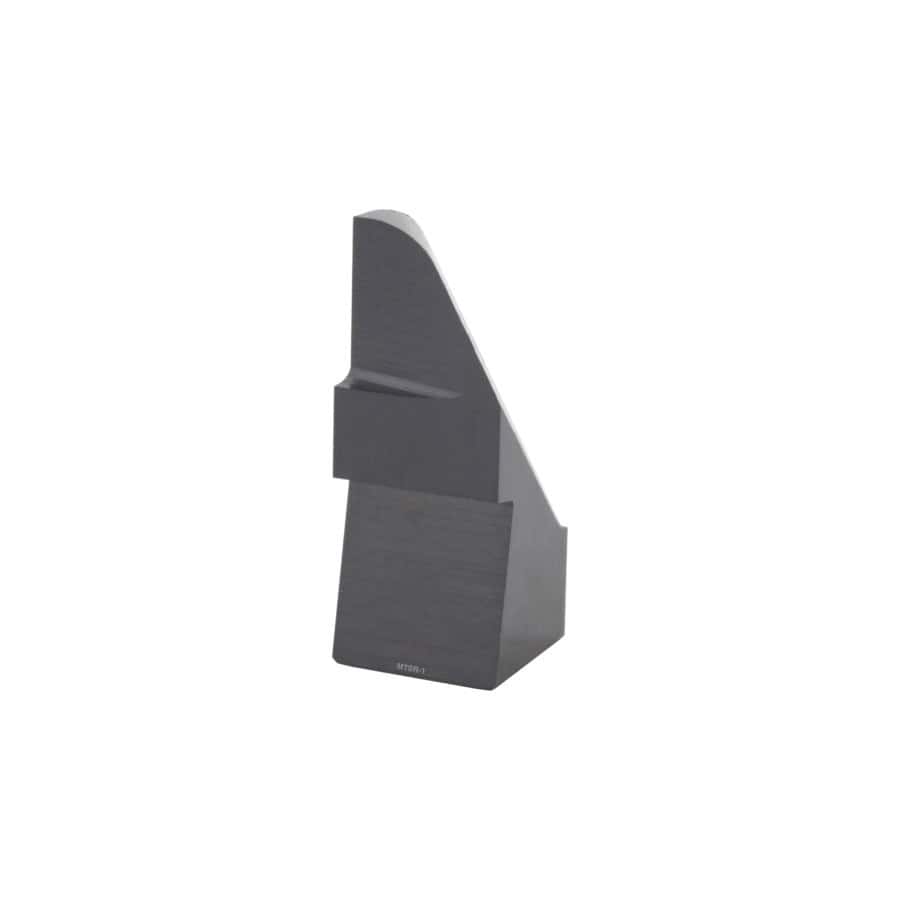

MTSR-1
30° Tube Stub Removal Blade HL
3/16" / 4.8mm radius
1/2" / 12.7mm wide

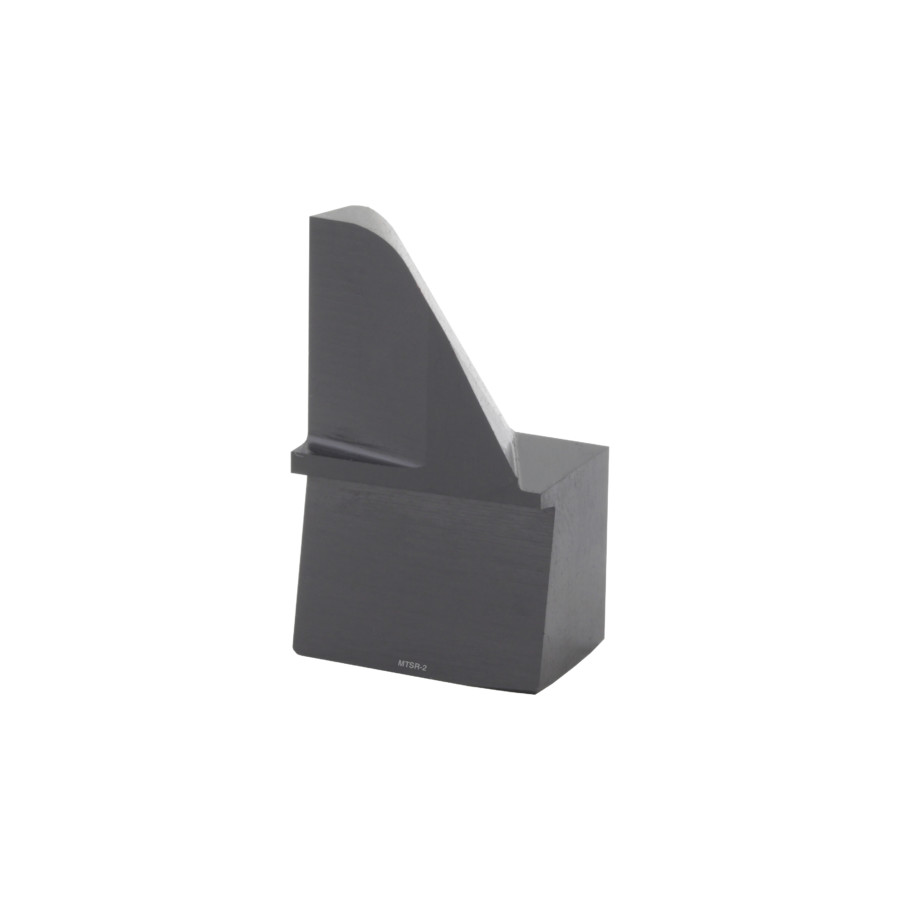

MTSR-2
30° Tube Stub Removal Blade HL
3/16" / 4.8mm radius
3/4" / 19.1mm wide

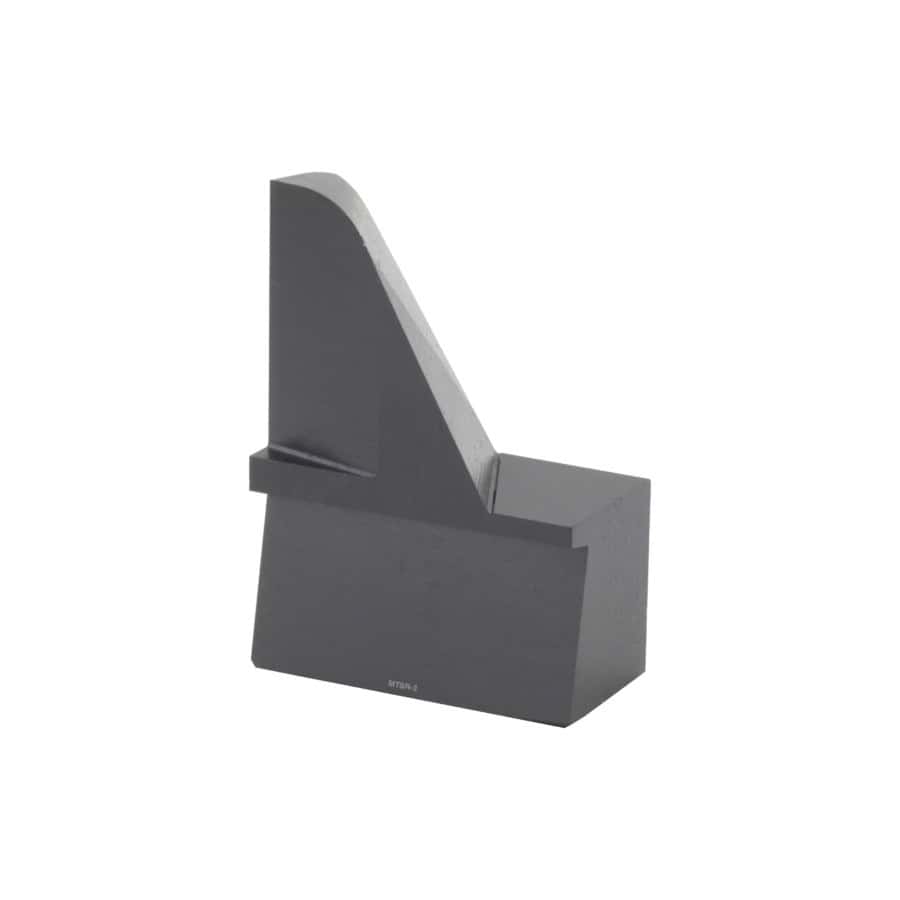

MTSR-3
30° Tube Stub Removal Blade HL
3/16" / 4.8mm radius
1" / 25.4mm wide

Tube Seat Removal Blades

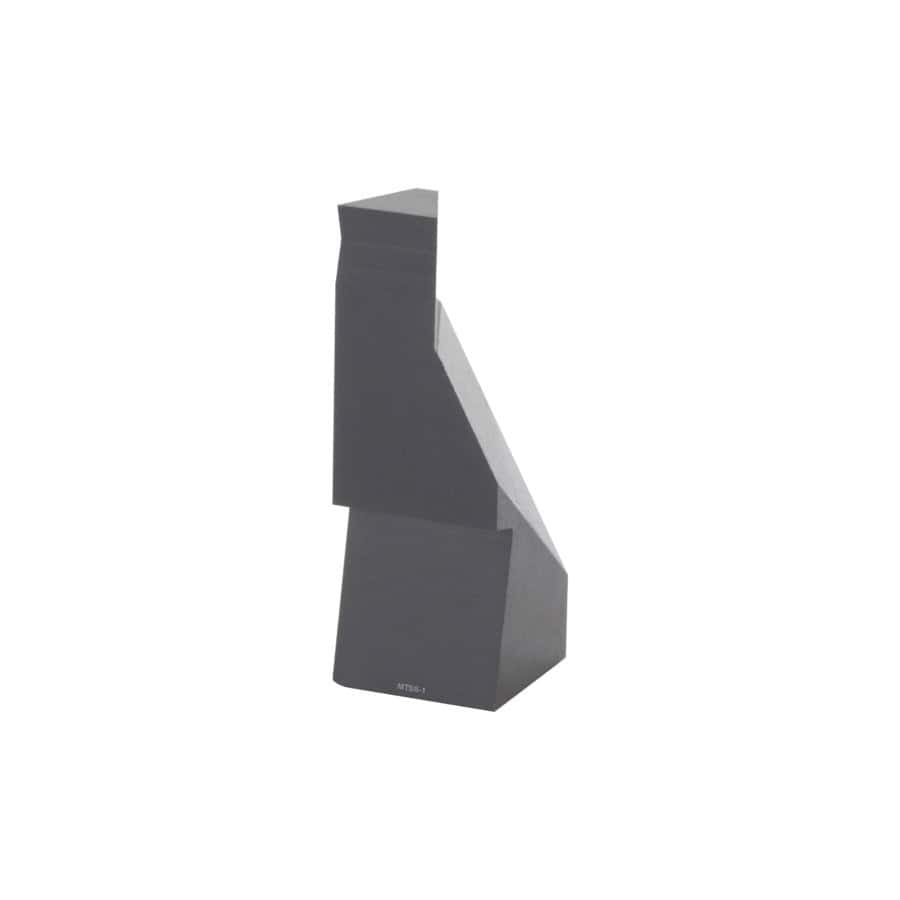

MTSS-1
Tube Seat Removal
Blade HL
1/2" / 12.7mm wide

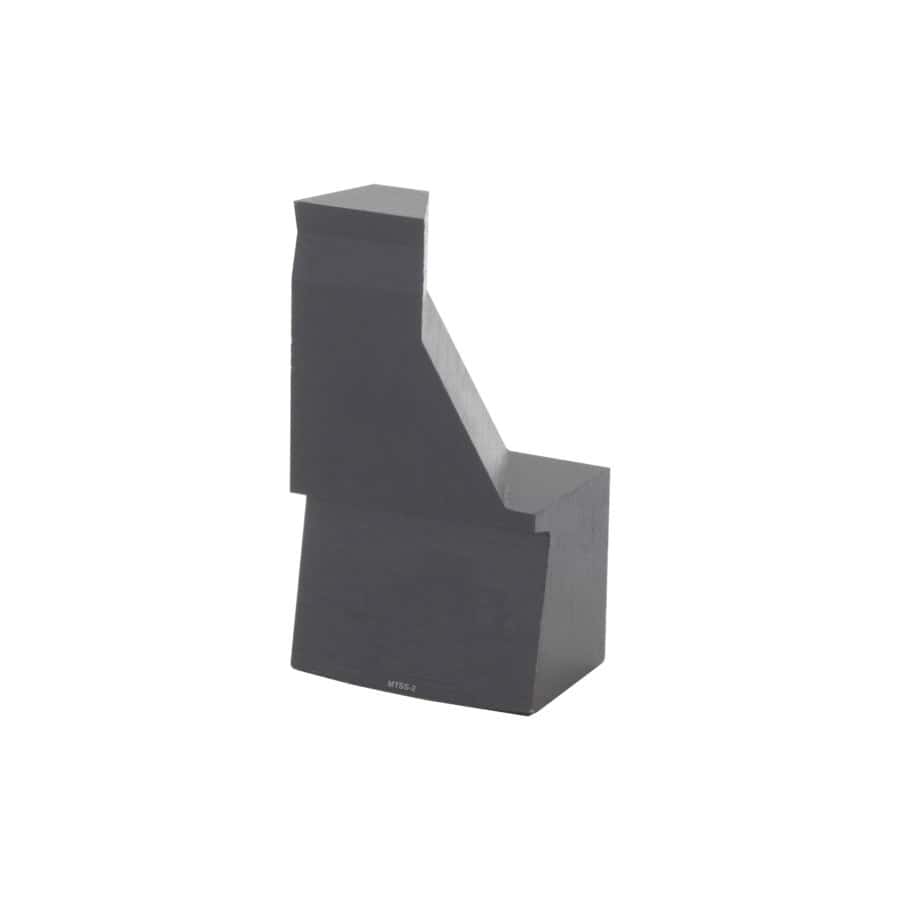

MTSS-2
Tube Seat Removal
Blade HL
3/4" / 19.1mm wide

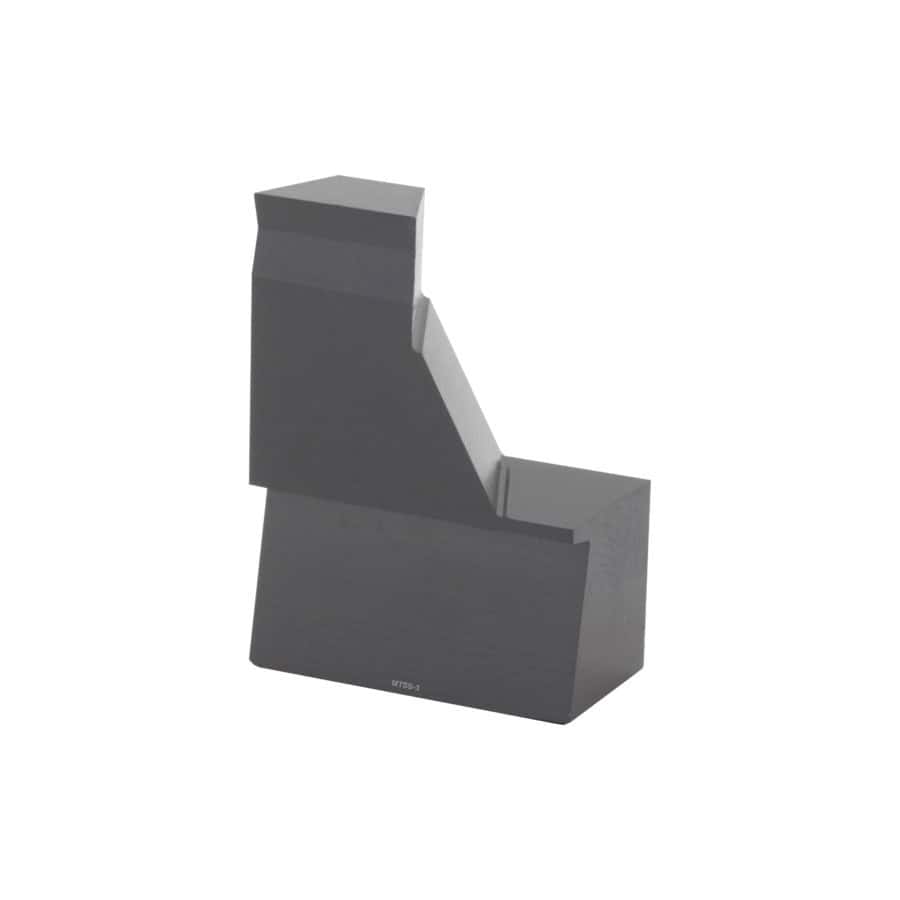

MTSS-3
Tube Seat Removal
Blade HL
1" / 25.4mm wide
