0.5″ O.D. – 3.0″ O.D.
12.7mm O.D. – 76.2mm O.D.
MILLHOG SERIES:
C-HOG

C-HoG

Red-MILLHOG_Transp-MILL-(1)

O.D. CLAMPING
TUBE & PIPE BEVELING MACHINE

0.5” O.D. - 3.0” O.D.
12.7mm O.D. to 76.2mm O.D.

C-Hog Millhog

0.5” I.D. - 3.0” O.D.
12.7mm I.D. - 76.2mm O.D.

Pneumatic
Electric
Battery
Pneumatic

Electric

Battery

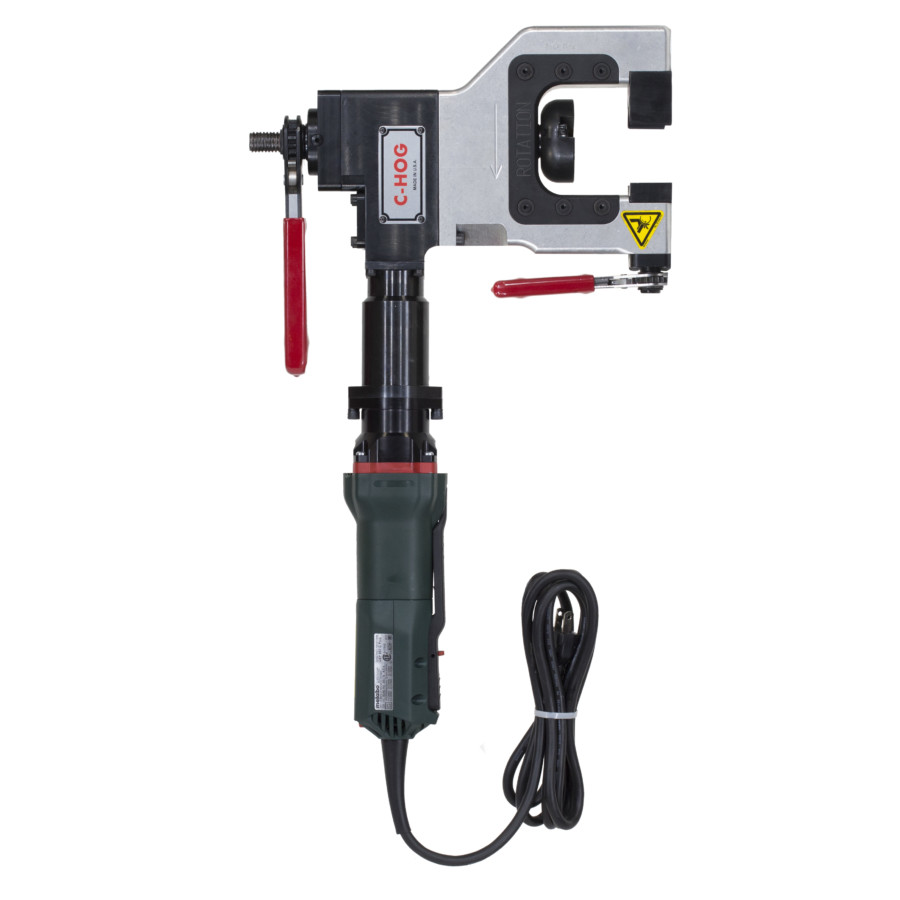

C-Hog MILLHOG

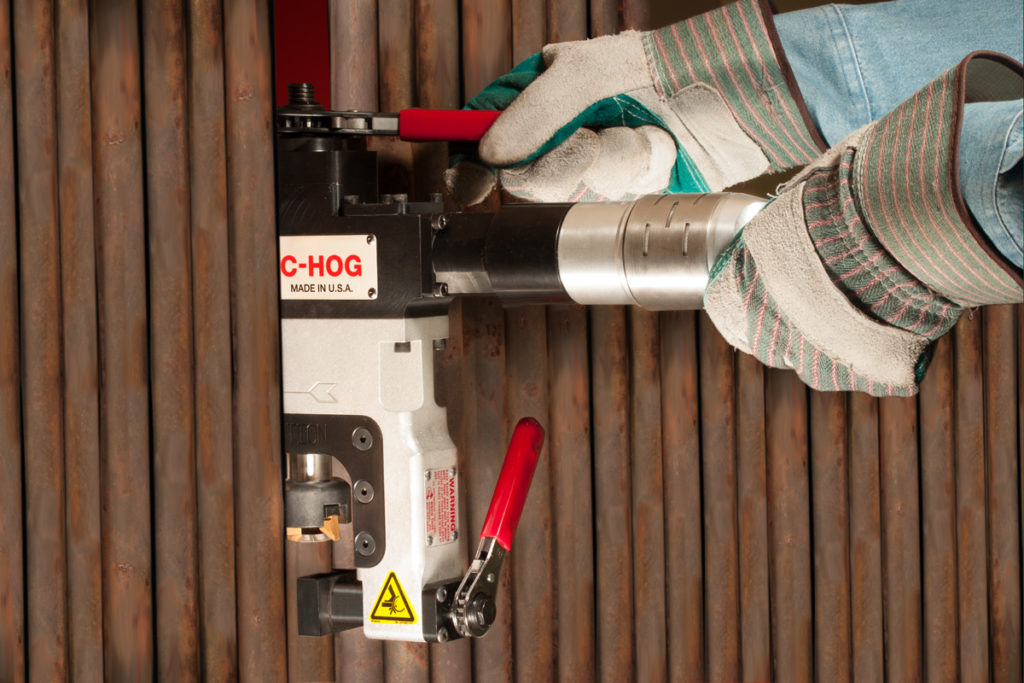

The C-Hog Beveling machine securely attaches to the tube O.D. with a huge clamp that minimizes chatter and vibration and is well suited for small bore tubes because there is no I.D. clamp or mandrel to interfere. The I.D. clearance gained also allows for large, tough I.D. boring blades that increase Cutter Blade endurance. Designed for maximum operator comfort, efficiency and ease of use, the C-Hog’s attached feed wrench lets the operator comfortably feed the tool as it bevels the tube with minimal fatigue. Constructed to deliver reliable performance on the toughest applications, the C-Hog is a rugged tool that is light weight and compact. Highly engineered, it incorporates state of the art materials and heat treated components.

Available Kits

Standard

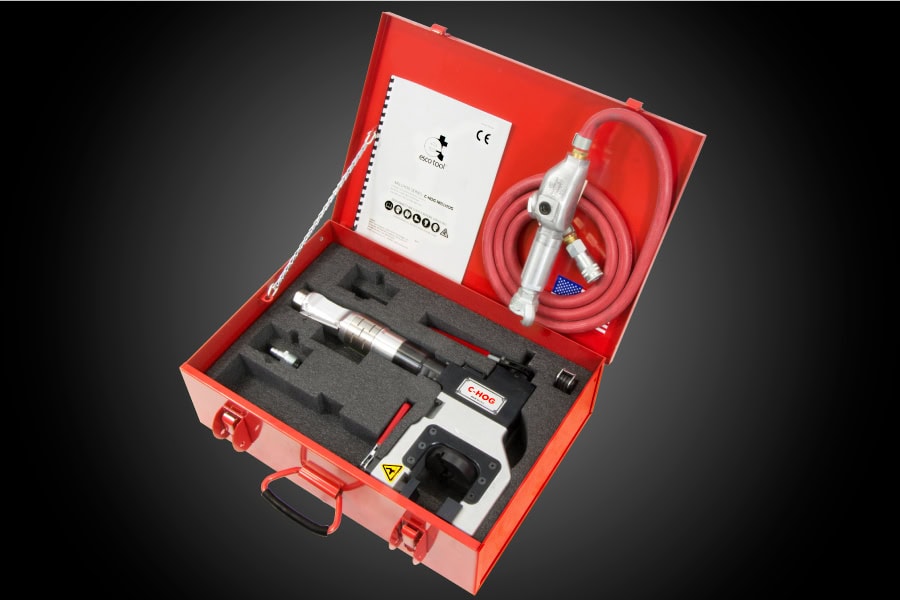

C-Hog MILLHOG Standard Kit #: CF-200

(1) Motor and gear drive assembly (specify motor)
(1) Clamp Saddle (specify tube/pipe O.D.)
(1) Clamp Wrench
(1) Cutterhead (see cutterhead chart for options)
(1) Carrying case
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 1/2" hose w/ filter, oiler & 3/8" coupler

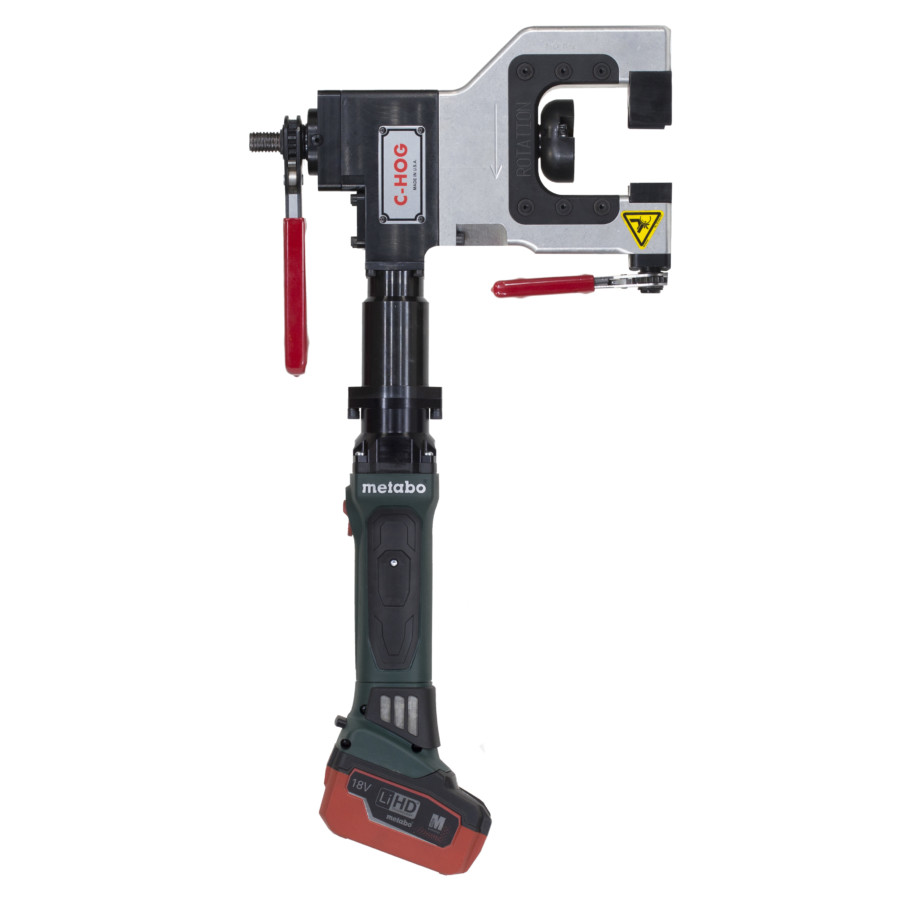

Battery motor options add:
(2) 5.2ah Li-Ion batteries
(1) Charger

Rental

Rental tool kits are setup and packaged to meet your specific job/application. This makes it so your tool is ready to go and only has parts necessary for your job, avoiding confusion and minimizing shipping costs.

  • Features
  • Specs
  • Accessories
  • Photos
  • Videos
  • Resources

FEATURES

  • Narrow body 1.75" (44.45mm)

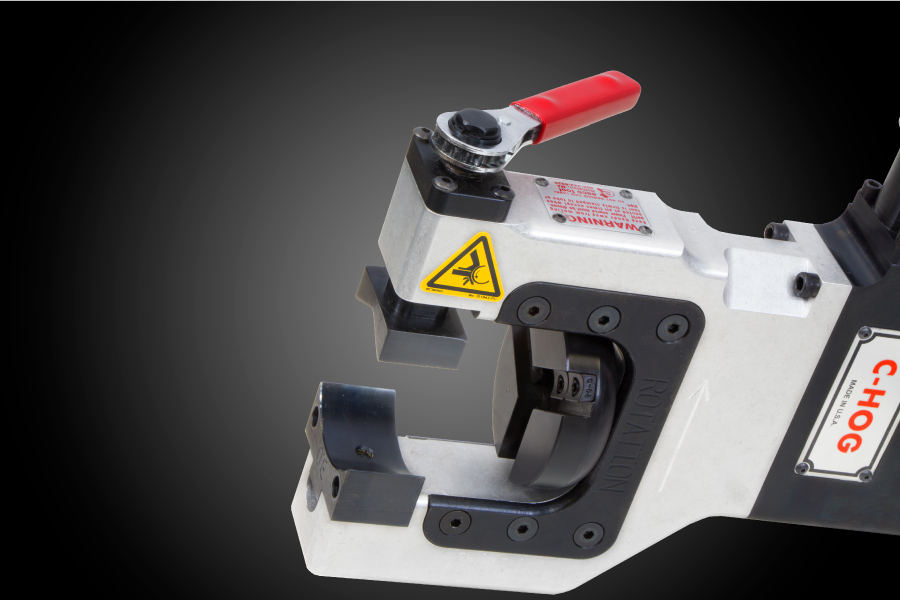

  • Large clamping surface rigidly holds tool for chatter-free bevels

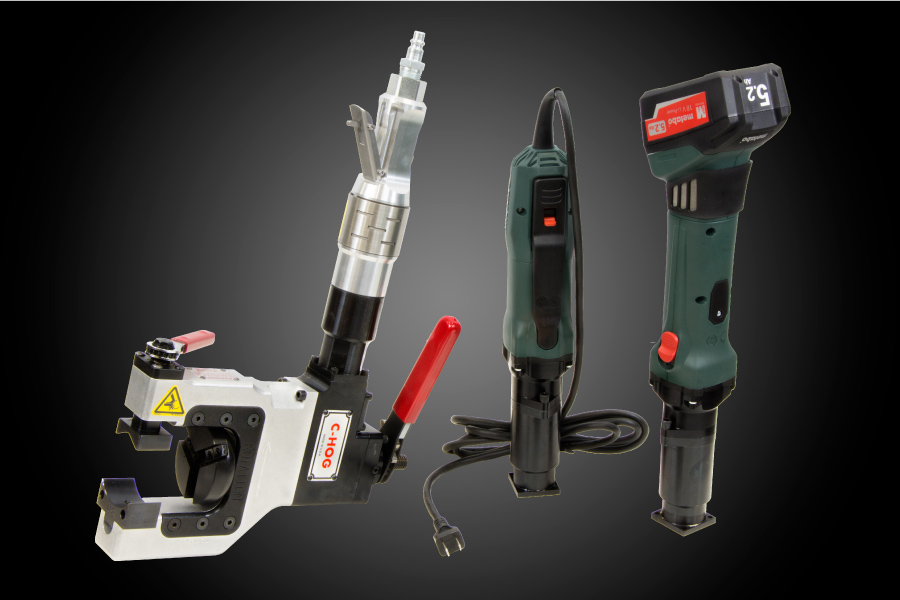

  • Powerful pneumatic, electric and battery motor options
  • No I.D. mandrel makes the C-Hog perfect for boring

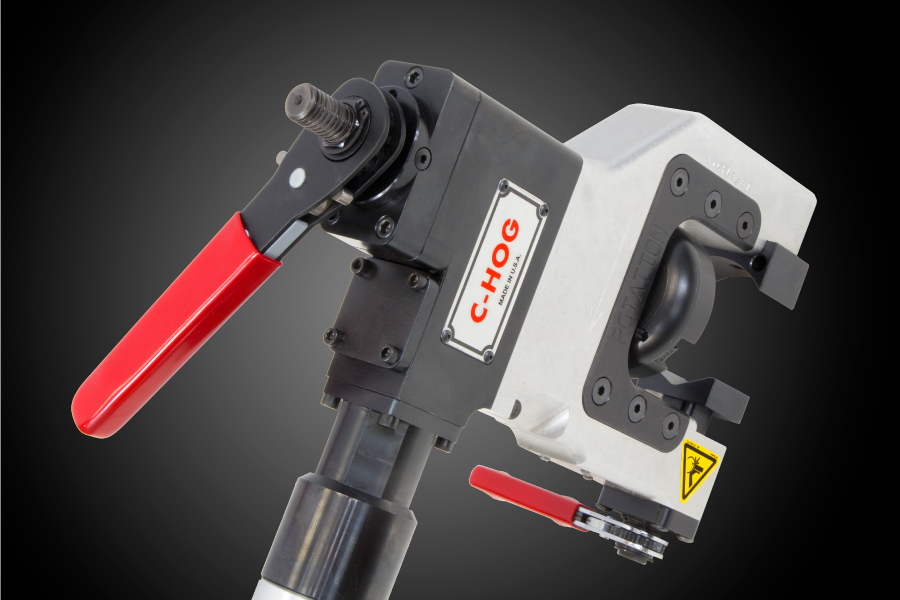

  • Robust wrenches are securely attached
  • Changing clamps and other tooling is easy
  • Low maintenance
  • Compact, light weight and rugged

SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range 0.5" I.D. - 3.0" O.D.
Blade Series G-Series Blades
Min. Width 1.75"
Length 9.7"
  Pneumatic Electric Battery
1.07 hp 950 W 18 V - 5.2 ah
90 psi 120 V 120 V
35 cfm 50/60 Hz 50/60 Hz
Cutterhead Speed 114 rpm 14-58 rpm 43 rpm
Max Working Weight 20.1 lbs 22.3 lbs 20.8 lbs
Shipping Weight 40 lbs 46 lbs 46.6 lbs
Shipping Dimensions 21" x 18" x 7" 17" x 31" x 8" 17" x 31" x 8"
METRIC
Working Range 15.9mm I.D. - 76.2mm O.D.
Blade Series G-Series Blades
Min. Width 57.2mm
Length 387.4mm
Pneumatic Electric Battery
800 W 950 W 18 V - 5.2 ah
6.2 bar 220 - 240 V 220 - 240 V
990 Lt/min 50/60 Hz 50/60 Hz
Cutterhead Speed 114 rpm 14-58 rpm 43 rpm
Max Working Weight 9.1 kg 10.1 kg 10.3 kg
Shipping Weight 18.1 kg 20.9 kg 21.1 kg
Shipping Dimensions 533mm x 457mm x 178mm 432mm x 787mm x 203mm 432mm x 787mm x 203mm

ACCESSORIES

RA Drive
RA Drive

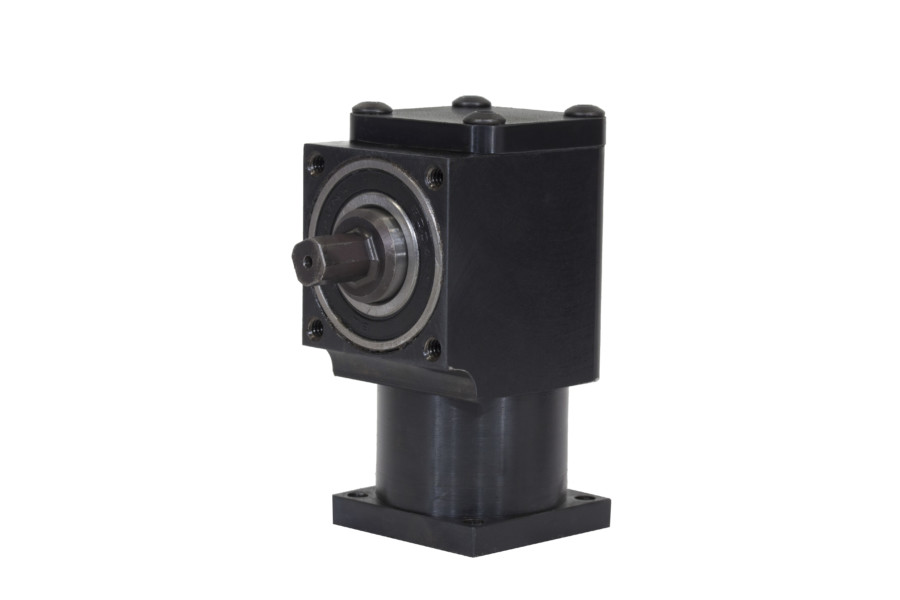

Right Angle Drive Part #: G-290

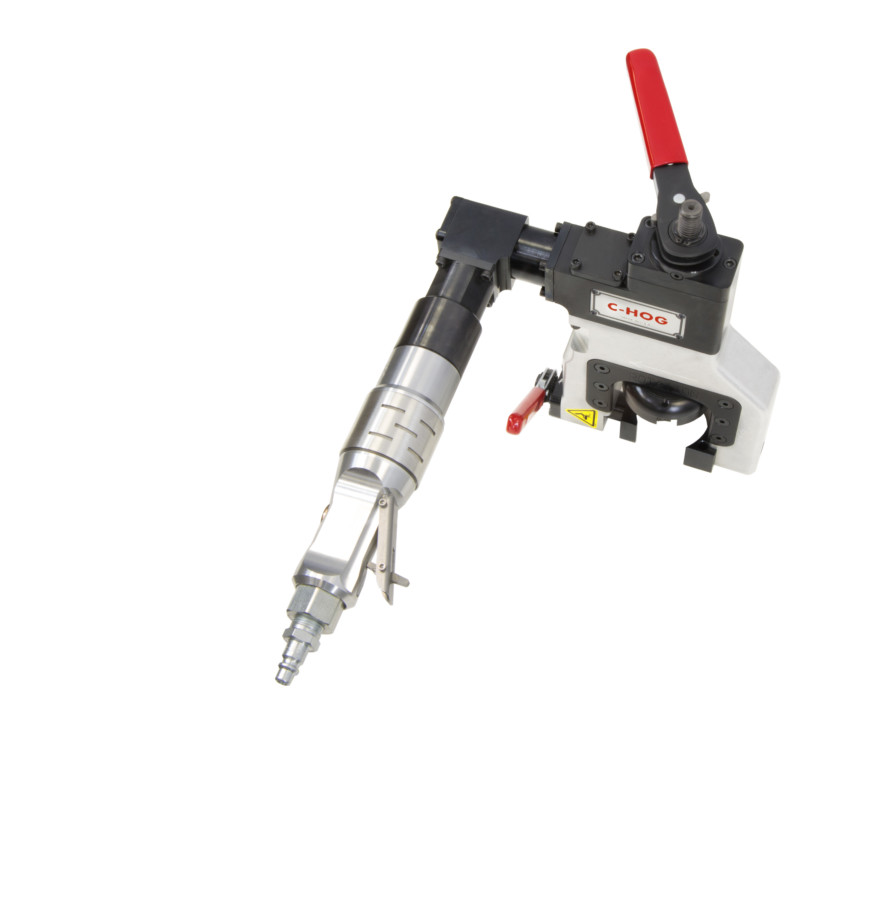

When space is limited, the C-Hog can be fitted with the Right Angle Drive (also fits Ground MILLHOG) so that the motors can be mounted to either side, or up/down. Like all of our tools, the Right Angle Drive, is constructed out of precision machined components and is easy to assemble with all three motor options.

Includes

(1) Right Angle Drive Complete
(4) Mounting Screws

Photos

VIDEOS

C-Hog Demo

RESOURCES

Charts

CUTTERHEAD CHART - C-HOG MILLHOG
Cutterhead Size (in) Cutterhead Size (mm) Cutterhead Part #
1.75 44.5 CF-35
2.0 50.8 CF-35A
2.25 57.2 CF-35B
2.5 63.5 CF-35C
3.0 76.2 CF-35D

Links

G-Series Blades

Documents

Brochure
