4.5″ I.D. – 24.0″ O.D.
114.3mm I.D. – 609.6mm O.D.
MILLHOG SERIES:
DICTATOR II

Dictator II

Red-MILLHOG_Transp-MILL-(1)

I.D. CLAMPING
PIPE BEVELING MACHINE

4.5” I.D. - 24.0” O.D.
114.3mm I.D. - 609.6mm O.D.

Dictator II Millhog

4.5” I.D. - 24.0” O.D.
114.3mm I.D. - 609.6mm O.D.

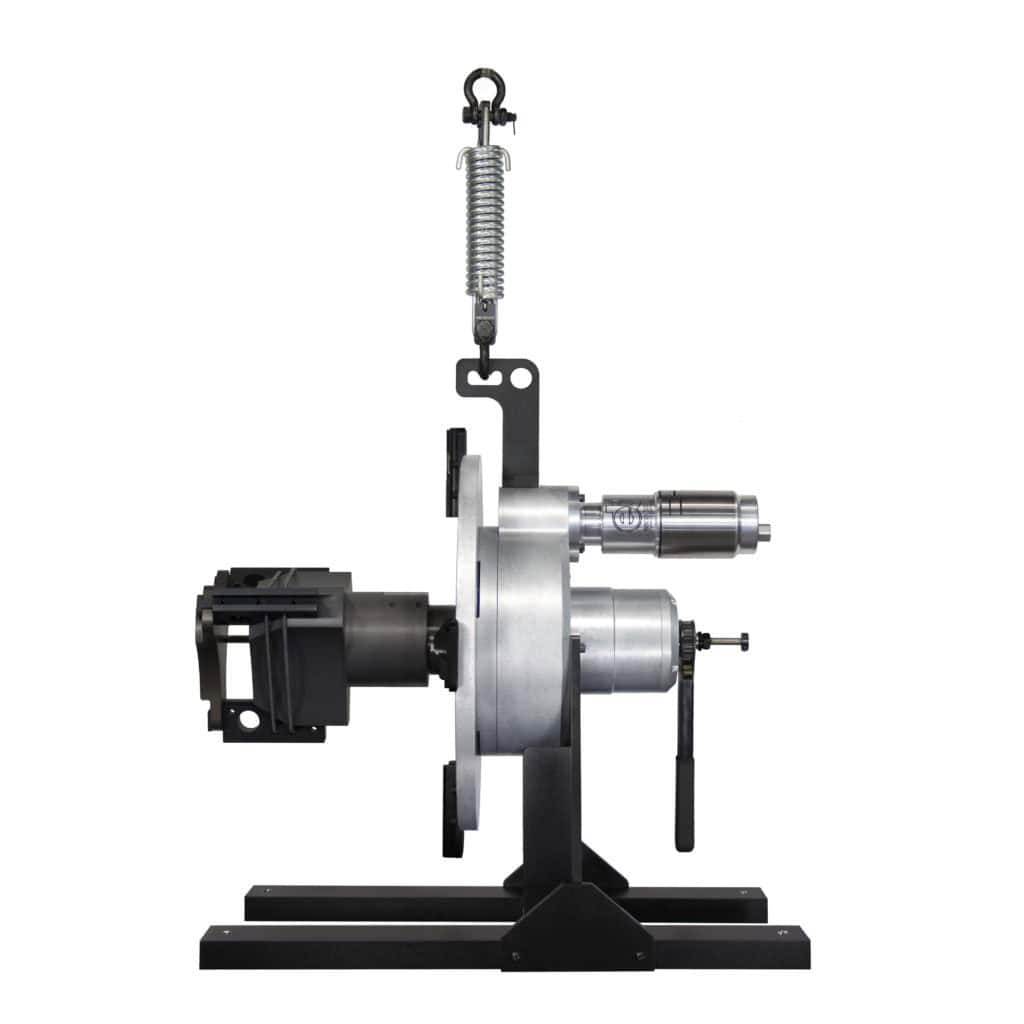

Pneumatic

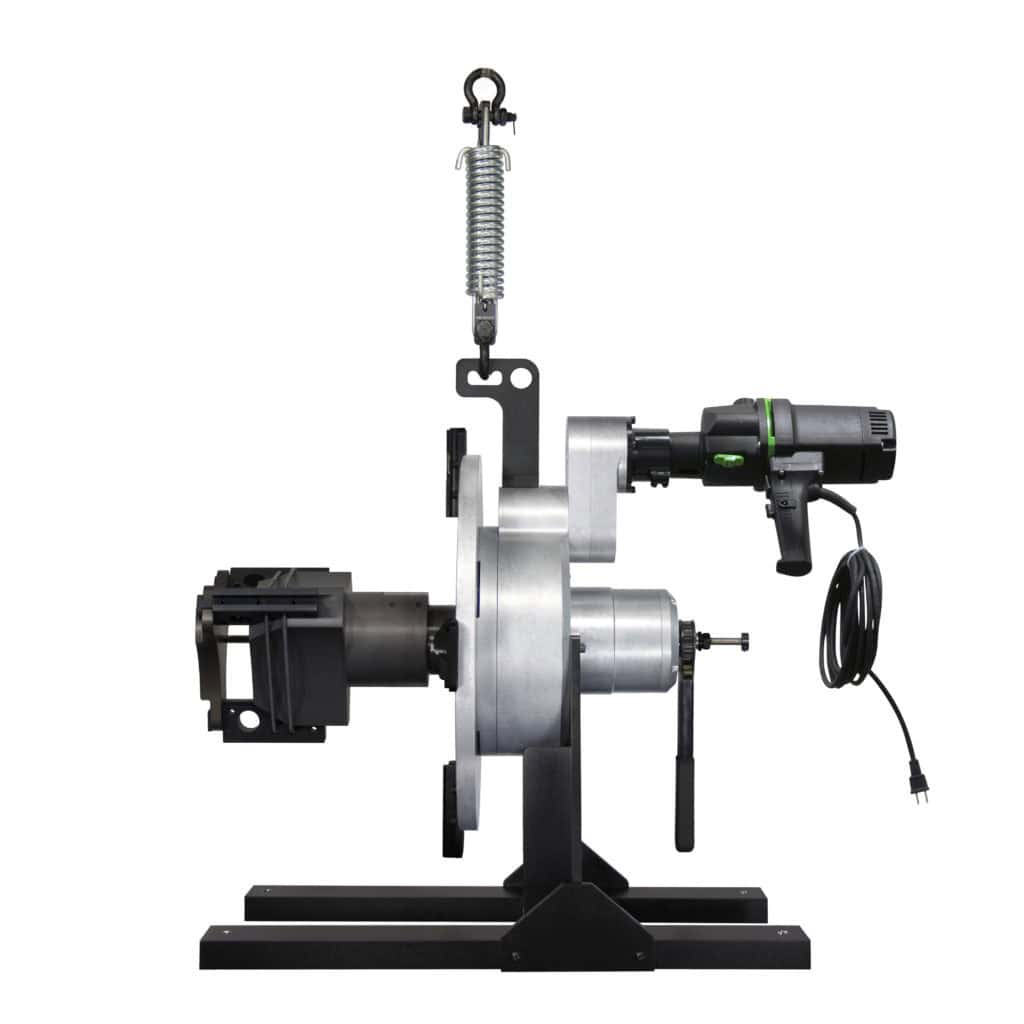

Electric

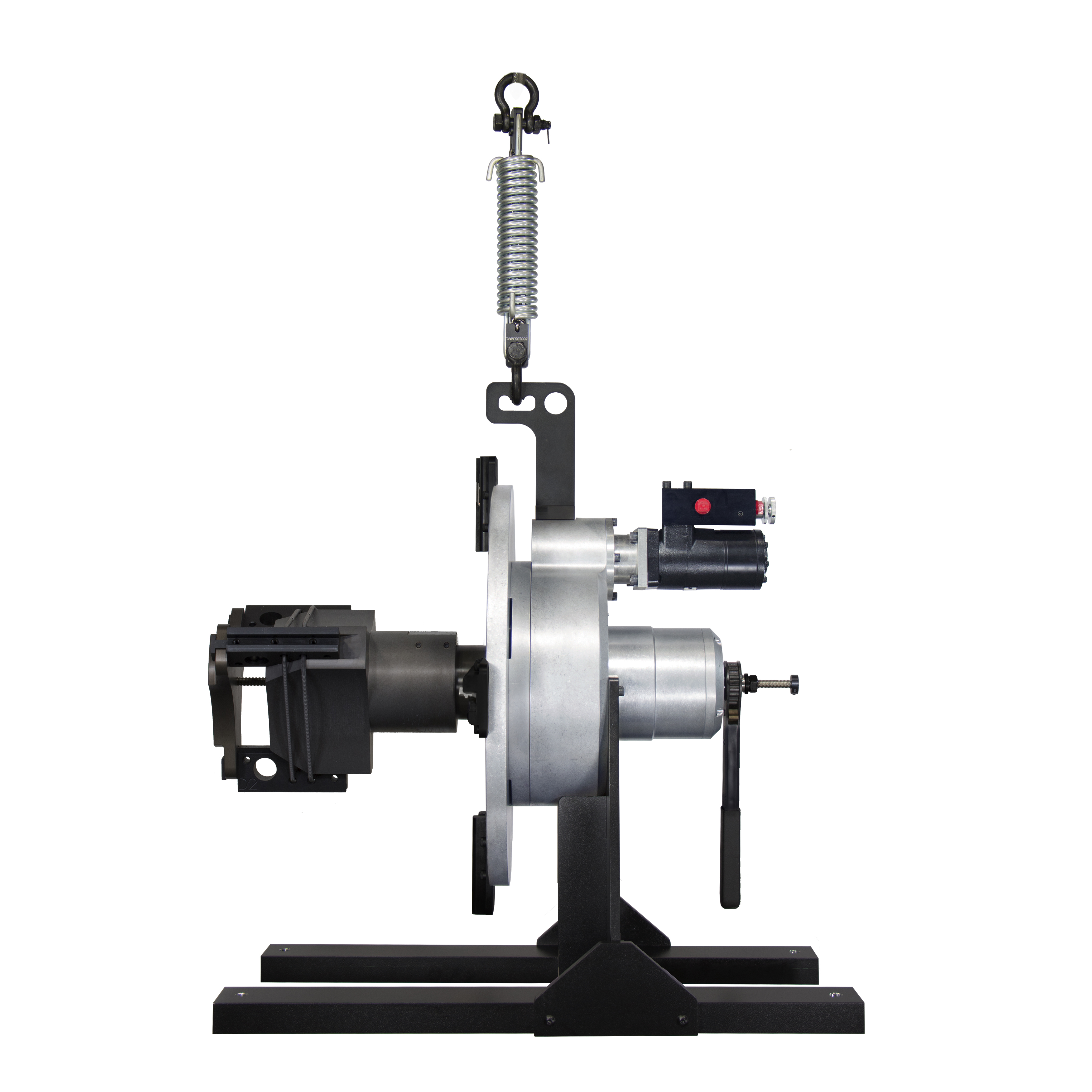

Hydraulic
Pneumatic


Electric

Hydraulic

Dictator II MILLHOG

The Dictator II MILLHOG performs any degree of bevel on pipe from 4.5" (114.3mm) I.D. to 24" (609.6") O.D. up to 2.0" (50.8") wall, without cutting fluids while assuring maximum cutter blade life. It has wide self-centering clamps that produce a superior clamping force for chatter-free bevels on all types of highly alloyed pipe. As an expansion to the original Dictator, the Dictator II uses a wedge and actuator combined with an expanded cutterhead to cover its large range. In addition to the enlarged cutting and clamping hardware, the Dictator II kit comes with our patented Safety Spring Hanger, a multi-position goose-neck hoist, and a powder-coated stand for easy maneuverability and storage.

Available Kits

Basic

Dictator II MILLHOG Basic Kit #: DII-200

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Wedge 10" (254mm)
(2) Draw rod assembly
(2) Blade Block
(1) Stand
(1) Spring hanger with bracket
(1) Shipping and storage container
(1) Operating and maintenance inst.

Note:

CLAMP RIBS AND PADS SOLD SEPARATELY (see clamp rib chart)

Pneumatic motor options add:
(1) 3/4" hose w/ filter, oiler & 1/2" coupler

Electric motor options add:
(1) CD-GB Gear Box

Complete

Dictator II MILLHOG Complete Kit #: DII-300

(1) Motor and gear drive assembly (specify motor)
(1) Feed mechanism
(1) Wedge 10" (254mm)
(2) Draw rod assembly
(2) Blade Block
(8) Clamp rib/pad sets D-02 - D-08
(1) Stand
(1) Safety Spring Hanger & Hoist
(1) Shipping and storage container
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 3/4" hose w/ filter, oiler & 1/2" coupler

Electric motor options add:
(1) CD-GB Gear Box

Rental

Rental tool kits are setup and packaged to meet your specific job/application. This makes it so your tool is ready to go and only has parts necessary for your job, avoiding confusion and minimizing shipping costs.

  • Features
  • Specs
  • Accessories
  • Photos
  • Videos
  • Resources

FEATURES

  • One mandrel/wedge and 8 sets of clamps cover the entire range
  • Wide clamps spread contact for superior clamping force and rigidity
  • Three powerful motor options that are easily switched
  • Comes with spring hanger, goose-neck hanger, and stand for safe storage/transportation
  • Bevel, face and bore simultaneously
  • Rugged dual-opposed tapered roller bearings support the gear drive for non-stop operation
  • EscoLock cutter blade holding system reduces vibration and maximizes the number of preps per blade

SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range 4.5" I.D. - 24.0" O.D.
Blade Series M-Series Blades
Min. Width 22.0"
Head Length 14.5"
Pneumatic Electric Hydraulic
3.0 hp 1800 W 5 hp
90 psi 120 V 1500 psi
95 cfm 50/60 Hz 5 - 10 gpm
Cutterhead Speed 15 rpm Gear Box Included 1-14 rpm
Cutterhead Speed (gear box) 7.5 rpm 6.5 - 22.5 rpm 1 - 7 rpm
Working Weight 265 lbs 278 lbs 269 lbs
Shipping Weight 503 lbs 516 lbs 507 lbs
Shipping Dimensions 41" x 25.5" x 40" 41" x 25.5" x 40" 41" x 25.5" x 40"
METRIC
Working Range 114.3mm I.D. - 457.2mm O.D.
Blade Series M-Series Blades
Min. Width 558.8mm
Length 368.3mm
Pneumatic Electric Hydraulic
2237 W 1800 W 3729 W
6.2 bar 220 - 240 V 103.4 bar
2690 Lt/min 50/60 Hz 30.5 - 45.4 Lt/min Hz
Cutterhead Speed 15 rpm Gear Box Included 1 - 22 rpm
Cutterhead Speed (gear box) 7.5 rpm 6.5 - 22.5 rpm 1 - 11 rpm
Working Weight 120.2 kgs 126.1 kgs 122.0 kgs
Shipping Weight 228.2 kgs 236.1 kgs 230.0 kgs
Shipping Dimensions 1041mm x 648mm x 1016mm 1041mm x 648mm x 1016mm 1041mm x 648mm x 1016mm

ACCESSORIES

Adjustable Tool Post
Blade Block
Gear Box
RA Drive
Adjustable Tool Post

Adjustable Tool Post Part #: D-57

The D-57 Adjustable Tool Post allows operators to fine tune their cutting blades to precisely the right position for the most accurate weld prep profiles when using the Commander, Dictator, and Dictator II MILLHOG machines. This kit features a carriage design as well as the ESCO wedge style blade lock system that has provided unparalleled rigidity in the beveling market for decades.

Includes

(1) D-57 Adjustable Tool Post
(2) Blade locks
(2) Blade lock screws
(4) Mounting screws
(1) 3/16 short arm allen wrench

Blade Block

Blade Block Part #: D-52

The Dictator II MILLHOG cutterhead has 4 positions to mount blade blocks so that multiple angles of bevel can be performed at once. Both the basic and complete kits come with 2 blade blocks, but additional blade blocks can be purchased separately.

Includes

(1) Tool post
(6) Blade locks
(6) Blade lock screws
(4) Mounting screws

Gear Box

Torque Multiplier Gear Box Part #: CD-GB

The Torque Multiplier Gear Box fits both the Commander and Dictator and is designed to be easily installed with all motor options. When the Gear Box is attached, the cutterhead rpm is cut in half while torque is doubled, making it ideal for larger pipe or pipe with heavy wall thickness.

Includes

(1) Gear box assembly complete
(4) Mounting screws
(2) Motor keys

RA Drive

Right Angle Drive Part #: CD-RA

The Right Angle Drive easily attaches to the Commander or Dictator housing so that the motor can be mounted to the side of the tool, rather than straight. This allows for adaptation when there are space restrictions on a job site, but does not compromise the function of the tool.

Includes

(1) Right angle drive assembly
(4) Mounting screws
(2) Motor keys

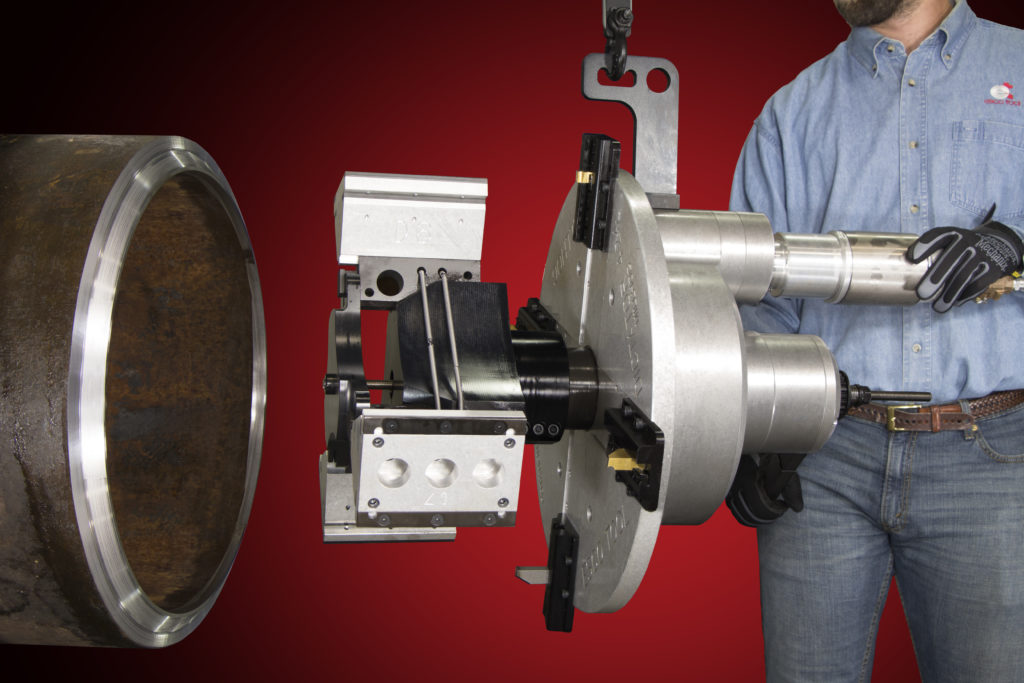

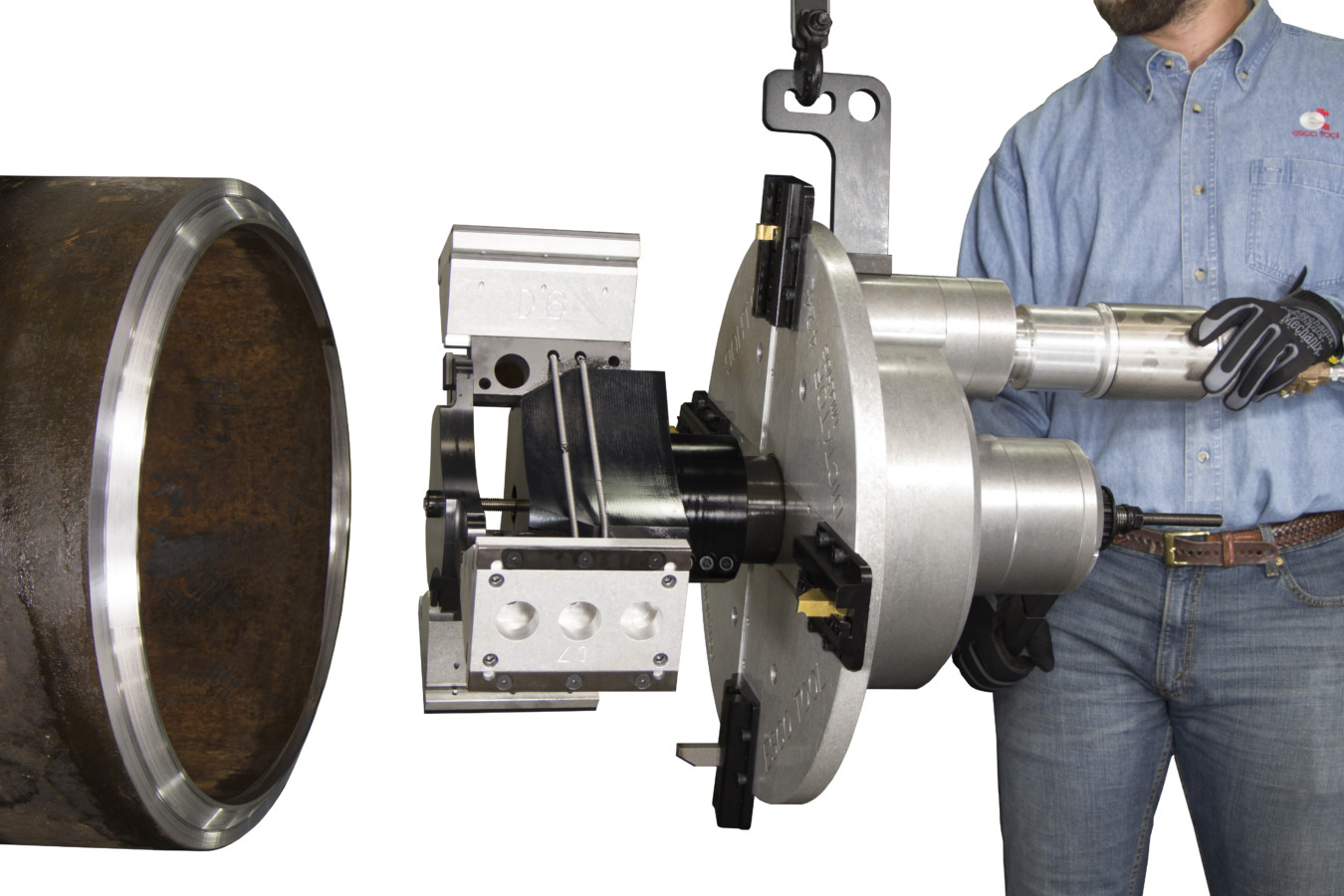

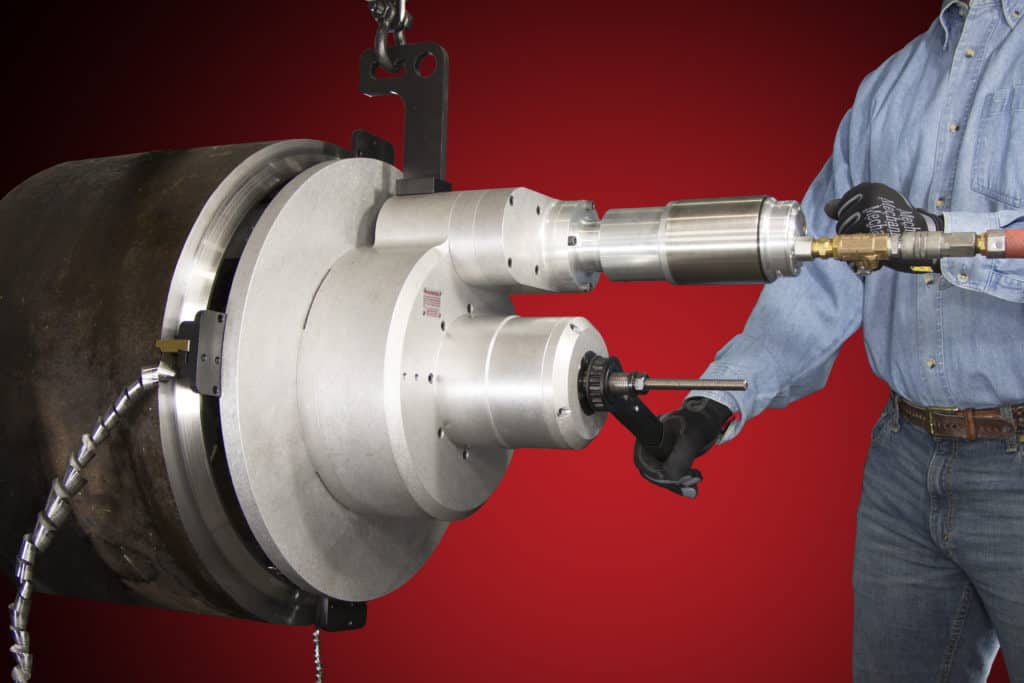

Photos

RESOURCES

Charts

CLAMP RIB CHART - DICTATOR II MILLHOG
Mandrel Clamp Rib Set I.D. Range (in) I.D. Range (mm)
Standard 4.0" (101.6mm) D-01 4.500 - 5.625 114.3 - 142.9
D-02 5.500 - 6.625 139.7 - 168.3
D-03 6.500 - 7.625 165.1 - 193.74
D-02 & D-04 7.500 - 8.625 190.5 - 219.1
D-03 & D-04 8.500 - 9.625 215.9 - 244.5
D-02 & D-05 9.500 - 10.625 241.3 - 269.9
D-03 & D-05 10.500 - 11.625 266.7 - 295.3
D-02 & D-06 11.500 - 12.625 292.1 - 320.7
D-03 & D-06 12.500 - 13.625 317.5 - 346.1
D-02 & D-06 & D-07 13.500 - 14.625 342.9 - 371.5
D-03 & D-06 & D-07 14.500 - 15.625 368.3 - 369.9
D-02 & D-08 15.500 - 16.625 393.7 - 422.3
D-03 & D-08 16.500 - 17.625 419.1 - 447.7
Wedge 10.0" (254.0mm) D-01 10.500 - 12.260 266.7 - 311.4
D-02 11.250 - 13.000 285.8 - 330.2
D-03 12.240 - 14.000 310.9 - 355.6
D-02 & D-04 13.150 - 14.890 334.0 - 378.2
D-03 & D-04 14.310 - 15.880 363.5 - 403.4
D-02 & D-05 15.070 - 16.800 382.8 - 426.7
D-03 & D-05 16.050 - 17.780 407.7 - 451.6
D-02 & D-06 17.070 - 16.800 433.6 - 477.3
D-03 & D-06 18.040 - 19.770 458.2 -  502.2
D-02 & D-06 & D-07 19.010 - 20.720  482.9 - 526.3
D-03 & D-06 & D-07 19.980 - 21.690 507.5 - 550.9
D-02 & D-08 20.970 - 22.670 532.6 - 575.8
D-03 & D-08 21.930 - 23.630 557.0 - 600.2
