8.75″ I.D. – 36.0″ O.D.
222.3mm I.D. – 914.4mm O.D.
MILLHOG SERIES:
TERMINATOR

Terminator

Red-MILLHOG_Transp-MILL-(1)

I.D. CLAMPING
PIPE BEVELING MACHINE

8.75” I.D. - 36” O.D.
222.25mm I.D. - 914.4mm O.D.

Terminator Millhog

8.75” I.D. - 36.0” O.D.
222.25mm I.D. - 914.4mm O.D.

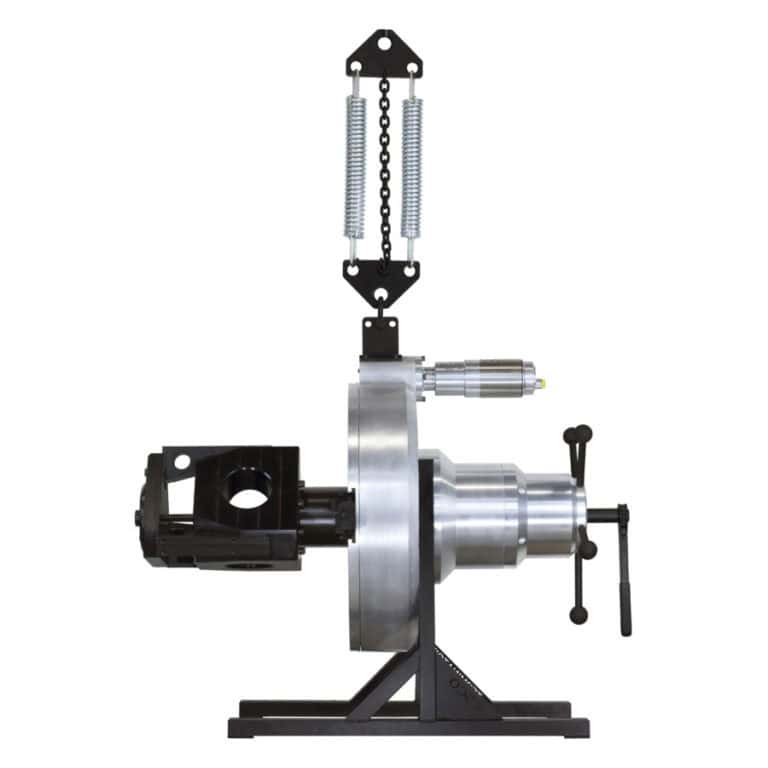

Pneumatic

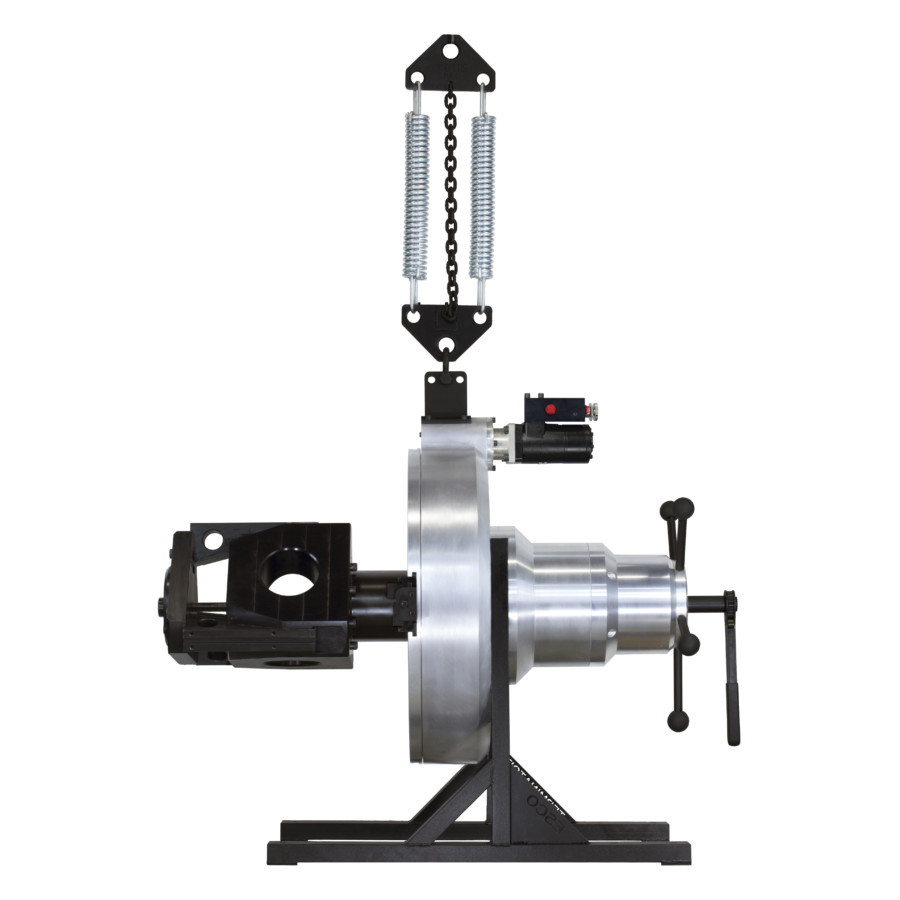

Hydraulic
Pneumatic

Hydraulic

Terminator MILLHOG

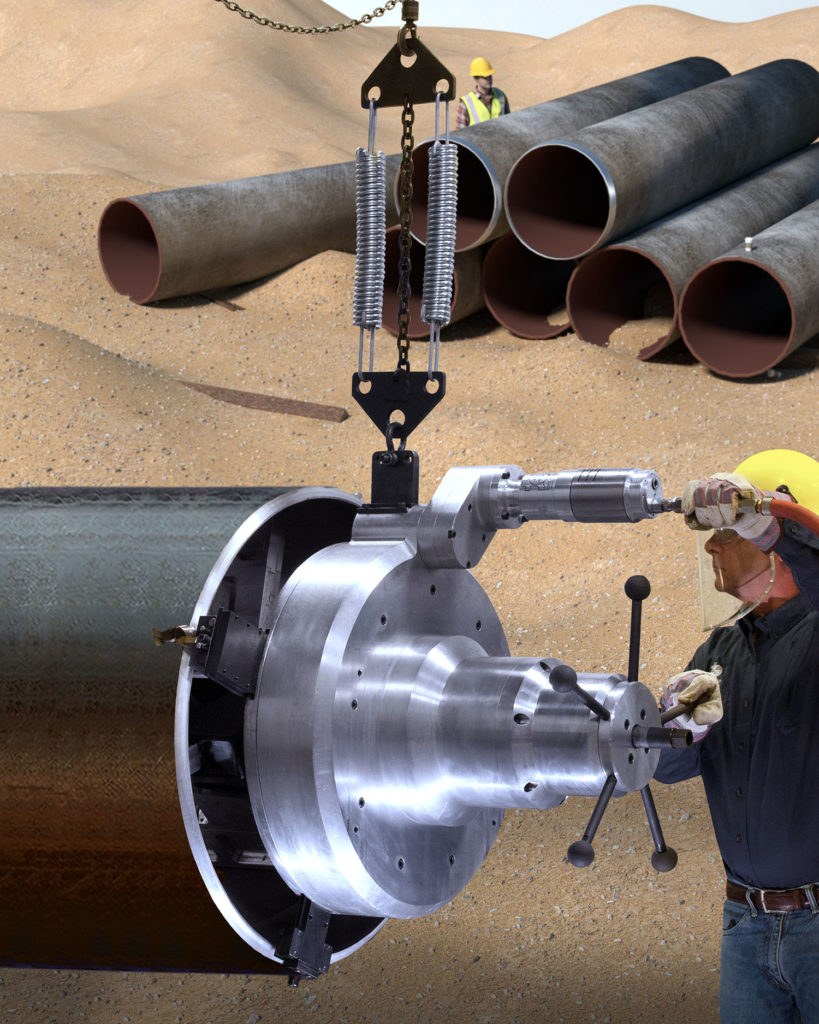

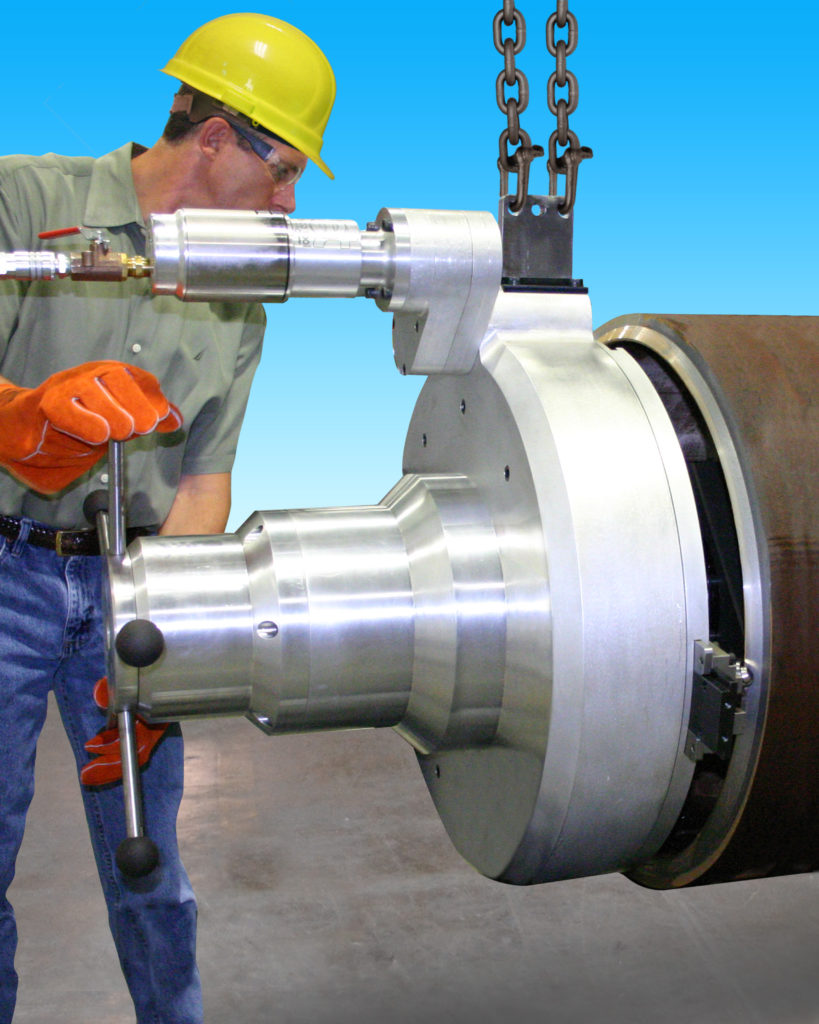

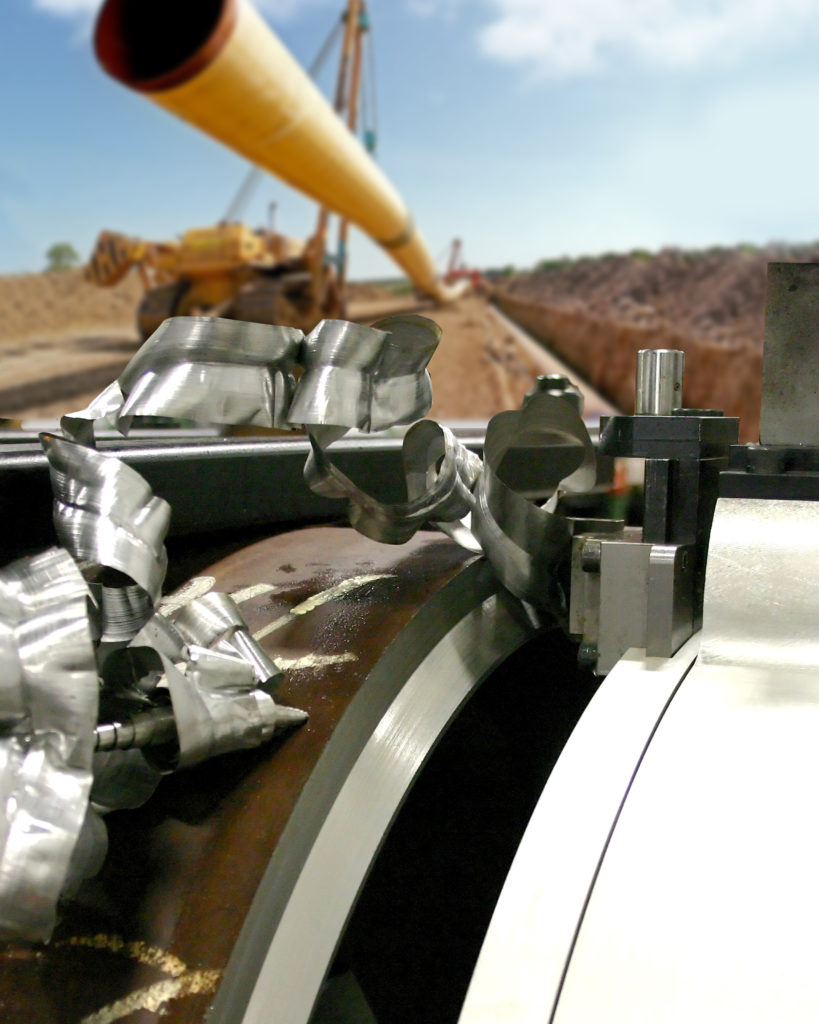

The Terminator MILLHOG is a ruggedly constructed precision pipe beveling machine for performing weld joint bevels at any angle on pipe ends up to 36". Built with state of the art materials that are precision machined, heat treated and hardened, the Terminator is designed to provide years of trouble free service on the toughest applications. The included Safety Spring Hanger permits the Terminator to be safely and easily aligned and secured square to the pipe.

Available Kits

Basic

Terminator MILLHOG Basic Kit #: T-1000

I.D. 8.625" - 26.750"
I.D. 219.1mm - 679.5mm

(1) Motor and tool base assembly (specify motor)
(1) Feed mechanism
(1) Small wedge
(1) Draw rod and small actuator
(5) Clamp Rib/Pad sets T-01 - T-05
(1) Clamp pad extension T-219
(2) Tool post base assembly
(1) Flat tool post
(1) Spring hanger
(2) Legs
(1) Shipping & storage container
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 3/4" hose w/ filter, oiler & 1/2" coupler

Standard

Terminator MILLHOG Standard Kit #: T-2000

I.D. 14.75" - 36.5"
I.D. 374.7mm - 914.4mm

(1) Motor and tool base assembly (specify motor)
(1) Feed mechanism
(1) Large wedge
(1) Draw rod and large actuator
(5) Clamp Rib/Pad sets T-01 - T-05
(1) Clamp pad extension T-219
(2) Tool post base assembly
(1) Flat tool post
(1) Spring hanger
(2) Legs
(1) Shipping and storage container
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 3/4" hose w/ filter, oiler & 1/2" coupler

Complete

Terminator MILLHOG Complete Kit #: T-3000

I.D. 8.625" - 36.5"
I.D. 219.1mm - 914.4mm

(1) Motor and tool base assembly (specify motor)
(1) Feed mechanism
(1) Large wedge
(1) Small wedge
(1) Draw rod and large actuator
(1) Draw rod and small actuator
(5) Clamp Rib/Pad sets T-01 - T-05
(2) Clamp pad extension T-219 & T-374
(2) Tool post base assembly
(1) Flat tool post
(1) Spring hanger
(2) Legs
(1) Shipping & storage container
(1) Operating and maintenance inst.

Note:

Pneumatic motor options add:
(1) 3/4" hose w/ filter, oiler & 1/2" coupler

Rental

Rental tool kits are setup and packaged to meet your specific job/application. This makes it so your tool is ready to go and only has parts necessary for your job, avoiding confusion and minimizing shipping costs.

  • Features
  • Specs
  • Accessories
  • Photos
  • Videos
  • Resources

FEATURES

  • Rigidly clamps to pipe up to 36"
  • Pneumatic or hydraulic motor options
  • 8 sets of clamp ribs/pads and 2 wedges cover entire range
  • Formed tool bits can be used for wall thickness up to 2.5"
  • Preps all alloys
  • Bevel, face and bore simultaneously
  • Simple to operate
  • Patented safety chain and dual spring hanger makes tool alignment easy and safe
  • Adjustable tool posts with preset angles

SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range 8.75" I.D. - 36.0" O.D.
Blade Series M-Series Blades
Min. Width 30"
Head Length 50"
Pneumatic Hydraulic
5 hp 5 hp
90 psi 1500 psi
95 cfm 8-12 gpm
Cutterhead Speed 4 rpm 1 - 4 rpm
Cutterhead Speed (gear box) 2 rpm 1 - 2 rpm
Working Weight 700 lbs 704 lbs
Shipping Weight 1375 lbs 1379 lbs
Shipping Dimensions 36" x 54" x 48" 36" x 54" x 48"
METRIC
Working Range 222.25mm I.D. - 914.4mm O.D.
Blade Series M-Series Blades
Min. Width 762mm
Length 1270mm
Pneumatic Hydraulic
3728 W 3728 W
6.2 bar 102 bar
2690 Lt/min 30.3-45.4 L/min
Cutterhead Speed 4 rpm 1 - 4 rpm
Cutterhead Speed (gear box) 2 rpm 1 - 2rpm
Working Weight 318 kgs 319.1 kgs
Shipping Weight 623.7 kgs 625.3 kgs
Shipping Dimensions 915mm x 1372mm x 1219mm 915mm x 1372mm x 1219mm

ACCESSORIES

Tool Post
I.D. Tracker
Gear Box
Tool Post

Tool Post Part #: See Chart

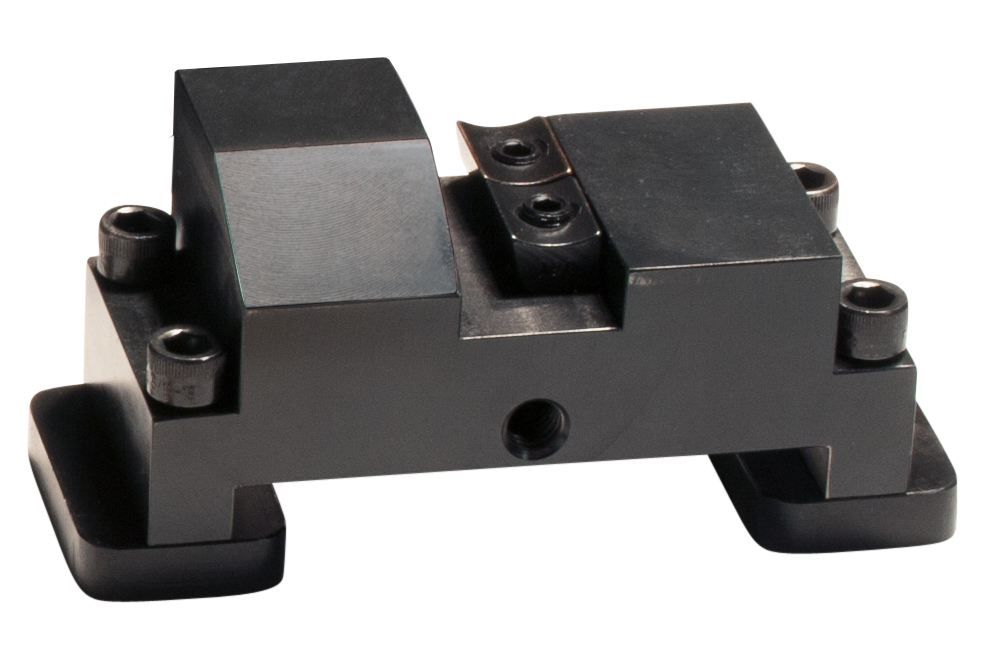

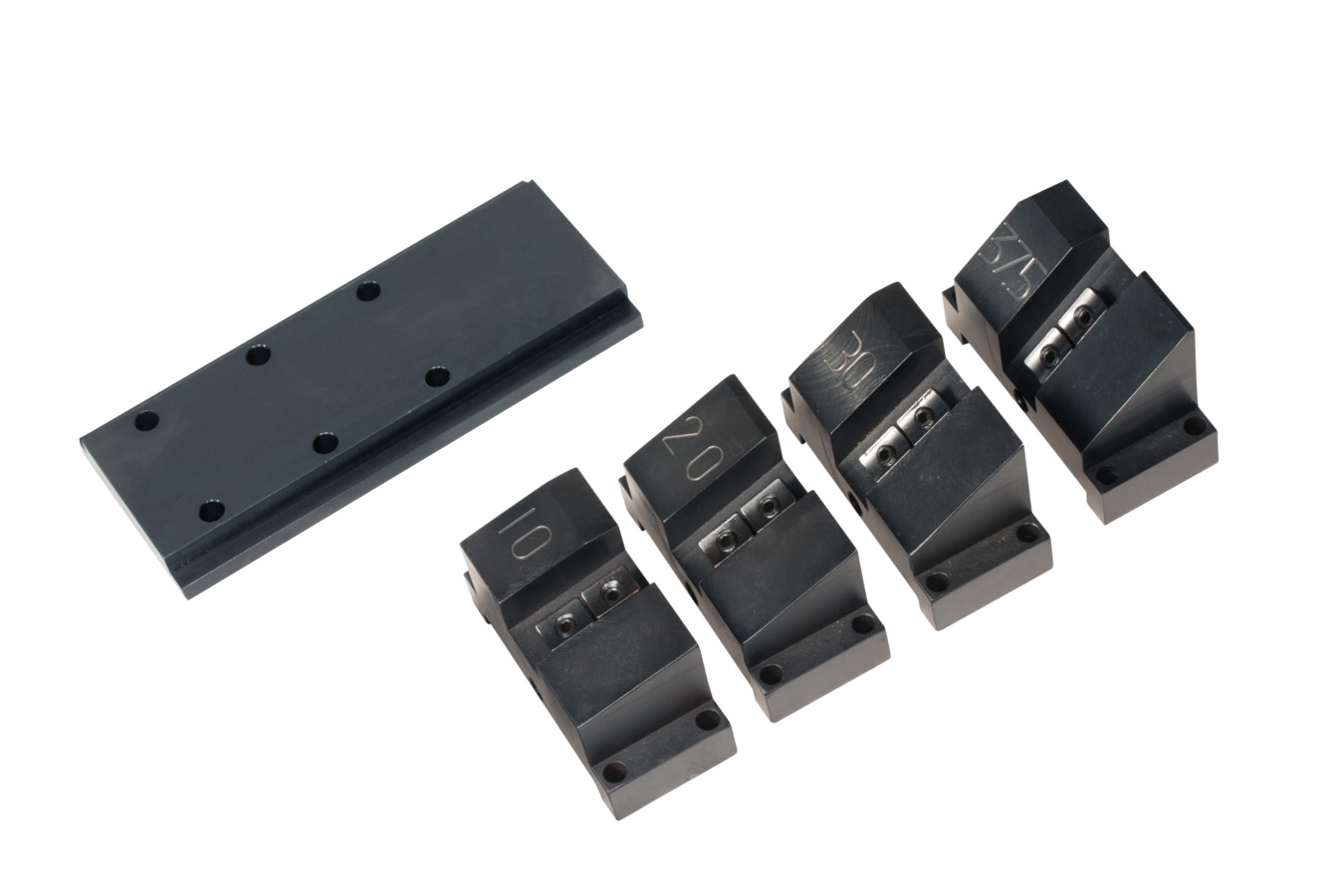

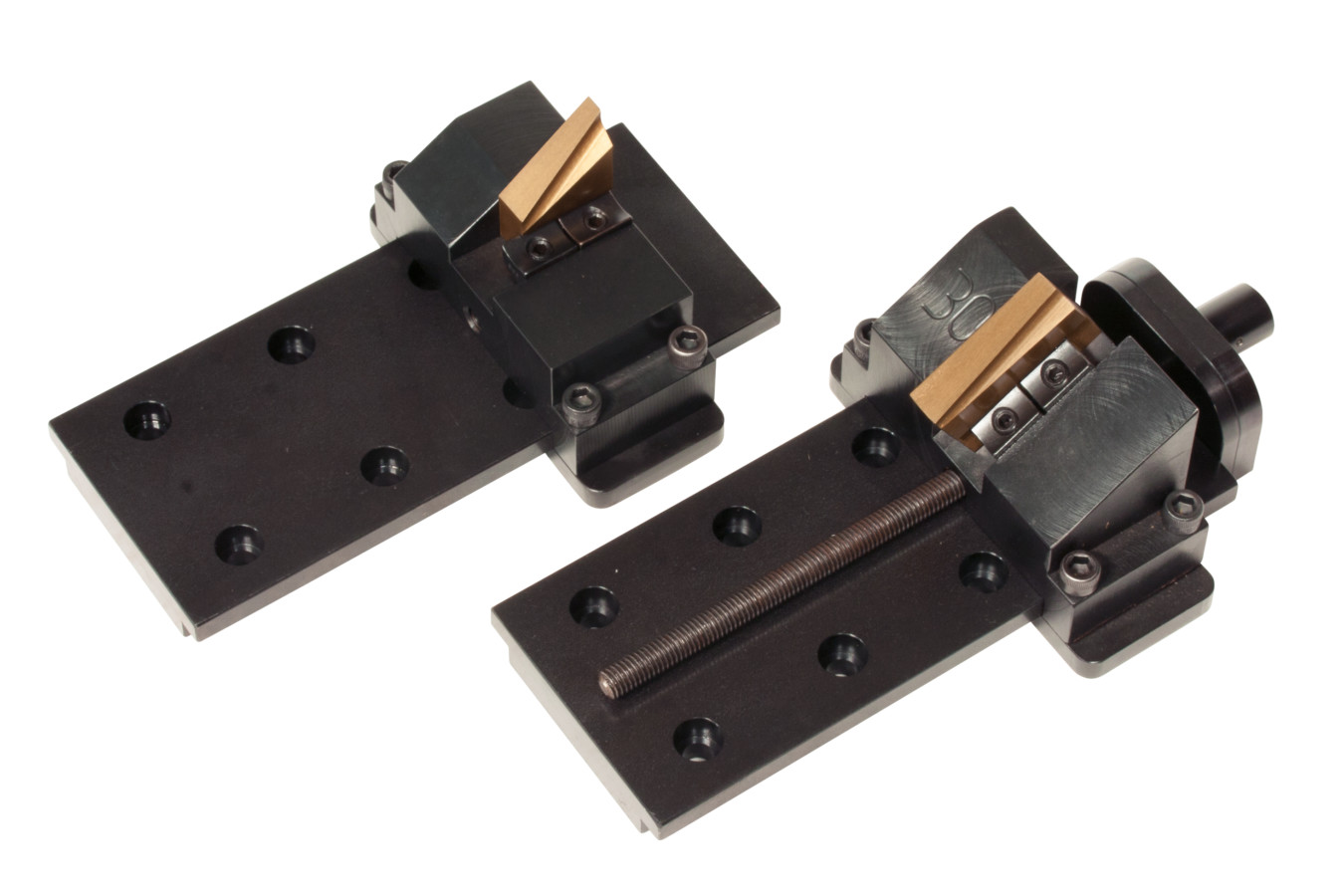

The Terminator MILLHOG kits are sold with 2 tool post bases and 1 straight tool post so that another tool post can be selected. In addition to a flat tool post, there are also angled tool posts that are most commonly used on heavy wall pipe (in excess of 2.0"/ 50.8mm) with a straight blade for rigidity. All tool posts ride on the tool post bases and are secured after final adjustments with 2 locks on either side of the base.

Includes

(1) Tool post (see chart for sizes)
(4) Clamp plate screw
(2) Clamp plate

Options Chart
Tool Post # Tool Post Angle Tool Post Base
T-71 0 T-36
T-72 10 T-36
T-73 20 T-36
T-74 30 T-36
T-75 37.5 T-46

I.D. Tracker

I.D. Tracking Attachment Part #: T-100

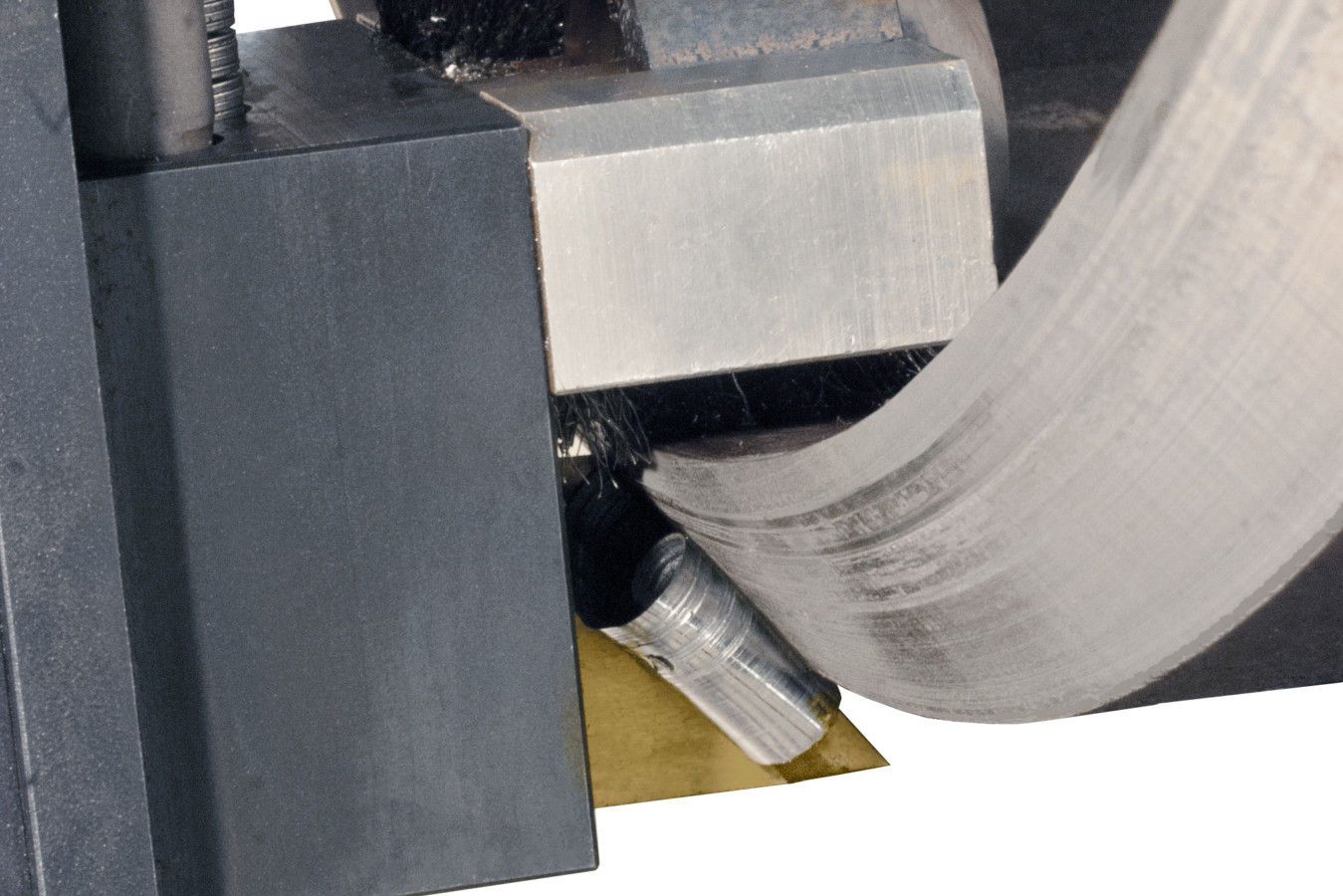

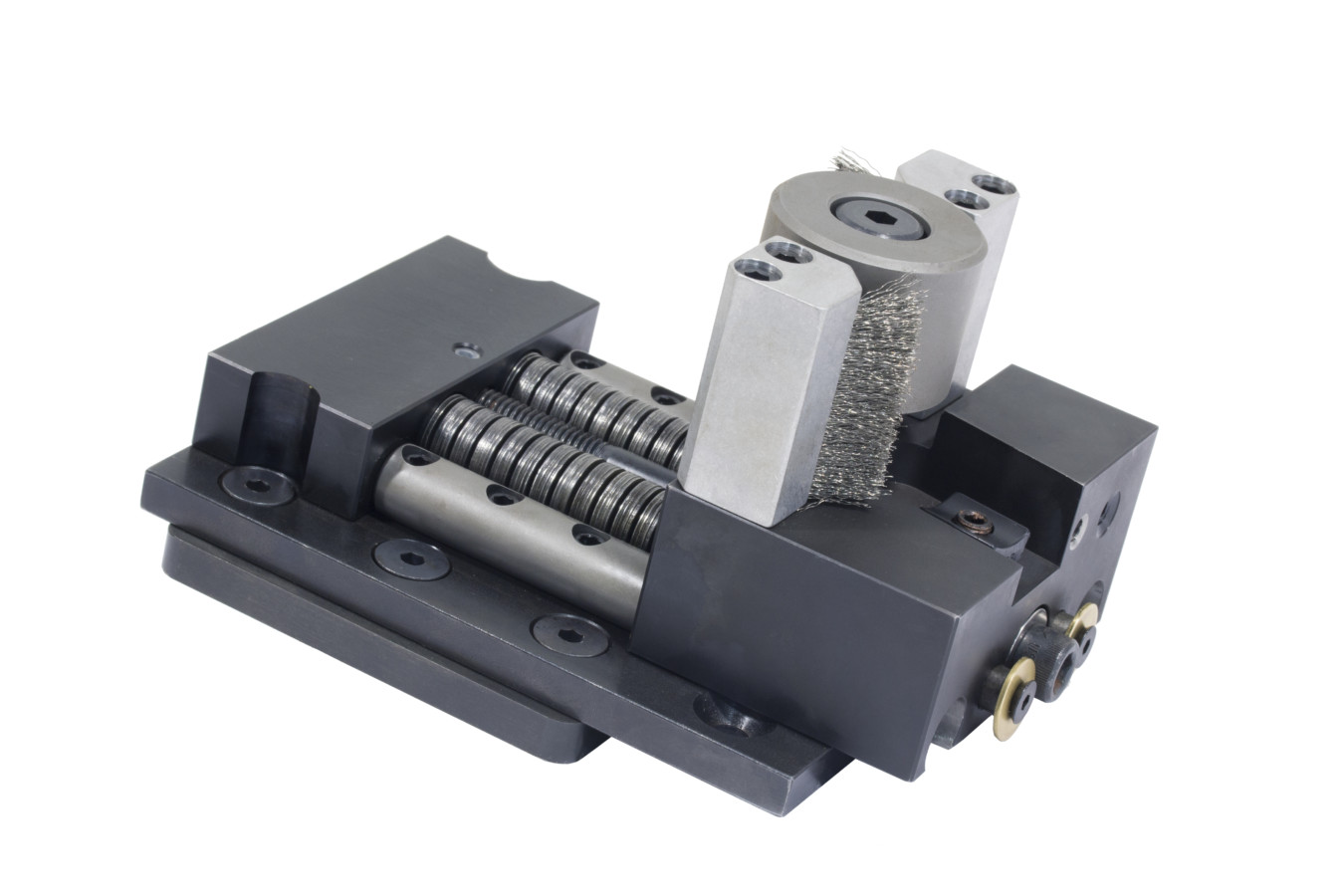

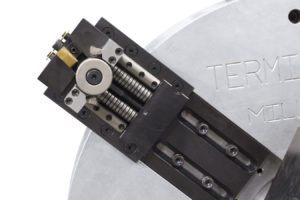

The I.D. Tracking Attachment for the Terminator MILLHOG is used for pipe that is out-of-round or has varying wall thickness. This attachment rides along the inside diameter and moves in/out as the cutterhead rotates, leaveing a consistent bevel, despite the pipes imperfect shape.

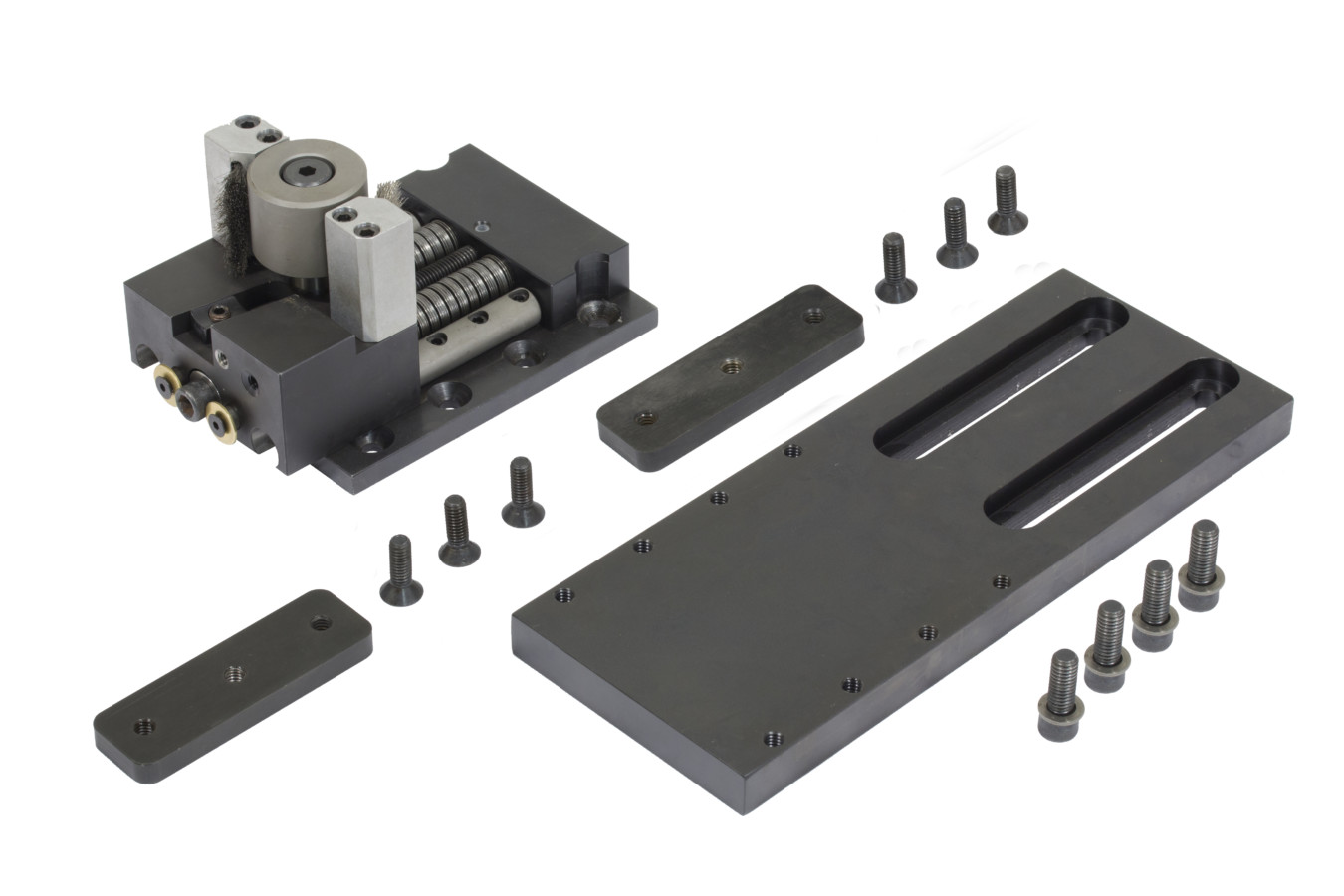

Includes

(1) I.D. tracking assembly
(2) Clamp plate
(6) Clamp plate screws
(1) Extended tool post base
(4) Tool post base screw

Gear Box

Torque Multiplier Gear Box Part #: T-101

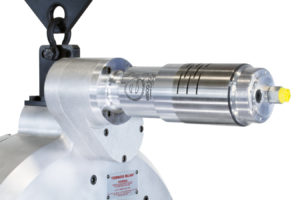

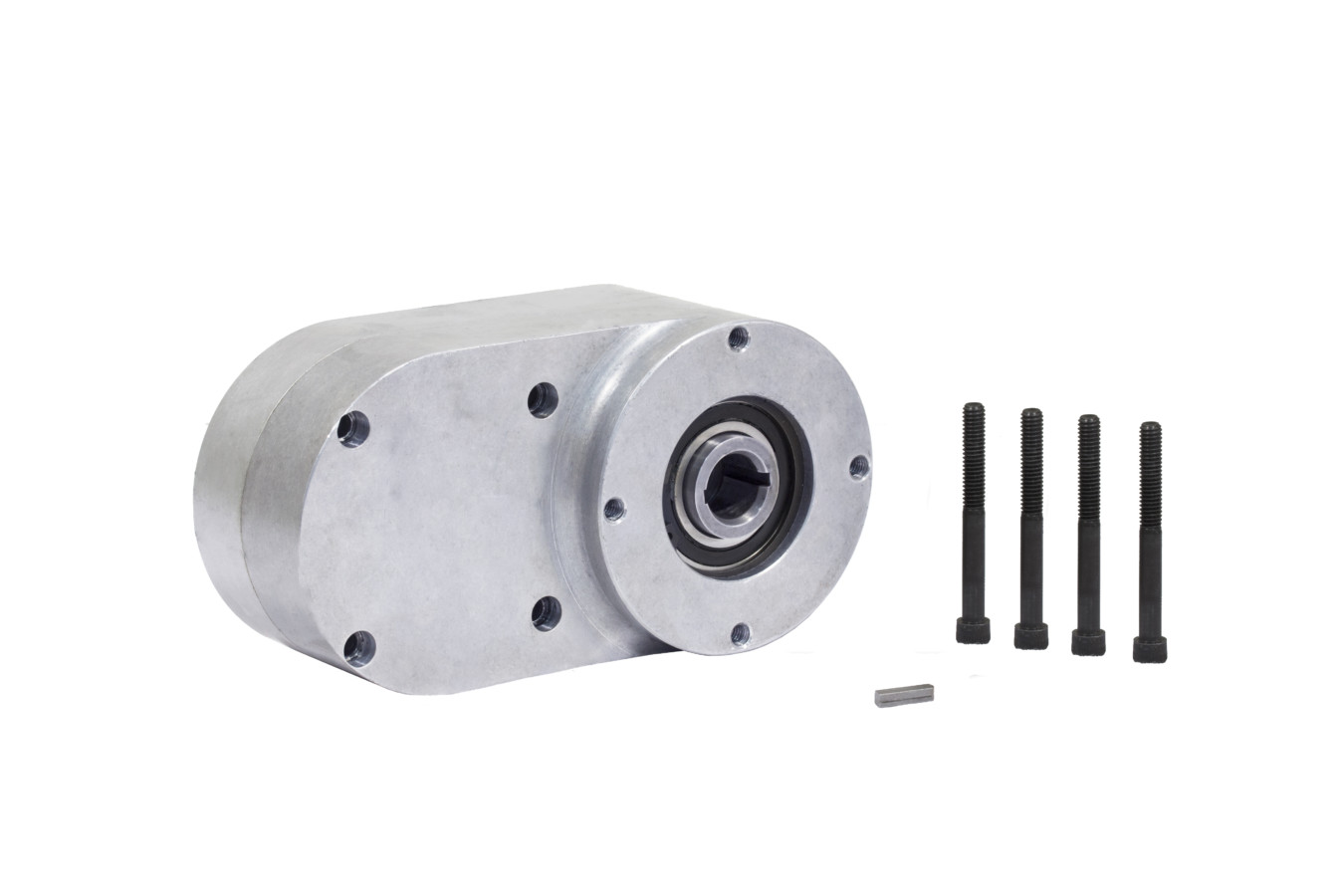

The Torque Multiplier Gear Box for the Terminator MILLHOG is designed to be easily installed with all motor options. When the Gear Box is attached, the cutterhead rpm is cut in half while torque is doubled, making it ideal for larger tube and pipe or tube and pipe with heavy wall thickness.

Includes

(1) Gear box assembly
(1) Motor key
(4) Mounting Screws

Photos

Video



RESOURCES

Charts

CLAMP RIB CHART - TERMINATOR MILLHOG
Wedge Clamp Rib Set I.D. Range (in) I.D. Range (mm)
Small Wedge T-01 8.625 - 10.750 219.1 - 273.1
T-01 & T-02 10.500 - 120750 266.7 - 323.9
T-01 & T-03 12.500 - 14.750 317.5 - 374.7
T-01 & T-04 14.500 - 16.750 368.3 - 425.5
T-01 & T-05 16.500 - 18.750 419.1 - 476.3
T-01 & T-219 Ext. & T-02 18.500 - 20.750 469.9 - 527.1
T-01 & T-219 Ext. & T-03 20.500 - 22.750 520.7 - 577.9
T-01 & T-219 Ext. & T-04 22.500 - 24.750 571.5 - 628.7
T-01 & T-219 Ext. & T-05 24.500 - 26.750 622.3 - 679.5
Large Wedge T-01 14.750 - 16.250 374.7 - 412.8
T-01 & T-02 16.000 - 18.500 406.4 - 469.9
T-01 & T-03 18.000 - 20.500 457.2 - 520.7
T-01 & T-04 20.000 - 22.500 508.0 - 571.5
T-01 & T-05 22.000 - 24.500 558.8 - 622.3
T-01 & T-06 24.000 - 26.500 609.6 - 673.1
T-01 & T-374 Ext. & T-02 26.000 - 28.500 660.4 - 723.9
T-01 & T-374 Ext. & T-03 28.000 - 30.500 711.2 - 774.7
T-01 & T-374 Ext. & T-04 30.000 - 32.500 762.0 - 825.5
T-01 & T-374 Ext. & T-05 32.000 - 34.500 812.8 - 876.3
T-01 & T-374 Ext. & T-06 34.000 - 36.500 863.6 - 927.1

Links

M-Series Blades

Documents

Brochure
