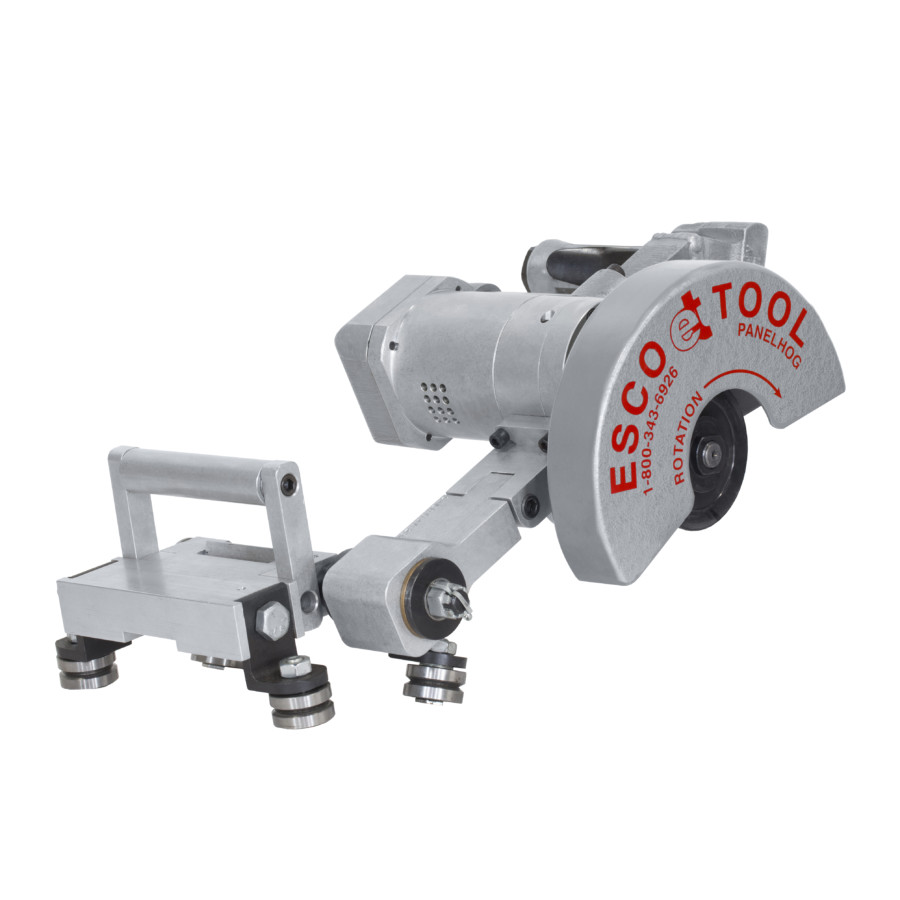

APS-438LRC

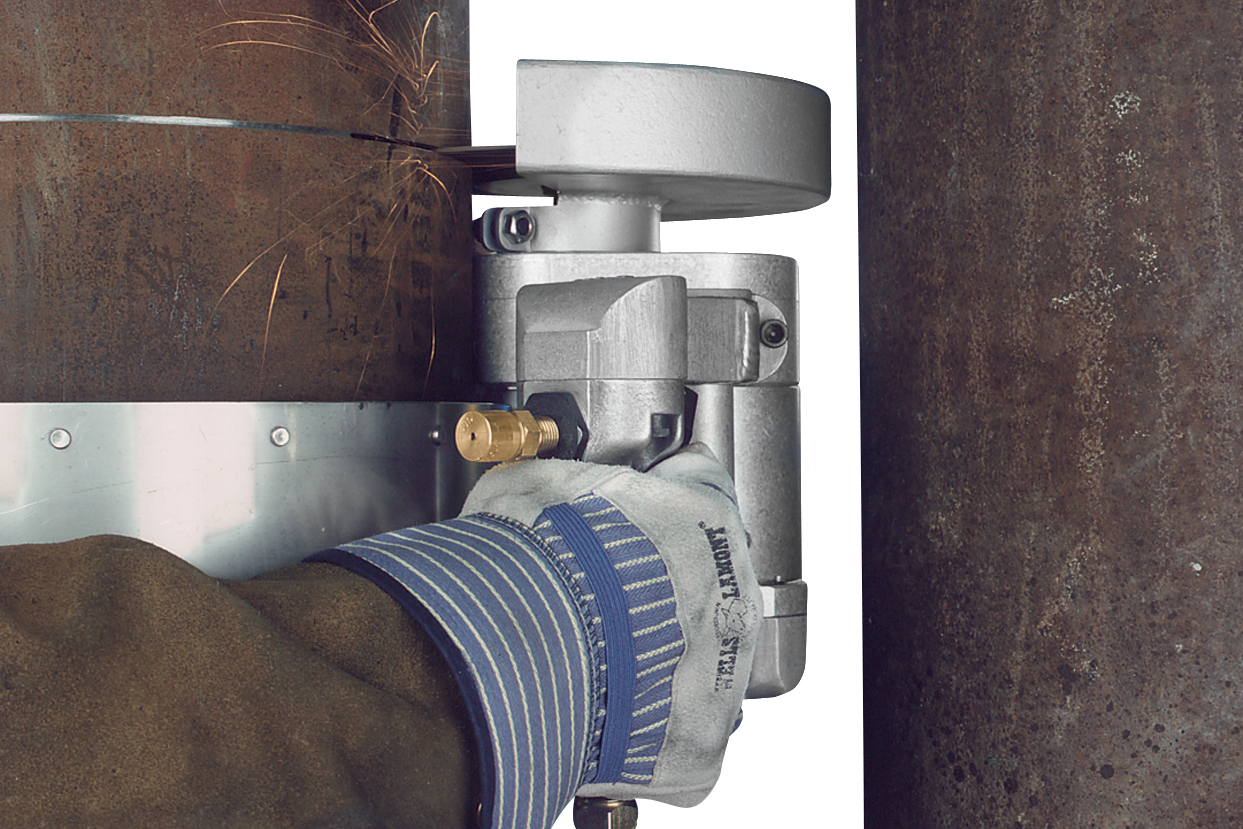

The APS-438 LRC is a highly compact air-powered saw designed for applications with tight space restrictions. Works exclusively with EscoWrap Tracks and requires only 8" of clearance around tube, pipe, tank, panel, or pillar cutting applications.
The APS-438 Low Radial Clearance (LRC) MILLHOG is a highly compact air-powered saw, designed for applications with tight space restrictions. This saw works exclusively with EscoWrap Tracks and requires only 8 inches of clearance around tube, pipe, tank, panel, or pillar cutting applications.
Like the Standard and Low Profile air-powered MILLHOG saws, the APS-438 LRC performs perfectly square cuts and leaves no heat-affected-zone. EscoWrap tracks securely clamp to the pipe O.D. and the trolley is attached to it for mounting the saw. This ultra-stable platform permits the operator to easily move the saw around the circumference to produce a clean, perfectly square cut.
Features of the APS-438LRC
Easy to set up and operate.
Provides clean, accurate, straight cuts with no heat-affect zone.
Ergonomic design provides optimum balance of speed and torque.
Powerful pneumatic motor.
Ideal for any application requiring straight and accurate cuts.
Wide variety of accessories make the APS-438 extremely versatile.
Cuts tough material with ease.
Specifications
| Specification | Value |
|---|---|
| Working Range | 6.0" I.D. – 60.0" O.D. |
| Blade Series | APS |
| Radial Clearance | 6" with blade fully plunged |
| Cut Depth | 2.375" |
| Motor | Pneumatic |
| Power | 3 hp |
| Air Pressure | 90 psi |
| Air Flow | 80 cfm |
| Blade Speed | 5050 rpm |
| Working Weight | 30 lbs |
| Shipping Weight | 70 lbs |
| Shipping Dimensions | 27" × 15" × 11" |
Available Kits
Standard
APS-200LRC(1) Saw chassis with trolley
(1) Wrench set (17 × 22 × 9/16")
(1) 3/4" hose with filter, oiler, and 1/2" coupler
(1) Carrying case
(1) Operating and maintenance instructions
Rental
Rental tool kits are setup and packaged to meet your specific job and application requirements. Your tool arrives ready to go with only the parts necessary for your job.
Learn About Rentals →Accessories

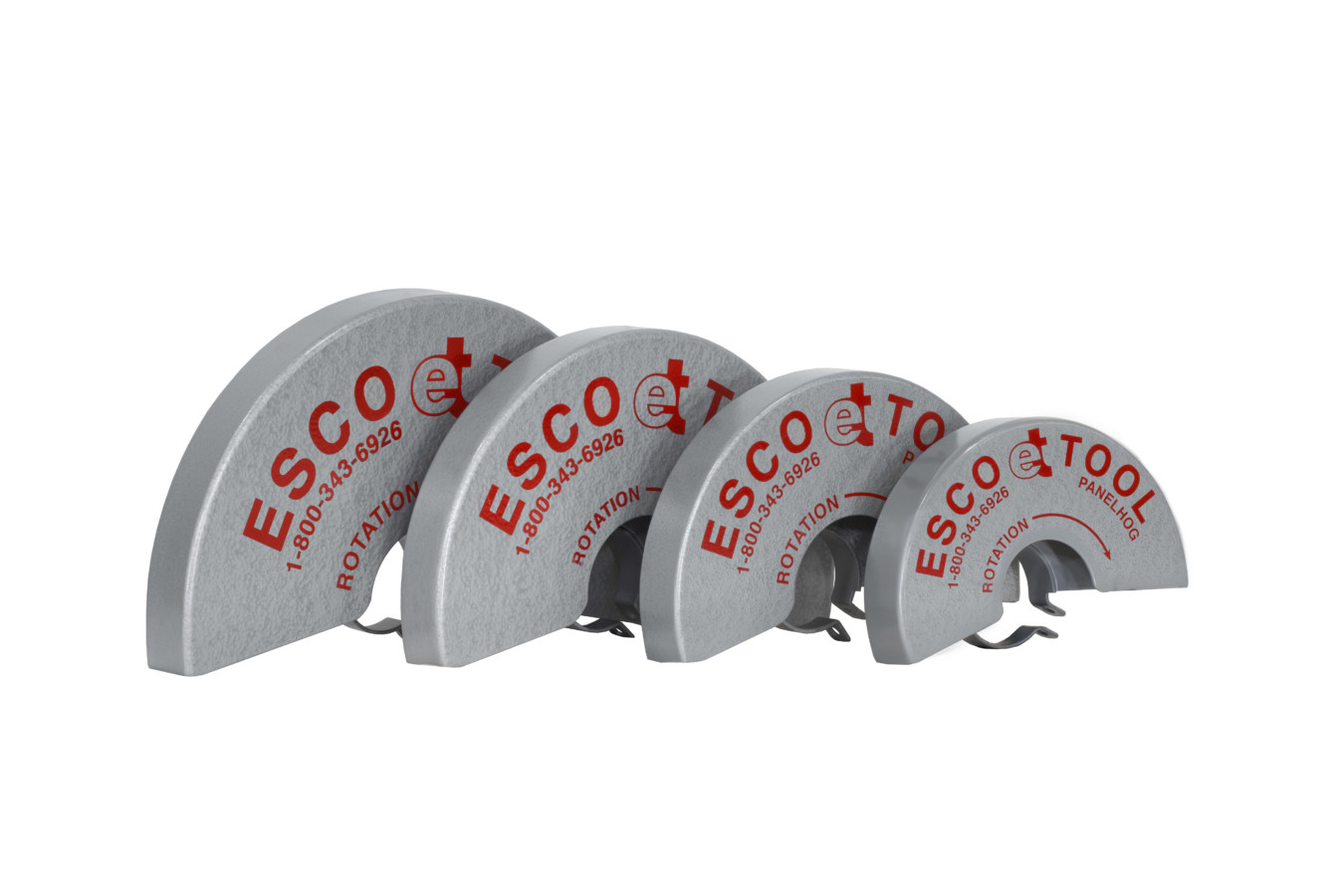

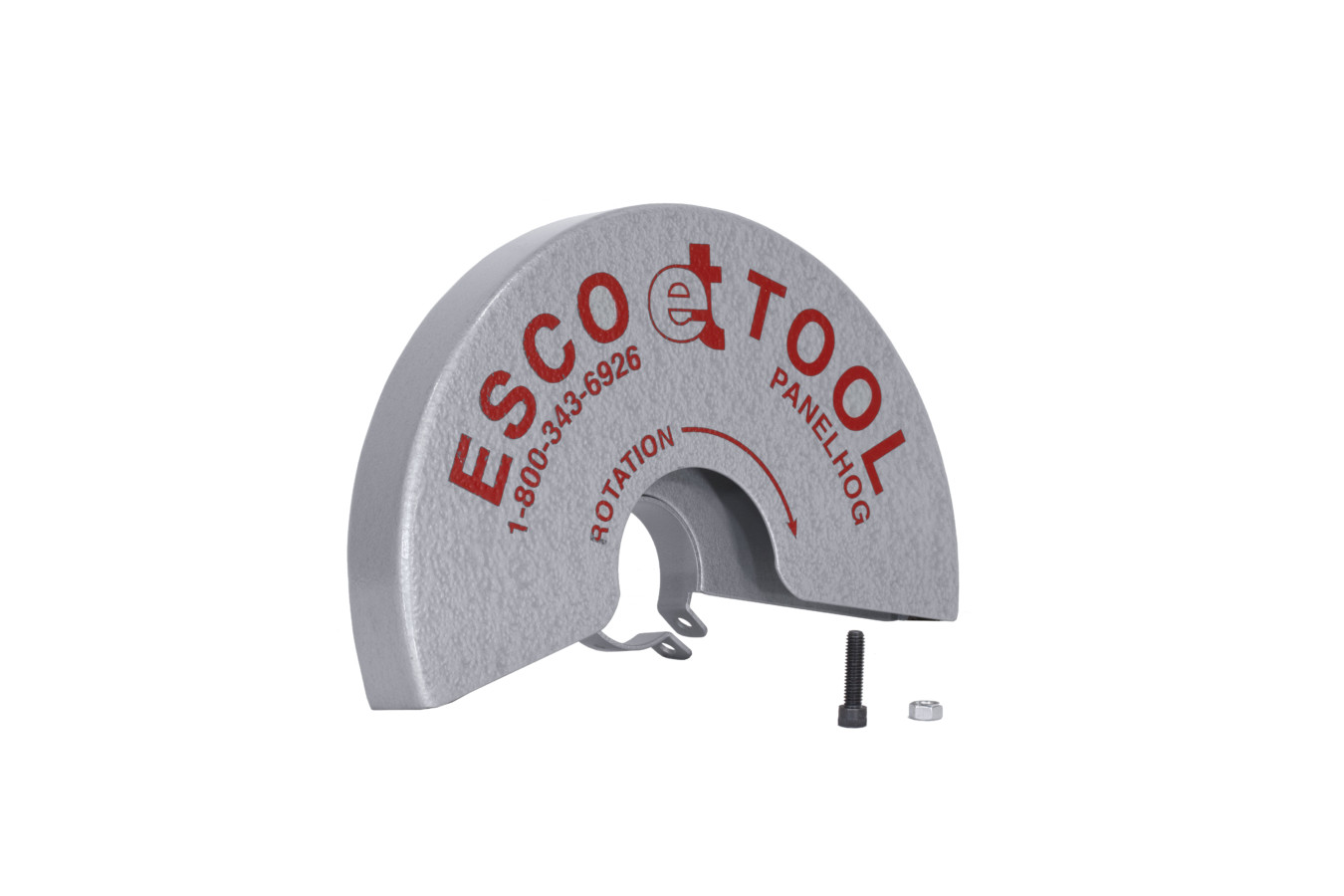

APS Guards — See size chart
Depending on the application, different sized guards can be necessary for safe operation of the APS saws. These guards come with mounting hardware and are installed in minutes. APS guards fit all models of APS saws and can be changed based on the cutting blade or space restrictions.

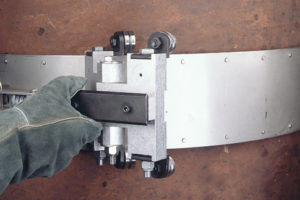

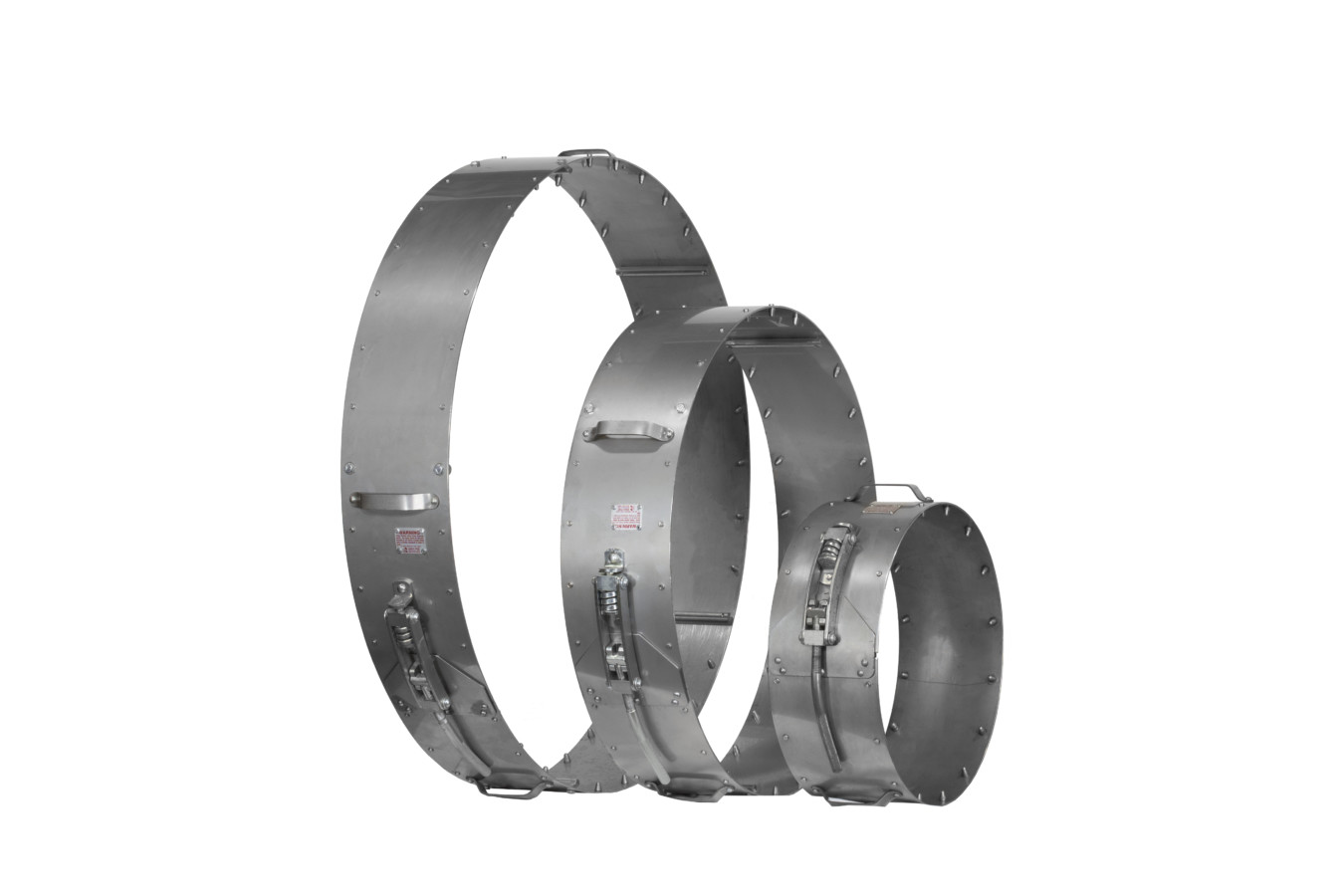

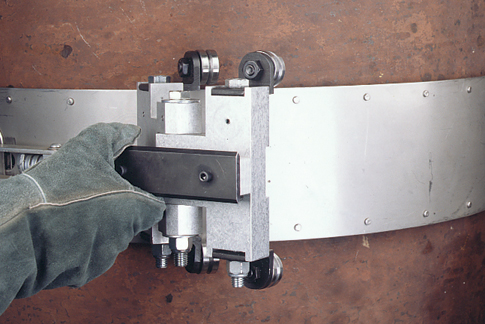

EscoWrap Track — See size chart

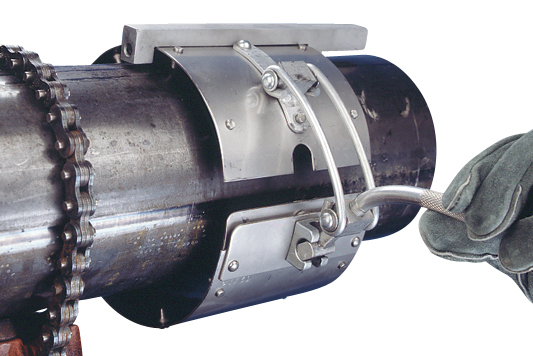

Wrap tracks are used with the APS-438 LRC or the Universal Pipe Trolley with the APS-438 and APS-438 LP on cylindrical structures such as tube, pipe, and tanks from 6.0" (1.8m) – 60.0" (18.3m). Track is easy to set up and can be adjusted/tightened for pipe with varying dimensions.
