When a waterwall tube fails, or you’re facing a panel replacement, you need tools that fits in tight spaces, makes clean & square cuts with no heat-affected zone, through membrane and overlay, and produces quality bevels and fit up fast. This guide to the best tube beveling tools shows you exactly which tools work for boiler tube repair and maintenance and how to handle the tough materials that slow everyone else down.
The Boiler Tube Challenge: Space, Speed, and Tough Materials
Boiler tube work isn’t like beveling pipe on a bench. You’re working in confined spaces between scaffolding and tubes spaced as close as you can imagine. Often overhead or in awkward positions. The materials—T-11, T-22, P-91, and especially Inconel overlays—destroy standard cutting tools in seconds. And every hour the boiler is down, it costs money.
The equipment that works needs to be:
- Narrow enough to fit between membrane waterwall tubes
- Powerful enough to handle high-chrome alloys and overlay
- Reliable enough to run continuously without breaking down
- Fast enough to keep your schedule on track

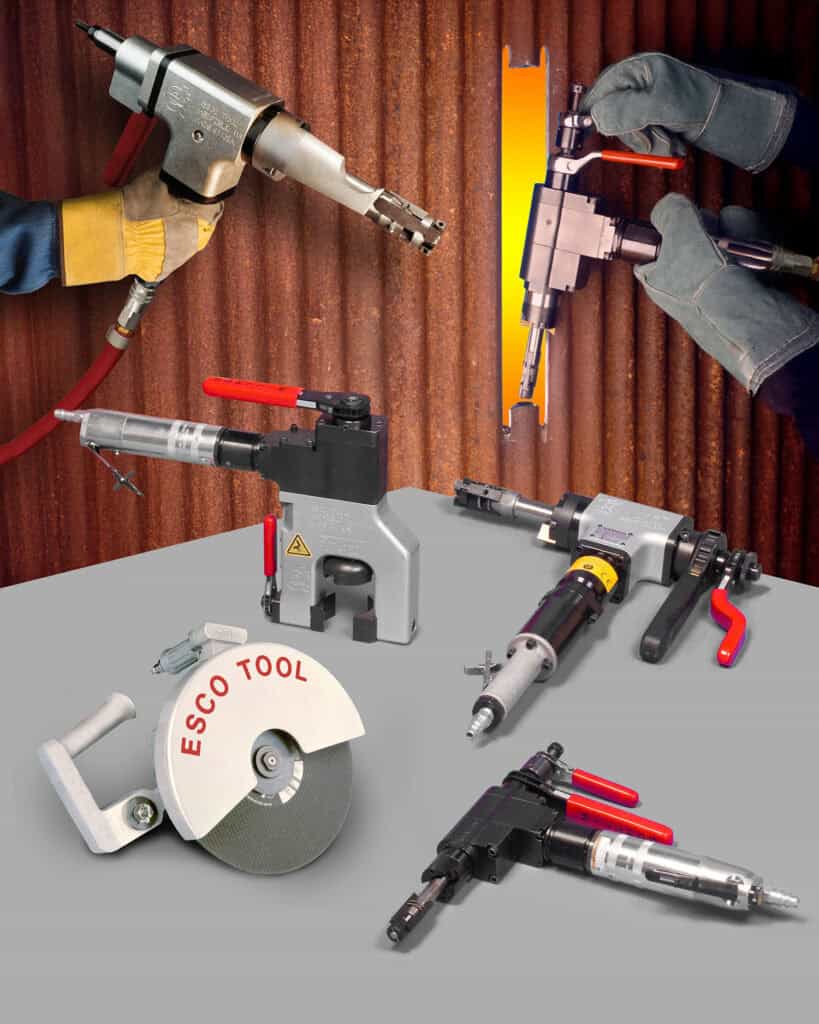

Boiler Tube Beveling Tools by Application: What Works Where
Waterwall Single Tube Replacement (Dutchman Repairs)
Ground MILLHOG (0.5″ ID to 2.25″ OD)
When you need to replace a single tube in a waterwall panel, the Ground MILLHOG is purpose-built for the job. At only 1.5″ wide, it fits between membrane tubes where nothing else will go.
- Width: 1.5″ (38.1mm)—fits between standard waterwall tube spacing
- Mounting: ID clamping with right-angle drive for confined access
- Motor Options: Pneumatic (standard), Electric (high torque), Battery (cord-free), or Pneumatic Air Clamp (fastest cycle time)
- Special Capability: Removes membrane and overlay from between tubes simultaneously
- Clamp System: Patented pull-push mechanism—releases without hammering, parts won’t fall into tubes
Best For: Dutchman repairs, single tube waterwall work, confined space beveling
Motor Selection Guide:
- Standard Pneumatic: Works on all materials, including stainless, good all-around choice
- Air Clamp: Clamps and releases instantly—use when you’re doing multiple tubes and cycle time matters
- Electric: Best torque control for overlay and membrane removal
- Battery: No hoses in tight spaces, excellent for overlay work, 15-30 minute runtime
General Boiler Tube Work (Economizers, Evaporators, Small Headers)
Mongoose MILLHOG (0.625″ ID to 3.0″ OD)
The workhorse for general boiler tube beveling. Wider than the Ground at 2.25″, but more versatile with simultaneous bevel, face, and bore capability.
- Width: 2.25″ (57.15mm)
- Bearings: Dual opposed tapered roller bearings—handles tough alloys without breaking down
- Tool Capacity: Bevel, face, and bore in one setup
- Motor Options: Standard Pneumatic, Air Clamp, High-Torque Slow Speed, Electric, or Battery
- Special Feature: High-torque slow-speed pneumatic option specifically designed for overlay removal
Best For: Economizer tubes, evaporator sections, general tube beveling where you have slightly more room than waterwall work
Wart MILLHOG (0.75″ ID to 4.5″ OD)
Fits 2.625″ openings—the standard Dutchman repair access size. Sealed construction works in any orientation. This is the workhorse for your outage.
- Width: 2.625″ (66.67mm)—designed for Dutchman repair openings
- Construction: Dual opposed tapered roller bearings inside a sealed design to protect bearings from debris.
- Orientation: Works in any position—horizontal, vertical, overhead
- Applications: Pendant tubes, mud & steam drum, horizontal runs, standard Dutchman repairs
- Cutting Bits: Uses the strong M-Series cutting bits with more base material to plow through interrupted cuts.
Best For: Penthouse, pendant tube sections, mud & steam drum, and situations where sealed construction matters, standard access openings
When You Need OD Mounting

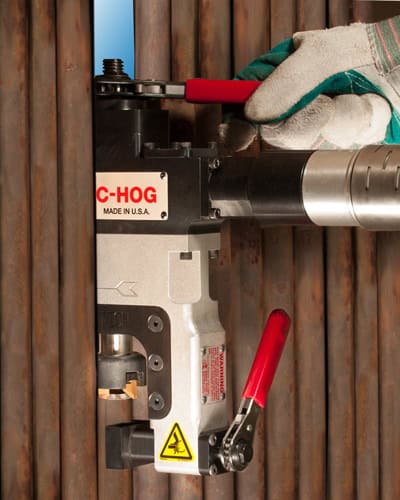

C-Hog MILLHOG (0.50″ to 3.0″ OD)
Sometimes, the inside diameter is very small or blocked by the Millhog mandrel, and you need to bore the inside. The C-Hog mounts on the outside diameter, with a large clamp surface that minimizes vibration and provides plenty of access to the inside of the tube.
- Width: 1.75″ (44.45mm)—narrow enough for waterwall and penthouse work
- Clamp: Large contact area rigidly holds tool, reduces chatter on high-chrome materials
- Boring: No ID mandrel obstructing—allows large boring tools
- Right Angle Drive Option: Motor mounts in four positions for extreme access restrictions
Best For: Heavy wall small bore, blocked/restricted inside diameter access, standard boring operations, high-chrome tubes where chatter is a problem
Tube Stub and Header Prep
Wart MILLHOG (0.75″ ID to 4.5″ OD) & Mini MILLHOG (1.25″ ID to 6.625″ OD)
When you’re replacing tubes, the Wart & Mini removes old tube stub welds and preps the header for the new tube installation.
- Range: Wart 0.75” ID to 4.5” OD & Mini 1.25″ ID to 6.625″ OD
- Drive: Heavy-duty spur gears for tube stub removal work
- Applications: Strength weld removal, header preparation, overlay/cladding removal, standard beveling
- Motors: Pneumatic or electric
Best For: Header repairs during tube replacement projects, removing old tube stubs before welding new tubes
Cutting Inconel Overlay: The Right Way
Inconel overlay is common on boiler tubes specifically because it resists heat and corrosion. Those same properties make it brutally difficult to cut. Here’s how to do it without destroying your blades.
The Work Hardening Problem
Inconel work-hardens when compressed by a tool bit without being cut cleanly. This creates a hardened zone 0.005″ to 0.015″ thick that becomes progressively harder to penetrate. Trying to break through this hardened layer destroys blades fast.
The Solution: Aggressive Feed Technique
Equipment Setup:
- Use high-torque motor (electric or battery for tubes, hydraulic for larger pipe)
- Reduce RPM—lower speed with more torque is critical
- Use only ONE blade—multiple blades can’t feed aggressively enough and can cause more friction
- Esco Tool’s Hard Lube coated blades can help improve performance.
- Esco Tool’s Razorback carbide cutting bit works well. Specifically, it works well on Inconel 600 & 625, and has proven results as a solution for stainless steel 347.
Cutting Technique:
- Feed Aggressively: Advance more than 0.015″ per revolution to stay beneath the work-hardened zone, which equates to a constant motion with the Millhog feed wrench.
- Maintain Steady Feed: Never stop feeding—intermittent feed forces you to break through hardened material repeatedly
- Keep Continuous Chip: You should see a solid chip coming off the blade at all times
- Exit Quickly: As soon as the bevel is complete, reverse the Millhog feed wrench immediately. Letting the blade rotate without advancing will work-harden the surface and ruin the blade
- Do not start or stop with the cutting bit on the work.
If a Blade Fails: STOP. Grind away the work-hardened zone before attempting another cut, or you’ll destroy every subsequent blade you try.
Recommended Equipment for Inconel:
For tight spaces when options are limited:
- Mongoose MILLHOG with high-torque slow-speed pneumatic motor
- Ground MILLHOG with high-torque slow-speed pneumatic motor
- C-Hog MILLHOG with high-torque slow-speed pneumatic motor
When space is available to you:
- Put a MILLHOG machine within the low or middle of its range to provide you the most robust and powerful machine to remove inconel.
- Cohog clamshell split frame, Wart Millhog, Prepzilla Millhog, Commander Millhog, Terminator Millhog are the most robust portable beveling machines available to you at a moment’s notice.
- Each MILLHOG machine mentioned above has the ability to completely cut and bevel the hardest tube and pipe materials in the world.
Panel Cutting and Membrane Removal
Before you can bevel and replace tubes, you need clean, square cuts through the membrane and overlay. Grinding away “hack-saw” cuts wastes time and creates fit up problems. The right cutting equipment makes tubes ready to bevel and fit up immediately.
APS Air Powered Boiler Saws
APS-438 Standard
- Cut Depth: 4.375″ with 12″ blade
- Track System: EscoTrack tack-welds or quick-clamps to panels. Any length panel
- Motor: 3 hp pneumatic, 5,050 rpm on 90 psi shop air (80 cfm)
- Key Benefit: Clean cuts with no heat-affected zone—ready to bevel without grinding
APS-438LP Low Profile
- Clearance: Only 7.5″ required—designed for pendant tubes in tight overhead spaces
- Cut Depth: 3.375″ with 10″ blade. Easy to control depth and depth stops available.
Track Options:
- Standard Track: Straight 5-foot sections, tack-welded or quick-clamped (track connectors available)
- Flex Track: Conforms to warped panels and curved surfaces
- Vertical Track Attachment: Converts a horizontal setup for vertical membrane removal between tubes
- Membrane Removal Bracket: Positions saw for cutting membrane between tubes using 0.250″ or 0.375″ blades
Blade Selection:
- Standard cut-off blades for carbon steel, T-11, T-22, P-11, P91
- Inconel-rated blades for overlay and high-chrome materials
- Membrane removal blades (0.250″ or 0.375″) for cutting between tubes
Material-Specific Guide
| Material | Motor Type | Blade Coating | Key Technique |
| Carbon Steel | Standard pneumatic | TiN coating fine, Hard Lube improves performance | Standard feed rates work |
| T-11, T-22 (Low Chrome) | Standard pneumatic | Hard Lube coating fine, Razorback Carbide improves performance | Normal technique |
| T-91, P-91 (9% Chrome) | High-torque/slow-speed pneumatic motor | Hard Lube coating fine, Razorback Carbide improves performance | Slower speeds, aggressive feed |
| Inconel Overlay (600 & 625) | High-torque/slow-speed pneumatic motor | Hard Lube coating fine, Razorback Carbide improves performance | Aggressive continuous feed, single blade only |
| Stainless/Super Duplex | High-torque/slow-speed pneumatic motor | Hard Lube coating fine, Razorback Carbide improves performance | Controlled feed, avoid work hardening |
Common Mistakes That Cost Time
- Wrong Motor for Material: Standard pneumatic on Inconel = destroyed blades and no progress. Esco has a new and improved pneumatic motor option available.
- TiN Blades on Inconel: TiN coating can’t handle the heat—you need Hard Lube or Razorback carbide blade
- Intermittent Feed on Work-Hardening Materials: Start-stop feeding forces you through hardened zones repeatedly
- Multiple Blades on Inconel: You won’t have enough power to feed aggressively, which will ultimately create more friction that leads to work hardening
- Continuing After Blade Failure: Trying more blades on a work-hardened surface just destroys them all.
- Not Enough Spare Blades: Running out mid-job while waiting for delivery is expensive.
Equipment Rental for Tube Failures and Outages
Most facilities don’t keep complete boiler tube equipment inventories year-round. Rental gives you exactly what you need for the job at hand.
When Rental Makes Sense:
- Emergency Tube Failures: Get equipment fast without capital approval processes
- Scheduled Outages: Scale equipment to your scope without over-investing
- Seasonal Peak Demand: Handle spring & fall boiler outages without year-round storage costs
- Special Materials: Access specialized equipment for Inconel or high-chrome work you don’t do often
Typical Rental Packages:
Single Tube Waterwall Repair:
- Ground MILLHOG or Mongoose MILLHOG
- Hog Tie Tube Alignment Clamp for fit up after cutting and beveling is complete
- TiN and Hard Lube blade assortment
- Membrane removal tooling if needed
Waterwall Panel Replacement:
- Ground, Mongoose, or Wart MILLHOG (multiple units for parallel work)
- APS-438 saw with track and membrane bracket
- Hog-Tie Tube Alignment Clamp for fit up after cutting and beveling is complete
- Complete blade inventory for material type
General Boiler Tube Maintenance:
- Mongoose and Wart MILLHOG
- Mini MILLHOG for header work
- APS-438 saw with track and membrane bracket
- Hog-Tie Tube Alignment Clamp for fit up after cutting and beveling is complete
- Blade selection for your material mix
Emergency Rental Support:
Unexpected tube failure? We provide emergency rental equipment with expedited delivery to minimize downtime.
Quick Equipment Selector
| Your Situation | Best Equipment | Why |
| Waterwall single tube (Dutchman) | Ground MILLHOG | Only 1.5″ wide, fits between membrane tubes |
| Multiple waterwall tubes | Ground, Mongoose or Wart MILLHOG (depending on tube size) | Fastest cycle time between tubes |
| Economizer/evaporator tubes | Ground, Mongoose or Wart MILLHOG (depending on tube size) | More power, bevel/face/bore capability |
| Pendant tubes, overhead work | Ground, Mongoose or Wart MILLHOG (depending on tube size) | Sealed construction, works any orientation |
| Blocked ID access | Cohog Clamshell Split Frame or C-Hog MILLHOG | OD mounting, no ID access needed |
| Inconel overlay removal | Ground, Mongoose or Wart MILLHOG (depending on tube size) with Razorback Carbide blade | Torque control for aggressive feed technique |
| Panel cutting/membrane removal | APS-438 Saw | Clean cuts, no HAZ, ready to bevel |
| Header tube stub removal | Wart Millhog OR Mini MILLHOG (tube size dependant) | Removes stubs, preps header for new tube |
Get the Right Equipment for Your Next Job
Boiler tube failures don’t wait for convenient timing. Whether you’re facing an emergency repair or planning a major outage, having equipment that fits your access constraints and handles your materials makes the difference between getting back online quickly and costly delays.
Need Boiler Tube Beveling Equipment?
Our application engineers can recommend the right equipment for your specific tube work—whether it’s a single Dutchman repair or complete panel replacement. Available for emergency rental or purchase.
