DICTATOR II
4-1/2” I.D. to 24” O.D. 114.3mm I.D. to 609.6mm O.D.
The Dictator II MILLHOG

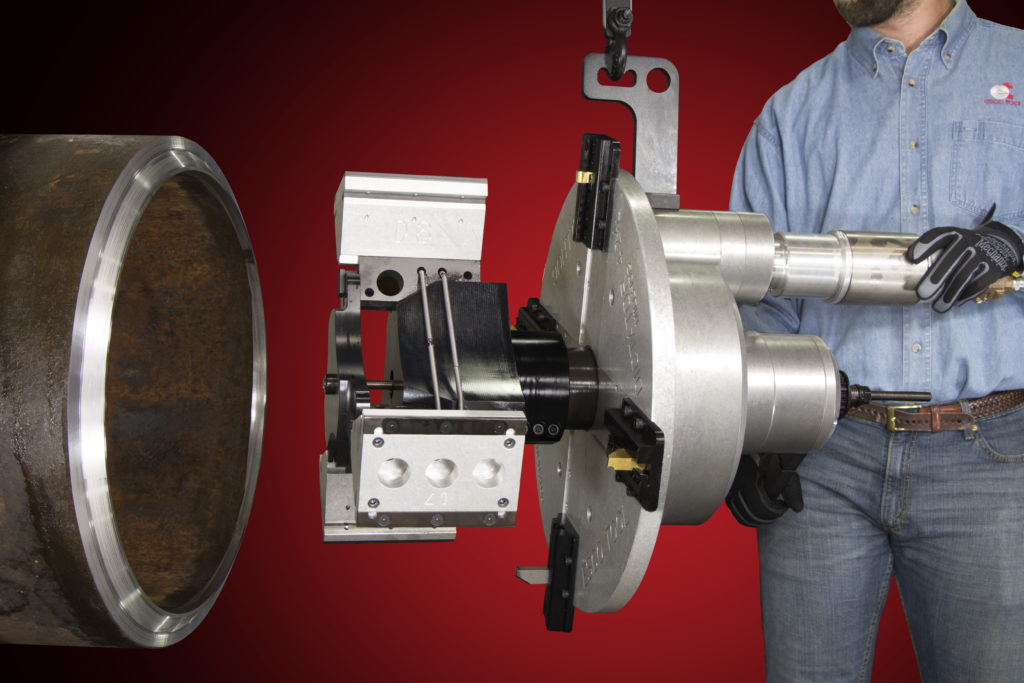

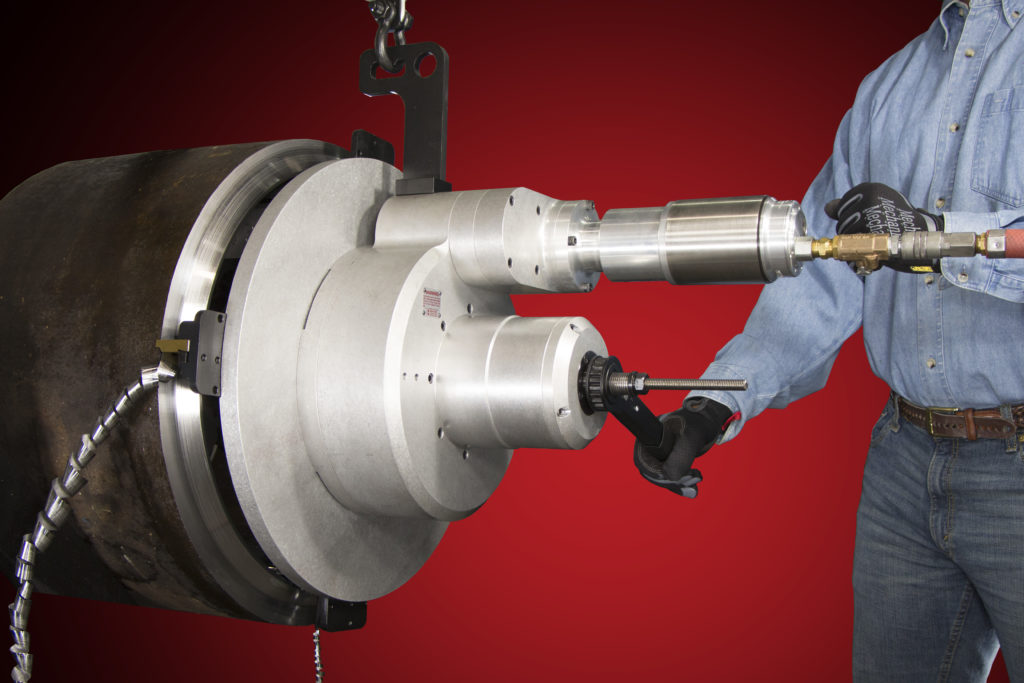

The Dictator II MILLHOG performs any degree of bevel on pipe from 4.5” (114.3mm) I.D. to 24” (609.6mm) O.D. up to 2” (50.8mm) wall, without cutting fluid while assuring maximum cutter blade life. It has wide self-centering clamps that produce a superior clamping force for chatter-free bevels on all types of highly alloyed pipe. As an upgrade to the original dictator, the Dictator II uses a wedge and actuator combined with an expanded cutterhead to cover its large range. In addition to the enlarged cutting and clamping hardware, the Dictator II kit comes with our patented Safety Spring Hanger, a multi-position goose-neck hoist, and a powder-coated stand for easy maneuverability and storage.
See It In Action
Key Features
-
One mandrel/wedge and 8 sets of clamps cover the entire range
-
Wide clamps spread contact for superior clamping force and rigidity
-
Three powerful motor choices that are easily switched and interchangeable with the commander pneumatic, electric and hydraulic
-
Available gear box lowers rpm and doubles the torque at the cutter blade
-
The EscoLock cutter blade holding system holds the blades securely in place to produce a thick chip for fast pipe beveling
-
Bevels super duplex and heavy alloyed pipe
-
Patented Safety Spring hanger and multi-position goose-neck hoist ensure accurate alignment when clamping
-
Sturdy, powder-coated stand for easy storage
-
Low maintenance dual opposed tapered roller bearing design provide years of trouble free service
-
Fully portable for on-site use
Motor Options
Pneumatic
Pneumatic with Gear Box
Hydraulic
Hydraulic with Gear Box
Electric with Gear Box
Pneumatic
Pneumatic with Gear Box
Hydraulic
Hydraulic with Gear Box
Electric with Gear Box
Gallery
Pneumatic Gearbox
Pneumatic
Electric Gearbox
Hydraulic Gearbox
Hydraulic Gearbox
