1.25″ I.D. – 2.5″ O.D.
31.8mm I.D. – 63.5mm O.D.
MILLHOG SERIES:
FIN

FIN

Red-MILLHOG_Transp-MILL-(1)

I.D. CLAMPING
Fin Fan removal machine

1.25” O.D. to 2.5” O.D.
31.8mm O.D. to 63.5mm O.D.

Fin Millhog

1.25” O.D. - 2.5” O.D.
31.8mm O.D. - 63.5mm O.D.

Pneumatic
Pneumatic

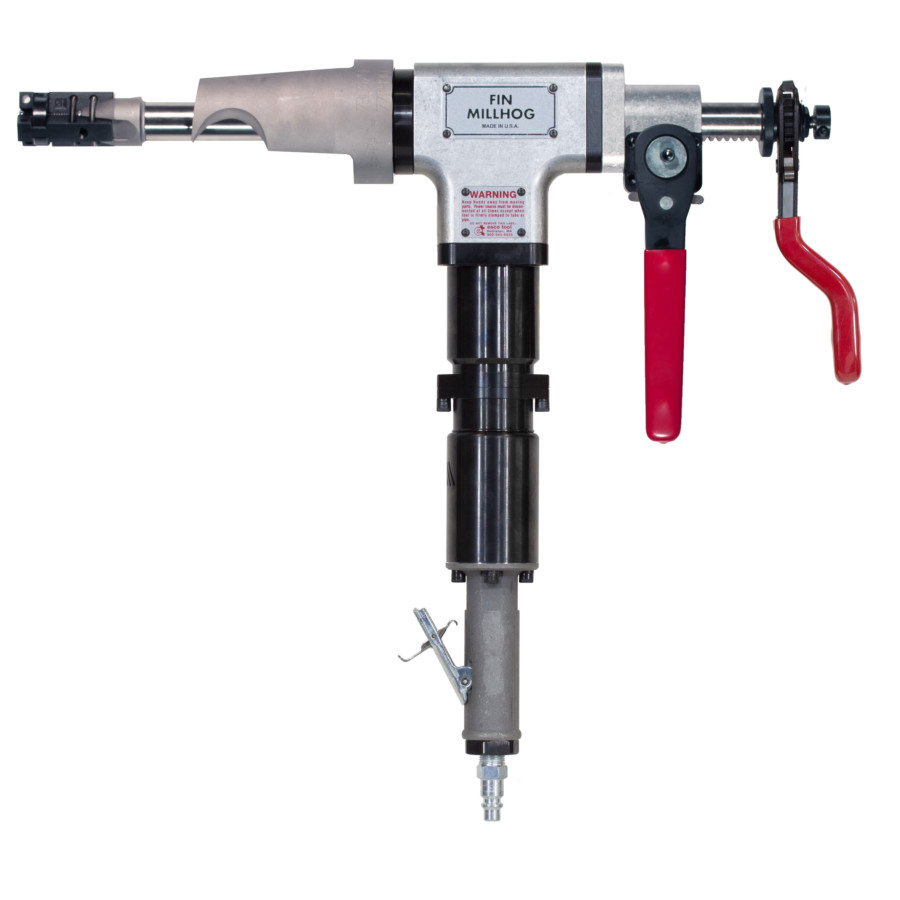

Fin MILLHOG

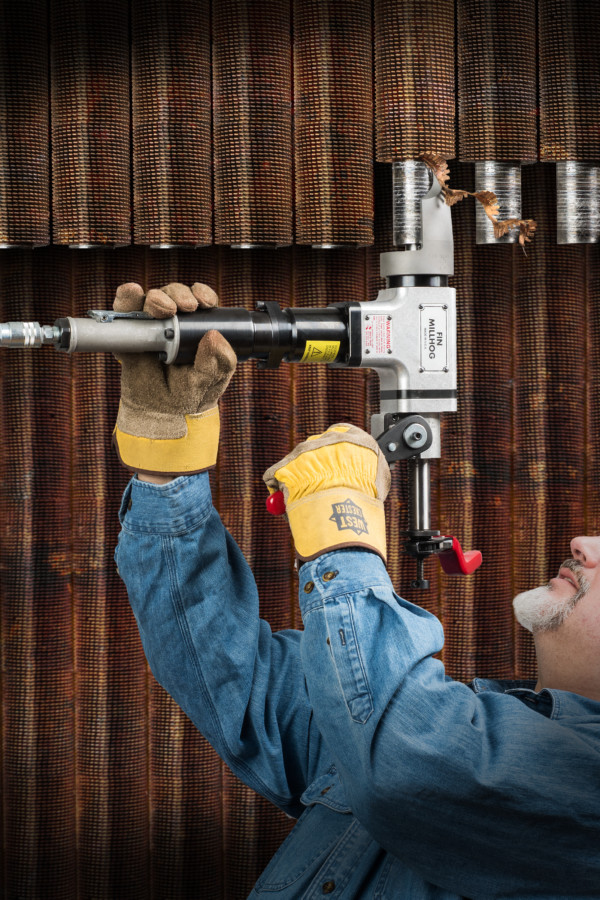

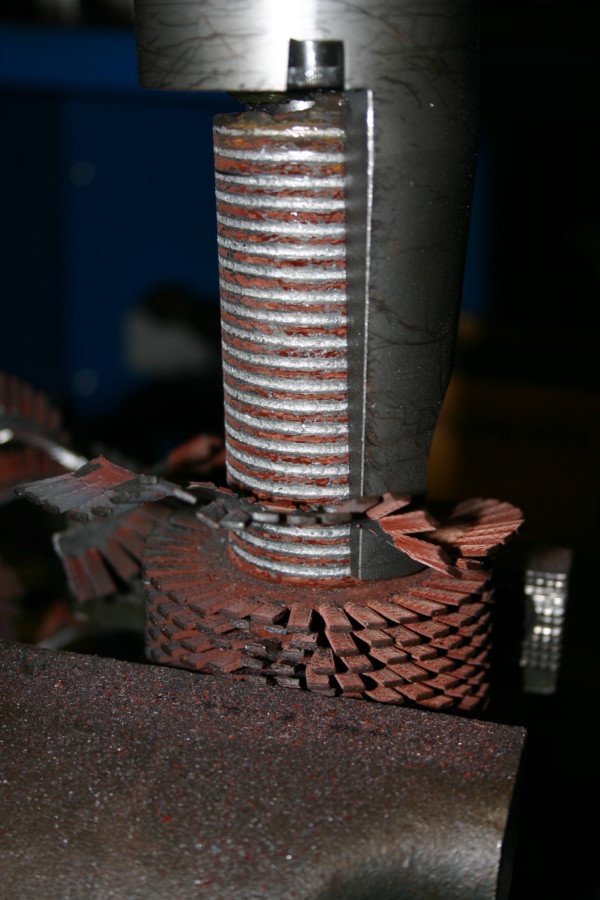

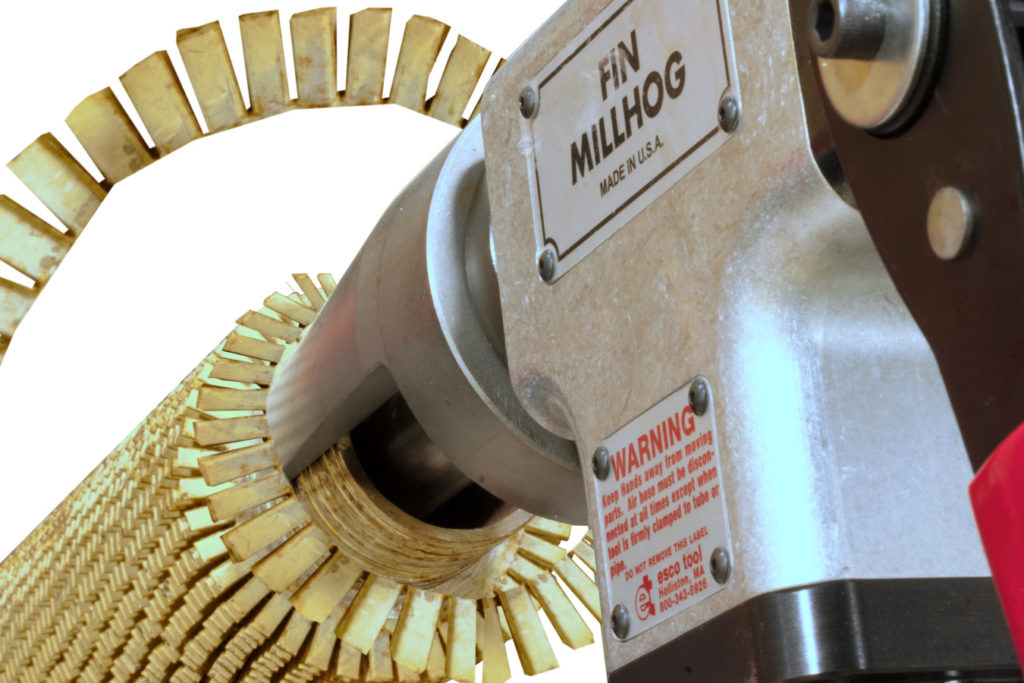

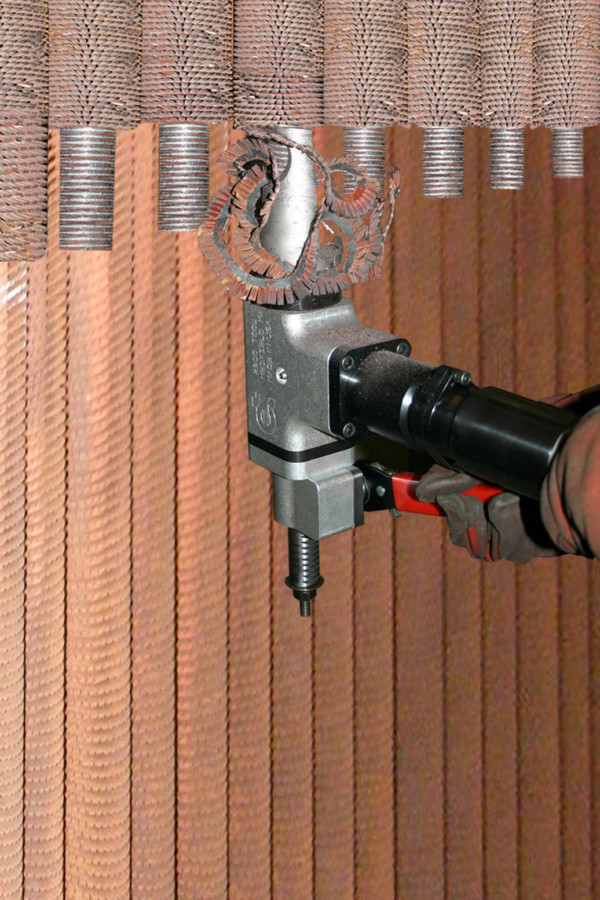

The Fin MILLHOG tube fin removal machine clamps to the tube I.D. and features a patented cutter blade which separates fin from tube O.D. Forget about chipping hammers and grinders! This machine removes 4" / 101.6mm of fin from a tube O.D. in under 4 seconds. Once the tool is attached to the tube I.D. and the power is activated, the operator advances the rotating cutter and engages the spirally wound fin until the desired amount of fin is removed. The quick action of the rack and pinion feed allows the operator to disengage the feed and clear separated fin from the cutter quickly.

Available Kits

Complete

Fin MILLHOG Complete Kit #: FH-200

(1) Motor and gear drive assembly
(1) Feed mechanism
(1) Fin Hog mandrel
(1) Draw Rod Assembly
(1) Fin removal head (specify size and direction)
(1) Clamp rib set choice of (H-01 - H-04)
(1) 1/2" hose w/ filter, oiler & 3/8" coupler
(1) Carrying case
(1) Operating and maintenance inst.

Rental

Rental tool kits are setup and packaged to meet your specific job/application. This makes it so your tool is ready to go and only has parts necessary for your job, avoiding confusion and minimizing shipping costs.

  • Features
  • Specs
  • Accessories
  • Photos
  • Videos
  • Resources

FEATURES

  • Removes 4.0" / 101.6mm depth of fin from the tube O.D. in 4 seconds
  • Standard working range of 1-1/4" - 2-1/2" / 31.8mm - 63.5mm
  • Heavy duty rack and pinion feed mechanism assures smooth operation for greater fin removal control
  • Rigidly clamps to the tube I.D.
  • Works in any orientation
  • Easy to operate with no reaction torque to the operator
  • No cutting fluid required
  • Eliminates the need for chipping and grinding

SPECS

IMPERIAL
METRIC
IMPERIAL
Working Range 1.25" - 2.5"
Max Cut Depth 4.0"
Motor Pneumatic
1.25 hp
90 psi
40 cfm
Cutterhead Speed 98 rpm
Housing Width 2.625"
Housing Length 20"
Working Weight 22 lbs
Shipping Weight 55 lbs
Shipping Dimensions 24" x 20" x 6"
METRIC
Working Range 31.8mm - 63.5mm
Max Cut Depth 101.6mm
Motor Pneumatic
932 W
6.2 bar
990 Lt/min
Cutterhead Speed 98 rpm
Housing Width 66.7mm
Housing Length 508mm
Working Weight 10 kgs
Shipping Weight 25 kgs
Shipping Dimensions 610mm x 508mm x 152mm

Photos

Videos

Fin MILLHOG Demo

Fin MILLHOG direction change instructional

RESOURCES

Charts

CLAMP RIB CHART - FIN MILLHOG
Mandrel Clamp Rib Set I.D. Range (in) I.D. Range (mm)
Optional 1.0" (25.4mm) H-0 1.000 - 1.300 25.4 - 33.0
Standard 1.25" (31.8mm) H-01 1.250 - 1.600 31.8 - 40.6
H-02 1.525 - 1.925 38.8 - 48.9
FIN HEAD SIZE CHART
Mandrel Head sizes Tube O.D. Direction
Fin Heads fit both 1.0" (25.4mm) and 1.25" (31.8mm) Mandrels 1.25" 1.25" Right & Left
1.5" 1.5" Right & Left
1.75" 1.75" Right & Left
2.0" 2.0" Right & Left
2.25" 2.25" Right & Left
2.5" 2.5" Right & Left

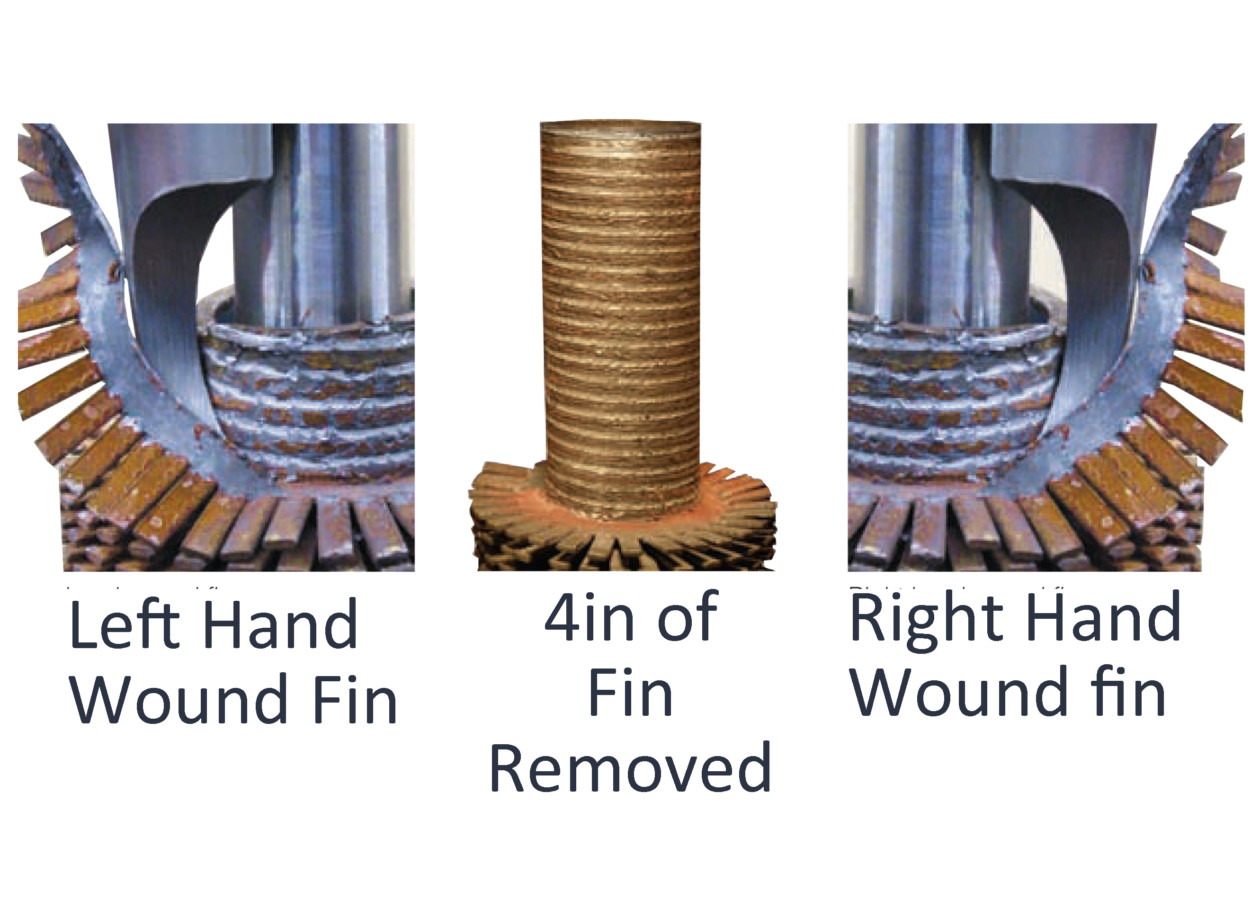

FIN DIRECTION DIAGRAM
